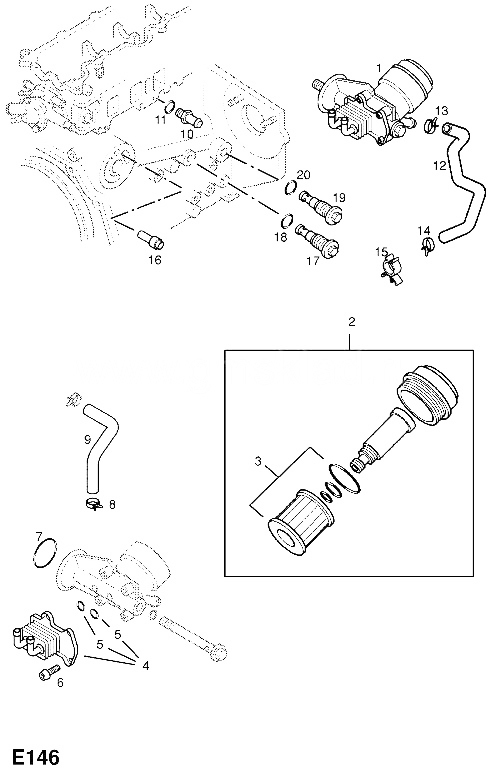

ТРУБКИ И ШЛАНГИ МАСЛООХЛАДИТЕЛЯ E - ДВИГАТЕЛЬ И МУФТА СЦЕПЛЕНИЯ OPEL ASTRA-G
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 8 | 2094008 | Y17DT[LR6] | 1 | ||
| 8 | 2094008 | Z17DTL[LRB] | 1 | ||
| 8 | 5650925 | Y17DT[LR6] | 2 | ||
| 8 | 0650885 | Z17DTL[LRB] | 2 | ||
| 9 | (0650858) | Y17DT[LR6] | (E) -0281532 | 1 | |
| 9 | 5650705 | Y17DT[LR6] | (E) 0281533- | 1 | |
| 9 | 5650708 | Z17DTL[LRB] | 1 | ||
| 10 | 0607266 | Y17DT[LR6] | (E) -0303227 | 1 | |
| 10 | 0607267 | Y17DT[LR6] | (E) 0303228-1636057 | 1 | |
| 10 | 0607267 | Z17DTL[LRB] | (E) -1636057 | 1 | |
| 10 | (0607271) | (E) 1636058- | 1 | ||
| 11 | 4312895 | 1 | |||
| 12 | (5650921) | Y17DT[LR6] | (E) -0419837 | 1 | |
| 12 | 5650706 | Y17DT[LR6] | (E) 0419838- | 1 | |
| 12 | 5650706 | Z17DTL[LRB] | 1 | ||
| 13 | 0860872 | Y17DT[LR6] | 1 | ||
| 13 | 5860871 | Z17DTL[LRB] | 0 | ||
| 14 | (0860889) | (E) -0133246 | 1 | ||
| 14 | 5860871 | (E) 0133247- | 0 | ||
| 14 | 5860871 | Z17DTL[LRB] | 0 | ||
| 15 | 0656303 | Y17DT[LR6] | 1 | ||
| 16 | 0651782 | 1 | |||
| 17 | 0646604 | 1 | |||
| 18 | 0646912 | - | 1 | ||
| 19 | (0646606) | 1 | |||
| 20 | 0646911 | - | 1 |
