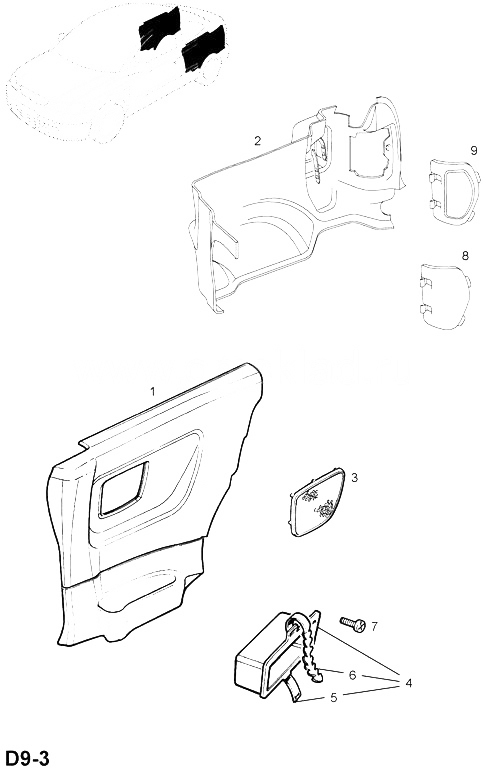

ОТДЕЛКА ЗАДНЕЙ ЧЕТВЕРТИ (ПРОДОЛЖ.) - КУПЕ (F07) D - ВНУТРЕННЯЯ ОТДЕЛКА КУЗОВА OPEL ASTRA-G
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | 2332084 | 1 | |||
| 1 | (2330085) | 1 | |||
| 1 | 2332083 | (C) -2B999999 | 1 | ||
| 1 | 2330086 | (C) -2B999999 | 1 | ||
| 1 | 7332109 | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7332136 | (C) 4B002802- | 1 | ||
| 1 | (7330110) | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7330136 | (C) 4B002802- | 1 | ||
| 1 | 2332082 | (C) -3B999999 | 1 | ||
| 1 | 2330087 | (C) -3B999999 | 1 | ||
| 1 | 7332131 | (C) 4B000001- | 1 | ||
| 1 | 7330131 | (C) 4B000001- | 1 | ||
| 1 | 2332086 | (C) -YB999999 | 1 | ||
| 1 | 2332102 | (C) 1B000001-3B999999 | 1 | ||
| 1 | 2330089 | (C) -YB999999 | 1 | ||
| 1 | 2330105 | (C) 1B000001-3B999999 | 1 | ||
| 1 | 7332132 | (C) 4B000001- | 1 | ||
| 1 | 7330132 | (C) 4B000001- | 1 | ||
| 1 | 2332085 | (C) -YB999999 | 1 | ||
| 1 | 2332103 | (C) 1B000001-2B999999 | 1 | ||
| 1 | 2330088 | (C) -YB999999 | 1 | ||
| 1 | 2330106 | (C) 1B000001-2B999999 | 1 | ||
| 1 | (7332110) | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7332137 | (C) 4B002802- | 1 | ||
| 1 | 7330111 | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7330137 | (C) 4B002802- | 1 | ||
| 1 | 2332087 | (C) -2B999999 | 1 | ||
| 1 | 2330090 | (C) -2B999999 | 1 | ||
| 1 | 7332102 | (C) 3B002906-3B999999 | 1 | ||
| 1 | 7330109 | (C) 3B002906-3B999999 | 1 | ||
| 1 | (7332111) | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7332138 | (C) 4B002802-4B999999 | 1 | ||
| 1 | (7330112) | (C) 3B000001-4B002801 | 1 | ||
| 1 | 7330138 | (C) 4B002802-4B999999 | 1 | ||
| 1 | 7332095 | 1 | |||
| 1 | 7330100 | 1 | |||
| 1 | 2332104 | BLUE LNE | (C) -4B999999 | 1 | |
| 1 | 2330107 | BLUE LNE | (C) -4B999999 | 1 | |
| 2 | 2338250 | 1 | |||
| 2 | 2338249 | 1 | |||
| 3 | 7332052 | 1 | |||
| 3 | 7330065 | 1 | |||
| 4 | 2346222 | 1 | |||
| 5 | 2346223 | - | 1 | ||
| 6 | 2346224 | - | 1 | ||
| 7 | 2035605 | 2 | |||
| 8 | 2346142 | 1 | |||
| 9 | 2346143 | 1 |
