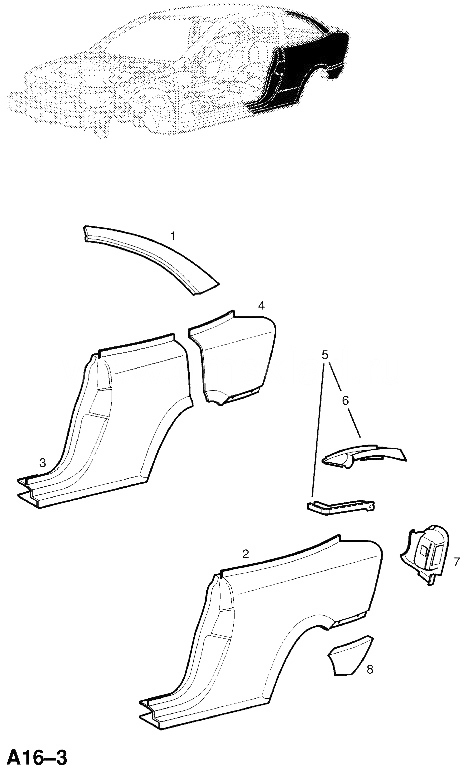

НАРУЖНАЯ ПАНЕЛЬ ЗАДНЕЙ ЧЕТВЕРТИ (ПРОДОЛЖ.) - КУПЕ (F07) A - КАРКАС И ПАНЕЛИ КУЗОВА OPEL ASTRA-G
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | (0183196) | 1 | |||
| 1 | (0183195) | 1 | |||
| 2 | (0183159) | (C) -1B021200 | 1 | ||
| 2 | (5183087) | (C) 1B021201-2B003410 | 1 | ||
| 2 | 5183134 | (C) 2B003411- | 1 | ||
| 2 | (0183142) | (C) -1B021200 | 1 | ||
| 2 | (5183086) | (C) 1B021201-2B003410 | 1 | ||
| 2 | 5183133 | (C) 2B003411- | 1 | ||
| 3 | (0183141) | - | (C) -1B021200 | 1 | |
| 3 | (5183088) | - | (C) 1B021201-2B003410 | 1 | |
| 3 | 5183130 | - | (C) 2B003411- | 1 | |
| 3 | (0183161) | - | (C) -1B021200 | 1 | |
| 3 | (5183089) | - | (C) 1B021201-2B003410 | 1 | |
| 3 | 5183129 | - | (C) 2B003411- | 1 | |
| 4 | (0183162) | - | (C) -1B021200 | 1 | |
| 4 | (5183090) | - | (C) 1B021201-2B003410 | 1 | |
| 4 | 5183132 | - | (C) 2B003411- | 1 | |
| 4 | (0183163) | - | (C) -1B021200 | 1 | |
| 4 | (5183091) | - | (C) 1B021201-2B003410 | 1 | |
| 4 | (5183131) | - | (C) 2B003411- | 1 | |
| 5 | 0183724 | - | 1 | ||
| 5 | 0183725 | - | 1 | ||
| 6 | 5183623 | -- | 1 | ||
| 6 | 5183622 | -- | 1 | ||
| 7 | 5183676 | 1 | |||
| 7 | 5183675 | 1 | |||
| 8 | 0183189 | 1 | |||
| 8 | 0183168 | 1 |
