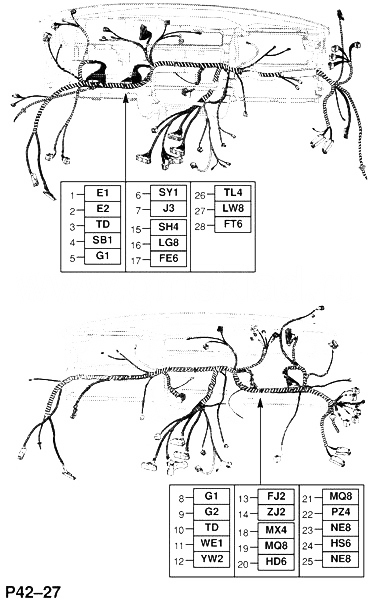

ЖГУТ ПРОВОДОВ ПРИБОРНОГО ЩИТКА (ПРОДОЛЖ.) - ДЛЯ ЯПОНИИ -X1999999 P - ЭЛЕКТРИЧЕСКИЙ OPEL OMEGA-B
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | 1297247 | C R1000001-R1999999 | 1 | ||
| 2 | 1297248 | C R1000001-R1999999 | 1 | ||
| 3 | 1297961 | C S1000001-T1000766 | 1 | ||
| 4 | 1298706 | C T1000767-V1000868 | 1 | ||
| 5 | 1299679 | C V1000869-V1999999 | 1 | ||
| 6 | 1298707 | C T1000767-V1000868 | 1 | ||
| 7 | 1299682 | C V1000869-V1999999 | 1 | ||
| 8 | 1297281 | C R1000001-R1999999 | 1 | ||
| 9 | 1297282 | C R1000001-R1999999 | 1 | ||
| 10 | 1297991 | C S1000001-T1000766 | 1 | ||
| 11 | 1298789 | C T1000767-T1999999 | 1 | ||
| 12 | 1299926 | C V1000001-V1999999 | 1 | ||
| 13 | (1298819) | C T1000001-T1999999 | 1 | ||
| 14 | 1299933 | C V1000001-V1999999 | 1 | ||
| 15 | 6296387 | C W1000001-W1201011 | 1 | ||
| 16 | 6298087 | C W1201012-W1999999 | 1 | ||
| 17 | 6297278 | C X1000001- | 1 | ||
| 18 | 6295804 | C W1000001-W1201011 | 1 | ||
| 19 | 6298149 | C W1201012-W1999999 | 1 | ||
| 20 | 6297429 | C X1000001- | 1 | ||
| 21 | 6298149 | C W1201012- | 1 | ||
| 22 | (6295827) | C W1000001-W1201011 | 1 |
