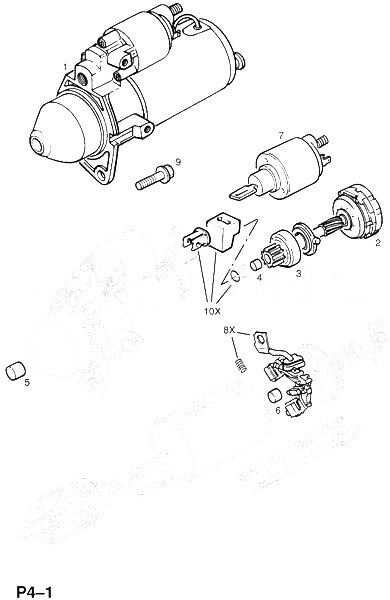

СТАРТЕР (ПРОДОЛЖ.) - X20DTH,Y22DTH ДВИГАТЕЛИ P - ЭЛЕКТРИЧЕСКИЙ OPEL OMEGA-B
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | (1202148) | E -17883780 | 1 | ||
| 2 | 1203991 | - | 1 | ||
| 3 | 1203167 | - | 1 | ||
| 4 | 1203221 | - | 1 | ||
| 5 | 1203220 | - | 1 | ||
| 6 | 1203201 | - | 1 | ||
| 7 | 1202176 | - | 1 | ||
| 8X | (1203011) | - | 1 | ||
| 9 | 2005998 | 1 | |||
| 1 | (6202009) | E 17883781-17A40849 | 1 | ||
| 2 | 1203991 | - | 1 | ||
| 3 | 1203167 | - | 1 | ||
| 4 | 1203221 | - | 1 | ||
| 6 | 1203201 | - | 1 | ||
| 7 | 1202071 | - | 1 | ||
| 8X | (1203011) | - | 1 | ||
| 10X | 1612620 | - | 1 | ||
| 9 | 2005998 | 1 | |||
| 1 | (6202014) | E 17A40850-17E98086 | 1 | ||
| 2 | 1203991 | - | 1 | ||
| 3 | 1203167 | - | 1 | ||
| 4 | 1203221 | - | 1 | ||
| 5 | 1203220 | - | 1 | ||
| 6 | 1203201 | - | 1 | ||
| 7 | 1202071 | - | E 17A40850-17E98086 | 1 | |
| 8X | (1203011) | - | 1 | ||
| 10X | 1612620 | - | 1 | ||
| 1 | 6202060 | E 17E98087- | 1 | ||
| 2 | 1203991 | - | 1 | ||
| 3 | 1203167 | - | 1 | ||
| 4 | 1203221 | - | 1 | ||
| 6 | 1203201 | - | 1 | ||
| 7 | 6202068 | - | E 17E98087- | 1 | |
| 8X | (1203011) | - | 1 | ||
| 10X | 1612620 | - | 1 |
