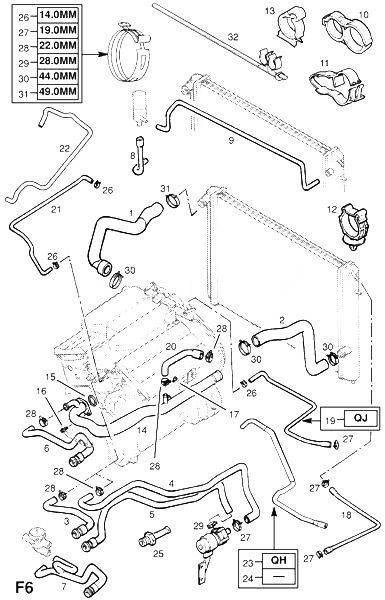

ШЛАНГИ И ТРУБКИ (ПРОДОЛЖ.) - X25XE,Y26SE,X30XE,Y32SE ДВИГАТЕЛИ OPEL OMEGA-B
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | (1337273) | C R1000001-T1187643 | 1 | ||
| 1 | (1337405) | C T1187644-V1025377 | 1 | ||
| 1 | (1337442) | X25XE, Y26SE, X30XE, Y32SE | C V1025378-Y1037137 | 1 | |
| 1 | 1337560 | X25XE, Y26SE, X30XE, Y32SE | C Y1037138- | 1 | |
| 2 | (1337266) | C -X1112716 | 1 | ||
| 2 | 1336192 | C X1112717- | 1 | ||
| 3 | (1818400) | X25XE, X30XE | C R1000001-S1100328 | 1 | |
| 3 | 1818122 | X25XE, X30XE | C X1080658- | 1 | |
| 3 | (1818400) | X25XE, X30XE | C -S1214130 | 1 | |
| 3 | (1818400) | X25XE, X30XE | C -X1080657 | 1 | |
| 3 | 1818122 | C X1080658- | 1 | ||
| 3 | 1818122 | X25XE, X30XE | C X1080658- | 1 | |
| 4 | 6818109 | C S1100329-S1214130 | 1 | ||
| 4 | 6818109 | C -S1214130 | 1 | ||
| 4 | 6818199 | C S1214131- | 1 | ||
| 4 | 6818199 | C S1214131- | 1 | ||
| 4 | 6818199 | C S1214131- | 1 | ||
| 5 | 6818110 | C S1100329-S1214130 | 1 | ||
| 5 | (6818201) | C S1214131-X1080657 | 1 | ||
| 5 | 1818193 | C X1080658- | 1 | ||
| 5 | 1818193 | C X1080658- | 1 | ||
| 5 | (6818201) | C S1214131-X1080657 | 1 | ||
| 5 | 6818110 | C -S1214130 | 1 | ||
| 6 | (1818434) | C -S1214130 | 1 | ||
| 6 | (1818434) | C S1214131-Y1139923 | 1 | ||
| 6 | 1818258 | C Y1139924- | 1 | ||
| 6 | 1818258 | C Y1139924- | 1 | ||
| 7 | (1818429) | C S1214131-Y1141987 | 1 | ||
| 7 | (1818429) | C S1214131-Y1141987 | 1 | ||
| 7 | 1818240 | C Y1141988- | 1 | ||
| 8 | (1337287) | C R1000001-T1013508 | 1 | ||
| 8 | 1337350 | C T1013509- | 1 | ||
| 9 | 1337245 | 1 | |||
| 10 | (1337955) | C R1000001-T1013508 | 1 | ||
| 11 | 1337956 | C T1013509- | 2 | ||
| 12 | 1818715 | 1 | |||
| 13 | 5656086 | Y26SE, Y32SE | 2 | ||
| 14 | (1336913) | C -X1072233 | 1 | ||
| 14 | 1337514 | C X1072234- | 1 | ||
| 15 | 1338242 | C -31663404 | 1 | ||
| 15 | (6338471) | Y26SE, Y32SE | C 31663405- | 1 | |
| 16 | 2005201 | 2 | |||
| 16 | 2005987 | Y26SE, Y32SE | 2 | ||
| 16 | 2005987 | Y26SE, Y32SE | 2 | ||
| 17 | (2005114) | 1 | |||
| 17 | 2005987 | 1 | |||
| 17 | 2005987 | 1 | |||
| 18 | (1337254) | C R1000001-S1110131 | 1 | ||
| 18 | 1337292 | X25XE, X30XE | C S1110132- | 1 | |
| 19 | 5656085 | Y26SE, Y32SE | 1 | ||
| 20 | 1336747 | 1 | |||
| 21 | (0838277) | C -T1187643 | 1 | ||
| 21 | 0838213 | X25XE | C T1187644- | 1 | |
| 21 | 0838213 | X30XE | C T1187644-V1999999 | 1 | |
| 21 | 0838215 | X30XE | C W1000001-W1162809 | 1 | |
| 22 | 0838216 | X30XE | C W1162810- | 1 | |
| 23 | 0838206 | Y26SE, Y32SE | 1 | ||
| 19 | (5656014) | C -T1187643 | 1 | ||
| 19 | 5656056 | X25XE | C T1187644- | 1 | |
| 19 | 5656056 | X30XE | C T1187644-V1999999 | 1 | |
| 19 | 5656067 | X30XE | C W1000001-W1162809 | 1 | |
| 24 | 5656082 | X30XE | C W1162810-11999999 | 1 | |
| 19 | 5656085 | Y26SE, Y32SE | 1 | ||
| 25 | 1338311 | 1 | |||
| 26 | 2094505 | 3 | |||
| 26 | 2094918 | Y26SE, Y32SE | 1 | ||
| 27 | (2094507) | 3 | |||
| 27 | (2094507) | X25XE, X30XE | 0 | ||
| 27 | 2094931 | Y26SE, Y32SE | 2 | ||
| 27 | 2094931 | Y26SE, Y32SE | 1 | ||
| 28 | 2094509 | 3 | |||
| 27 | (2094507) | Y26SE, Y32SE | 1 | ||
| 29 | 2094930 | Y26SE, Y32SE | 2 | ||
| 29 | 2094510 | 3 | |||
| 29 | 2094510 | 4 | |||
| 30 | (2094504) | X25XE, X30XE | 2 | ||
| 30 | 2094932 | Y26SE, Y32SE | 2 | ||
| 30 | 2094036 | Y26SE, Y32SE | 1 | ||
| 30 | 2094036 | X25XE, X30XE | 2 | ||
| 30 | 2094036 | Y26SE, Y32SE | 2 | ||
| 31 | (2094508) | X25XE, X30XE | 1 | ||
| 31 | 2094934 | Y26SE, Y32SE | 1 | ||
| 13 | 5656086 | Y26SE, Y32SE | 1 | ||
| 32 | 1304716 | 1 |
