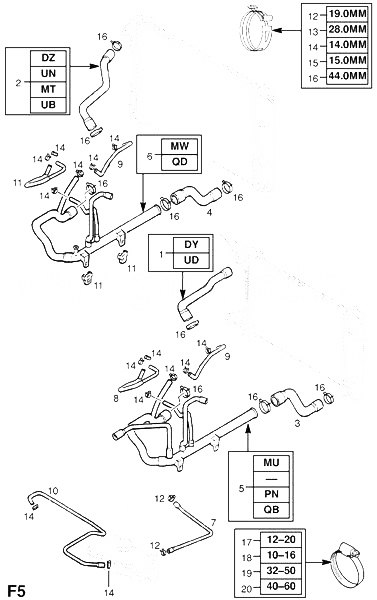

ШЛАНГИ И ТРУБКИ (ПРОДОЛЖ.) - X20XEV ДВИГАТЕЛЬ OPEL OMEGA-B
| Рис | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 1 | (1337261) | C -T1187643 | 1 | ||
| 1 | 1337403 | C T1187644-V1999999 | 1 | ||
| 2 | (1337404) | C W1000001-W1198523 | 1 | ||
| 2 | (1337262) | C -T1187643 | 1 | ||
| 2 | (1337404) | C T1187644-W1198523 | 1 | ||
| 2 | (1337523) | C W1198524-X1999999 | 1 | ||
| 2 | 1337562 | C Y1000001- | 1 | ||
| 3 | 1337267 | C -V1999999 | 1 | ||
| 4 | 1337268 | C W1000001- | 1 | ||
| 4 | 1337268 | 1 | |||
| 5 | (1336102) | C -T1187643 | 1 | ||
| 5 | (1336102) | C -T1187643 | 1 | ||
| 5 | (1336133) | C T1187644-Y1004636 | 1 | ||
| 5 | (1336133) | C T1187644-T1999999 | 1 | ||
| 5 | (1336051) | C Y1004637-Y1059405 | 1 | ||
| 5 | (1336051) | C Y1004637-Y1059405 | 1 | ||
| 5 | 6336027 | C Y1059406- | 1 | ||
| 5 | 6336027 | C Y1059406- | 1 | ||
| 6 | (1336103) | C -T1187643 | 1 | ||
| 6 | (1336134) | C T1187644-Y1059405 | 1 | ||
| 6 | (1336134) | C V1000001-Y1059405 | 1 | ||
| 6 | 6336028 | C Y1059406- | 1 | ||
| 6 | 6336028 | C Y1059406- | 1 | ||
| 7 | 1337292 | 1 | |||
| 7 | 1337292 | C S1110132- | 1 | ||
| 7 | (1337254) | C R1000001-S1110131 | 1 | ||
| 8 | (5656016) | C -T1187643 | 1 | ||
| 8 | 5656054 | C T1187644- | 1 | ||
| 9 | (5656015) | C -T1187643 | 1 | ||
| 9 | 5656055 | C T1187644- | 1 | ||
| 10 | (0851854) | C R1000001-V1090563 | 1 | ||
| 10 | 5851838 | C V1090564- | 1 | ||
| 11 | 1337953 | 2 | |||
| 12 | (2094507) | 0 | |||
| 12 | 2094931 | 0 | |||
| 13 | 2094510 | 0 | |||
| 14 | 2094505 | 0 | |||
| 15 | (2094513) | 2 | |||
| 16 | (2094504) | 0 | |||
| 17 | 2094318 | 1 | |||
| 18 | 2094313 | 2 | |||
| 19 | 2094319 | 0 | |||
| 19 | 0 | ||||
| 20 | (2094322) | 1 |
