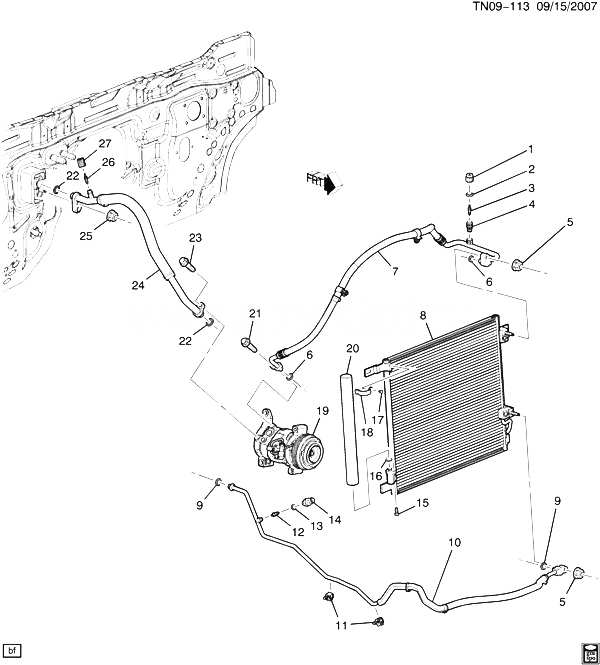

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
52458768 |
CAP, A/C REFRIG SERV VLV FTG (PART OF 7) (HIGH SIDE CHARGE PORT) (M8X1.0) (WITH SEAL) (LONG THREADED, NON-TETHERED CAP) (ACDelco #15-33289) |
N1 |
2008-2010 |
01 |
| 002 |
|
SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 7) |
|
2010-2010 |
|
| 003 |
52458184 |
VALVE, A/C REFRIG LOW PRESS SERV (INCLS O-RINGS, CORE, FEMALE FITTING ; SEAL) (PART OF 7) (M12X1.5 THD) (INCLS FITTING ; SEAL) (9.177) (ACDelco #15-5438) |
N1 |
2008-2010 |
01 |
| 004 |
|
FITTING, A/C REFRIG SERV VLV (PART OF 7) |
|
2010-2010 |
|
| 005 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CNDSR) (8.915) (ACDelco #11514596) |
|
2008-2010 |
02 |
| 006 |
52474373 |
SEAL, A/C CMPR ; CNDSR HOSE (PART OF 7) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
N1 |
2008-2010 |
01 |
| 007 |
15865705 |
HOSE, A/C CNDSR (INCLS 1-4, 6) (ACDelco #15-33806) |
N1 (LH9, JJA) (EXC RHD) |
2010-2010 |
01 |
| 008 |
25964057 |
CONDENSER, A/C (INCLS 15-18, 20) (ACDelco #15-63555) |
N1 (M30) |
2008-2010 |
01 |
| 009 |
52474373 |
SEAL, A/C EVPR INL TUBE (PART OF 10) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
N1 |
2008-2010 |
02 |
| 010 |
25786707 |
TUBE, A/C CNDSR ; A/C EVPR (INCLS 9, 11-14) (ACDelco #15-33784) |
N1 (LH9, LLR) (EXC RHD) |
2010-2010 |
01 |
| 011 |
10317605 |
CLIP, A/C EVPR TUBE (PART OF 10) (6.8MM HOLE) |
N1 (EXC RHD) |
2008-2010 |
02 |
| 012 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 10) (W/O FITTING) (ACDelco #15-1119) |
N1 |
2008-2010 |
01 |
| 013 |
19188397 |
O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 10) (ACDelco #15-3592) |
|
2008-2010 |
01 |
| 014 |
22678731 |
SENSOR, A/C REFRIG PRESS (PART OF 10) (HIGH PRESSURE) (ALUMINUM W/O COATING) |
N1 |
2008-2010 |
01 |
| 015 |
11561359 |
BOLT, A/C RCVR ; DEHYDR FTG (PART OF 8) |
N1 |
2008-2010 |
01 |
| 016 |
10399669 |
SEAL, A/C RCVR ; DEHYDR FTG (O RING) (PART OF 8) (ACDelco #15-33214) |
N1 |
2008-2010 |
01 |
| 017 |
11561360 |
BOLT, A/C RCVR ; DEHYDR BRKT (PART OF 8) |
N1 |
2008-2010 |
01 |
| 018 |
25964058 |
BRACKET, A/C RCVR ; DEHYDR (PART OF 8) (HOLDS ACCUMULATOR/DEHYDRATOR) |
N1 |
2008-2010 |
01 |
| 019 |
|
COMPRESSOR, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2010 |
|
| 020 |
25964059 |
RECEIVER ; DEHYDRATOR, A/C (PART OF 8) (2 FEMALE CONNECTORS) (ACDelco #25964059) |
N1 |
2010-2010 |
01 |
| 021 |
11515759 |
BOLT, FLG HD (M8-1.25X35)9.8 ZOR (A/C CMPR ; CNDSR HOSE) |
|
2008-2010 |
01 |
| 022 |
02724966 |
SEAL, A/C CMPR TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 24) (ACDelco #15-31101) |
N1 (LH9) |
2010-2010 |
02 |
| 023 |
11517518 |
BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (A/C CMPR ; CNDSR HOSE) (ACDelco #11517518) |
|
2008-2010 |
01 |
| 024 |
25813637 |
TUBE, A/C CMPR (INCLS 22, 26, 27) (ACDelco #15-33810) |
N1 (LH9) (EXC RHD) |
2010-2010 |
01 |
| 025 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2008-2010 |
01 |
| 026 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 24) (W/O FITTING) (ACDelco #15-1119) |
N1 |
2008-2010 |
01 |
| 027 |
52471377 |
CAP, A/C ACCUM HOSE FTG (PART OF 24) (BLACK) (M8X1.0MM) (LOW SIDE FILL PORT) (9.220) (ACDelco #15-32645) |
N1 |
2008-2010 |
01 |
