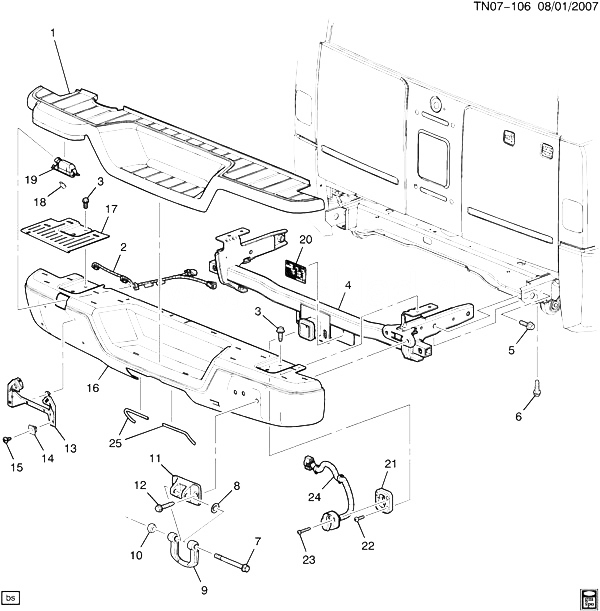

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 003 |
11609269 |
BOLT, RR BPR IMP BAR BRKT (M10X1.5X23) (7.395) |
N1 |
2007-2010 |
AR |
| 004 |
15924494 |
PLATFORM, TRLR HITCH (INCLS 20) |
N153 (06) (BRM, VR4) (EXPORT) |
2008-2010 |
01 |
| 005 |
11561075 |
BOLT, HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR) |
|
2007-2010 |
04 |
| 006 |
11517387 |
BOLT, HEX HD W/FLWA, M12X1.75X45 (RR BPR IMP BAR) |
|
2007-2010 |
02 |
| 007 |
11561379 |
BOLT- HFH, M16X2X165, 35 THD, 30.5 OD, 10.9, GM6046M (BLACK), HDR PT. (RR TOW HOOK) |
|
2007-2010 |
01 |
| 008 |
15204555 |
WASHER, RR TOW HOOK |
N1 |
2007-2010 |
02 |
| 009 |
15817909 |
HOOK, RR TOW |
N1 |
2007-2010 |
01 |
| 010 |
11610463 |
NUT, HFH, M16X2, 18.2 THK, 30.5 OD, 10 STL, FNSH GMW14100+WATER SLBLE W (FRT TOW HOOK) |
|
2007-2010 |
02 |
| 011 |
15826713 |
BRACKET, RR TOW HOOK |
N1 |
2007-2010 |
02 |
| 012 |
11561764 |
BOLT, HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR TOW HOOK BRKT) |
|
2007-2010 |
02 |
| 013 |
15836784 |
ATTACHMENT KIT, RR LIC PLT (INCLS 14, 15) |
N1 (BRM) (EXPORT) |
2007-2010 |
01 |
| 014 |
03907444 |
NUT, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (PART OF 13) |
|
2007-2010 |
02 |
| 015 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (PART OF 13) |
|
2007-2010 |
04 |
| 016 |
15850414 |
BAR, RR BPR IMP |
N1 (06) (VR4) (EXC UVC) |
2009-2010 |
01 |
| 018 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 19) (ACDelco #L194) |
|
2007-2010 |
02 |
| 019 |
09164143 |
LAMP, RR LIC PLT (INCLS 18) |
N153 (06) (VR4) |
2010-2010 |
02 |
| 019 |
09164143 |
LAMP, RR LIC PLT (INCLS 18) |
N153 (06) (BRM) (EXPORT) |
2007-2010 |
02 |
| 020 |
24300086 |
LABEL, TRLR HITCH LOAD INFO (PART OF 4) |
N1 (VGX) |
2008-2010 |
01 |
| 020 |
25854904 |
LABEL, TRLR HITCH LOAD INFO (PART OF 4) |
N153 (06) (BRM, VR4) (EXPORT) |
2008-2010 |
01 |
| 021 |
25813441 |
ADAPTER, TRLR WRG HARN RCPT |
N153 (06) (BRM, B16) (EXPORT) |
2007-2010 |
01 |
| 022 |
15596436 |
BOLT, TRLR WRG HARN RCPT ADAP (3.003) |
N1 |
2007-2010 |
04 |
| 023 |
11570365 |
SCREW-PAN HD, M5X0.8X35, 27.5 THD, 9.5 OD, AISI 302 SS, GM6046M BLACK (TRLR RR WRG HARN RCPT) |
|
2007-2010 |
AR |
| 024 |
24300463 |
HARNESS, TRLR RR WRG (W/RCPT) |
N153 (06) (B16, VR4) |
2010-2010 |
01 |
| 025 |
15924499 |
MOLDING, RR BPR FASCIA |
N1 (06) |
2007-2010 |
02 |
