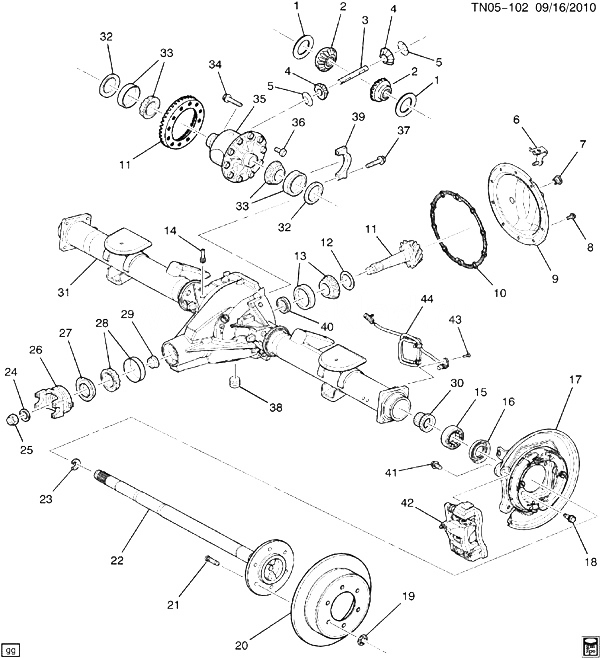

(TN05-102) 2006-2010 N1 ОСЬ ЗАДНЯЯ (SUSPENSION Z85) HUMMER - H3T 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (*KIT1) 2006-2010
002 GEAR, DIFF SI (*KIT1) 2006-2010
003 25824249 SHAFT, DIFF P/GR (RR AXLE) (124.84 MM) (*KIT1) N1 (ZM6, Z85) 2009-2010 01
004 GEAR, DIFF PINION (*KIT1) 2006-2010
005 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT1) N1 (EXC G94) 2006-2010 02
006 10360518 BRACKET, BRK PIPE N153 (06) 2009-2010 01
006 25958393 BRACKET, BRK PIPE N155 (43) 2009-2010 01
007 92230583 PLUG, DIFF CARR FILL (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (NO ZINC COATING) N1 2010-2010 01
008 12471307 BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) N1 2006-2010 09
009 15860606 COVER, R/AXL HSG (COVER ONLY) N1 2006-2010 01
010 15860607 GASKET, R/AXL HSG CVR (10 BOLT HOLES) N1 2006-2010 01
011 25980267 GEAR KIT, DIFF RING ; PINION (INCLS 12, 25, 29, 36) N1 (GT5) 2009-2010 01
011 25980266 GEAR KIT, DIFF RING ; PINION (INCLS 12, 25, 29, 36) N1 (HC4) 2006-2010 01
012 12471330 SPACER, DIFF BRG (RR AXLE) (PART OF 11) (4.37-4.32MM THK) (5.650) N1 2006-2010 02
013 25824251 BEARING, DIFF DRV P/GR INR (8.5/8.625 DIA) (ACDelco #S1381) N1 2009-2010 01
014 26062696 CONNECTOR, R/AXL VENT HOSE (STRAIGHT 43.5MM) (W/VIBRASEAL ON THREADS) N1 2006-2010 01
015 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) N1 2006-2010 02
016 12471686 SEAL, R/AXL SHF (ACDelco #291-315) N1 2006-2010 02
017 SHIELD, RR BRK (SEE GROUP 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2006-2010
018 15065927 BOLT, RR BRK BKG PLT (M12X1.75X34) (4.591) N1 2006-2010 08
019 11561143 NUT, PUSH-ON, M12X1.75, 3 THK, 21.5 OD, SAE1050 STL, GMW3359 (RR BRK DRUM (PUSH ON)) 2006-2010 02
020 15111376 ROTOR, RR BRK (ACDelco #177-0994) N1 2006-2010 02
021 09595178 STUD, RR WHL (M12X1.5X40) (ROUND HEAD W/SERRATIONS) N1 2006-2010 12
022 15840082 SHAFT, R/AXL N1 (ZM6, Z85) 2006-2010 02
023 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) N1 2006-2010 02
024 00517900 WASHER, DIFF DRV P/GR (RR AXLE) (RR AXLE) (PART OF 26) (.890X1.625X.190) N1 2006-2010 01
025 88891763 NUT, DIFF DRV P/GR (RR AXLE) (PART OF 11, 26) (M10) N1 2006-2010 01
026 19180533 YOKE KIT, DIFF DRV P/GR (INCLS 24, 25, 27) (INCLS NUT, SEAL, WASHER ; YOKE) N1 2009-2010 01
027 26064029 SEAL, DIFF DRV P/GR (PART OF 26) (5.545) N1 2009-2010 01
028 25824252 BEARING, DIFF DRV P/GR OTR (INCLS 1 CONE AAM# 40048060 AND 1 CUP AAM# 40048058) (RR AXLE) (8.5/8.625 DIA) (ACDelco #S1382) N1 (ZM6, Z85) 2009-2010 01
029 12479162 SPACER, DIFF DRV P/GR BRG (PART OF 11) (.062-.068 THK) N1 (HC4) 2006-2010 01
029 12479162 SPACER, DIFF DRV P/GR BRG (PART OF 11) (.062-.068 THK) N1 (GT5) 2008-2010 01
030 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) (ACDelco #12479286) N1 (HC4, Z85, ZM6) 2006-2010 02
030 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) (ACDelco #12479286) N1 (GT5, Z85, ZM6) 2008-2010 02
031 25958398 HOUSING, R/AXL (INCLS 37, 39) N1 (Z85) 2009-2010 01
032 03853759 SHIM KIT, DIFF BRG (.064-.070 THK) N1 2006-2010 01
032 03853760 SHIM KIT, DIFF BRG (.072-.078 THK) N1 2006-2010 01
032 03853761 SHIM KIT, DIFF BRG (.080-.086 THK) N1 2006-2010 01
032 03853762 SHIM KIT, DIFF BRG (.088-.094 THK) N1 2006-2010 01
032 03853912 SHIM KIT, DIFF BRG (.096-.100 THK) N1 2006-2010 01
032 03907088 SHIM KIT, DIFF BRG (.052-.056 THK) N1 2006-2010 01
032 03907089 SHIM KIT, DIFF BRG (.058-.063 THK) N1 2006-2010 01
032 03995791 SHIM KIT, DIFF BRG (.040-.044 THK) N1 2006-2010 01
032 03995792 SHIM KIT, DIFF BRG (.046-.050 THK) N1 2006-2010 01
032 12471362 SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471363 SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471364 SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471365 SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471366 SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471367 SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) N1 2006-2010 01
032 12471368 SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) N1 2006-2010 01
033 25824250 BEARING, DIFF (R/AXL) (8.5/8.625 DIA) (ACDelco #S1380) N1 2009-2010 02
034 25872305 BOLT, DIFF P/GR SHF LK (1 FOR RR AXLE/1 FOR FRT AXLE) (.3X18X30, 12.7THD) (*KIT1) N1 2007-2010 02
035 25824246 CASE, DIFF (CASE ONLY) N1 2008-2010 01
036 11610549 BOLT, RR DIFF R/GR (RR AXLE (PART OF 11) (7/16-20) N1 2009-2010 10
037 00454947 BOLT, HEX .437-14X2.250 CL-2A CAD/ZC (PART OF 31) 2006-2010 04
038 92230583 PLUG, DIFF CARR FILL (M20X1.5X16, 29 OD) (SQ HD W/WASHER, W/MAGNET) (NO ZINC COATING) N1 2010-2010 01
039 CAP, DIFF BRG (PART OF 31) 2006-2010
040 01394892 SHIM KIT, DIFF DRV P/GR BRG (.020-.024 THK) N1 2006-2010 01
040 01394893 SHIM KIT, DIFF DRV P/GR BRG (.025-.029 THK) N1 2006-2010 01
040 01394894 SHIM KIT, DIFF DRV P/GR BRG (.030-.034 THK) N1 2006-2010 01
040 01394895 SHIM KIT, DIFF DRV P/GR BRG (.035-.039 THK) N1 2006-2010 01
040 26043990 SHIM KIT, DIFF DRV P/GR BRG (.046-.050 THK) N1 2006-2010 01
040 26043991 SHIM KIT, DIFF DRV P/GR BRG (.040-.044 THK) N1 2006-2010 01
040 26043992 SHIM KIT, DIFF DRV P/GR BRG (.045-.049 THK) N1 2006-2010 01
041 11589201 BOLT, RR BRK CLPR (M12 X 1.5 6G X 28.5) (8.900) N1 2006-2010 04
042 CALIPER, RR BRK (SEE GROUP 04.000 BRAKE CALIPER/REAR FOR DETAILED ILLUSTRATED VIEW) (4.667) 2006-2010
043 11569674 BOLT, RR WHL SPD SEN (M6X1X18, 10THD, 12OD) (W/SEALANT 09985473) N1 (HC4, ZM6, Z85) 2008-2010 01
043 11569674 BOLT, RR WHL SPD SEN (M6X1X18, 10THD, 12OD) (W/SEALANT 09985473) N1 (GT5, ZM6, Z85) 2008-2010 01
044 15862988 SENSOR, RR WHL SPD (ACDelco #15862988) N1 2006-2010 02
K01 19180887 GEAR KIT, DIFF SI ; PINION (INCLS 1-5, 34) N1 (EXC G94) 2009-2010 01
