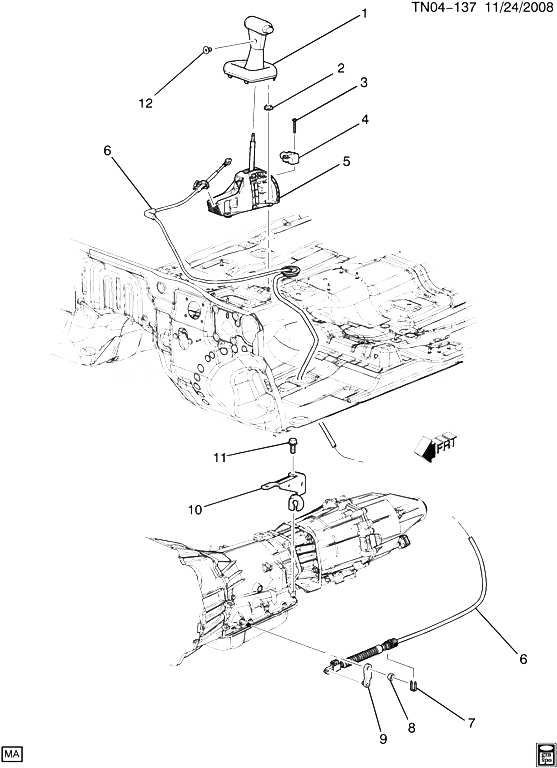

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15818699 |
HANDLE, A/TRNS CONT LVR (INCLS 12) |
N1 (EXC RHD) |
2009-2010 |
01 |
| 001 |
25808539 |
HANDLE, A/TRNS CONT LVR (INCLS 12) |
N1 (MD8, M30, RHD) (EXPORT) |
2010-2010 |
01 |
| 002 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/TRNS RANGE SEL LVR CBL BRKT) |
|
2009-2010 |
04 |
| 003 |
|
BOLT, A/TRNS SHFT LK CONT SOL (PART OF 5) |
|
2009-2010 |
|
| 004 |
88967140 |
SOLENOID, A/TRNS SHFT LK CONT (PART OF 5) |
N1 (MD8, M30) |
2010-2010 |
01 |
| 005 |
15823064 |
CONTROL, A/TRNS (INCLS 3, 4) |
N1 (MD8, M30) (EXC RHD) |
2010-2010 |
01 |
| 005 |
15823064 |
CONTROL, A/TRNS (INCLS 3, 4) (4.004) |
N1 (MD8, M30) (EXC RHD) |
2010-2010 |
01 |
| 005 |
25808540 |
CONTROL, A/TRNS (INCLS 3, 4) (4.004) |
N1 (MD8, M30, RHD) (EXPORT) |
2010-2010 |
01 |
| 005 |
25808540 |
CONTROL, A/TRNS (INCLS 3, 4) |
N1 (MD8, M30, RHD) (EXPORT) |
2010-2010 |
01 |
| 006 |
25800702 |
CABLE, A/TRNS RANGE SEL LVR |
N1 (LLR, M30) |
2009-2010 |
01 |
| 007 |
10217245 |
RETAINER, A/TRNS RANGE SEL LVR CBL (U-SHAPE) |
N1 (LLR, MD8, M30) |
2010-2010 |
01 |
| 008 |
11514603 |
NUT, M10X1.5 15MM SOCKET (A/TRNS RANGE SEL LVR EQLZR LVR) |
|
2009-2010 |
01 |
| 009 |
15082892 |
LEVER, A/TRNS RANGE SEL LVR EQLZR |
N1 (06-43) (LLR, M30, JJA) |
2010-2010 |
01 |
| 010 |
15200802 |
BRACKET, A/TRNS RANGE SEL LVR CBL (ACDelco #15200802) |
N1 (06-43) (LLR, M30, JJA) |
2010-2010 |
01 |
| 011 |
11519505 |
BOLT, HEX HD W/CON WA, M8X1.25X22, 18.74 THD, 17OD, 8.8, GMW3359, HDR PT. (A/TRNS RANGE SEL LVR CBL BRKT) |
|
2009-2010 |
02 |
| 012 |
11589266 |
BOLT, A/TRNS CONT LVR KNOB (PART OF 1) |
N1 (MD8, M30) |
2010-2010 |
01 |
