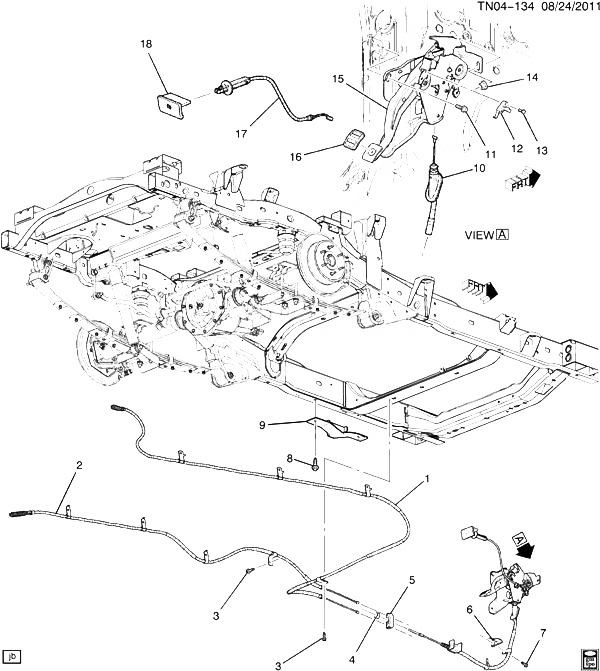

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
94734291 |
CABLE, PARK BRK RR (ACDelco #94734291) |
N155 (43) |
2009-2010 |
01 |
| 003 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PARK BRK RR CBL) |
|
2009-2010 |
04 |
| 004 |
11571172 |
NUT, PARK BRK CBL EQLZR (M6X1.0X22.35) |
N1 (06-43) (EXC RHD) |
2010-2010 |
01 |
| 005 |
15112323 |
EQUALIZER, PARK BRK CBL |
N1 |
2009-2010 |
01 |
| 006 |
97249730 |
BRACKET, PARK BRK CBL |
N1 (43) |
2009-2010 |
01 |
| 007 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK CBL) (T/W 12345493 REPLCS 25534835) |
|
2009-2010 |
01 |
| 008 |
11589407 |
BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (PARK BRK FRT CBL RET) |
|
2009-2010 |
02 |
| 009 |
94725970 |
PROTECTOR, PARK BRK FRT CBL |
N155 (43) |
2009-2010 |
01 |
| 010 |
|
CABLE, PARK BRK FRT (PART OF 15) |
|
2009-2010 |
|
| 011 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK LVR) (T/W 12345493 REPLCS 25534835) |
|
2009-2010 |
02 |
| 012 |
10369643 |
SWITCH, PARK BRK IND (PART OF 15) |
N1 |
2009-2010 |
01 |
| 013 |
10369646 |
BOLT, PARK BRK IND SW (PART OF 15) |
N1 (EXC RHD) |
2009-2010 |
01 |
| 014 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PARK BRK) (8.915) (ACDelco #11514596) |
|
2009-2010 |
01 |
| 015 |
20832044 |
LEVER, PARK BRK (INCLS 10, 12, 13, 16) (PEDAL ASM) (INCLS CABLE) |
N1 (06-43) (EXC RHD) |
2009-2010 |
01 |
| 016 |
10369647 |
PAD, PARK BRK LVR PED (PART OF 15) |
N1 |
2009-2010 |
01 |
| 017 |
25792420 |
CABLE, PARK BRK REL (4.779) (ACDelco #25792420) |
N1 (06-43) (EXC RHD) |
2009-2010 |
01 |
| 018 |
20843963 |
HANDLE, PARK BRK REL (EBONY) |
N1 (19I) (EXC RHD) |
2009-2010 |
01 |
| 018 |
20860108 |
HANDLE, PARK BRK REL (CASHMERE) |
N1 (27I) (EXC RHD) |
2009-2010 |
01 |
| 001 |
94723172 |
CABLE, PARK BRK RR (ACDelco #94723172) |
N155 (43) |
2009-2010 |
01 |
