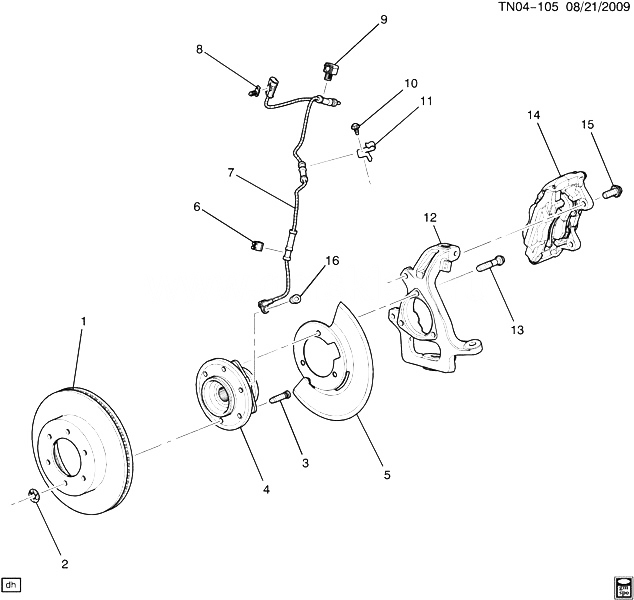

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15202106 |
ROTOR, FRT BRK (ACDelco #177-0997) |
N1 |
2006-2010 |
02 |
| 002 |
11561143 |
NUT, PUSH-ON, M12X1.75, 3 THK, 21.5 OD, SAE1050 STL, GMW3359 (FRT BRK ROT (PUSH ON)) |
|
2006-2010 |
02 |
| 003 |
11588655 |
STUD, FRT WHL (PART OF 4) |
N1 |
2010-2010 |
12 |
| 004 |
25964890 |
BEARING, FRT WHL (INCLS 3, 6-11, 16) (ACDelco #FW369) |
N1 |
2009-2010 |
01 |
| 005 |
25907221 |
SHIELD, FRT BRK (ACDelco #25907221) |
N1 |
2006-2010 |
01 |
| 005 |
25907222 |
SHIELD, FRT BRK (ACDelco #25907222) |
N1 |
2006-2010 |
01 |
| 006 |
15175330 |
CLIP, WHL SPD SEN WIRE (PART OF 4, 7) (GRAY) (14.5X16X25) (HOLDS (1)10 ABS WIRE GROMMET, DUAL TREES) |
N1 |
2006-2010 |
02 |
| 007 |
19207831 |
SENSOR KIT, FRT WHL SPD (PART OF 4) (INCLS 6, 8-11, 16) |
N1 |
2009-2010 |
02 |
| 008 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 4, 7) (BLACK) (7.00/6.25 DIA, SLIDING) |
N1 |
2006-2010 |
02 |
| 009 |
15715952 |
CLIP, WHL SPD SEN WIRE (PART OF 4, 7) (HOLDS (1) 10MM GROMMET, TREE FITS M6 THD HOLE) |
N1 |
2006-2010 |
02 |
| 010 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 4, 7) |
|
2006-2010 |
02 |
| 011 |
25792759 |
BRACKET, WHL SPD SEN (PART OF 4, 7) |
N1 |
2006-2010 |
01 |
| 011 |
25792760 |
BRACKET, WHL SPD SEN (PART OF 4, 7) |
N1 |
2006-2010 |
01 |
| 012 |
10393246 |
KNUCKLE, STRG |
N1 |
2006-2010 |
01 |
| 012 |
10393247 |
KNUCKLE, STRG |
N1 |
2006-2010 |
01 |
| 013 |
15719028 |
BOLT, FRT WHL BRG (M14X1.5X70) (6.104) |
N1 |
2010-2010 |
06 |
| 014 |
|
CALIPER, FRT BRK (SEE GROUP 04.000 BRAKE CALIPER/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 015 |
15098000 |
BOLT, FRT BRK CLPR (M14 X 1.5 X 37.5) |
N1 |
2006-2010 |
04 |
| 016 |
15960191 |
BOLT, FRT WHL SPD SEN RET (PART OF 4, 7) (M6X1X12) |
N1 |
2006-2010 |
02 |
