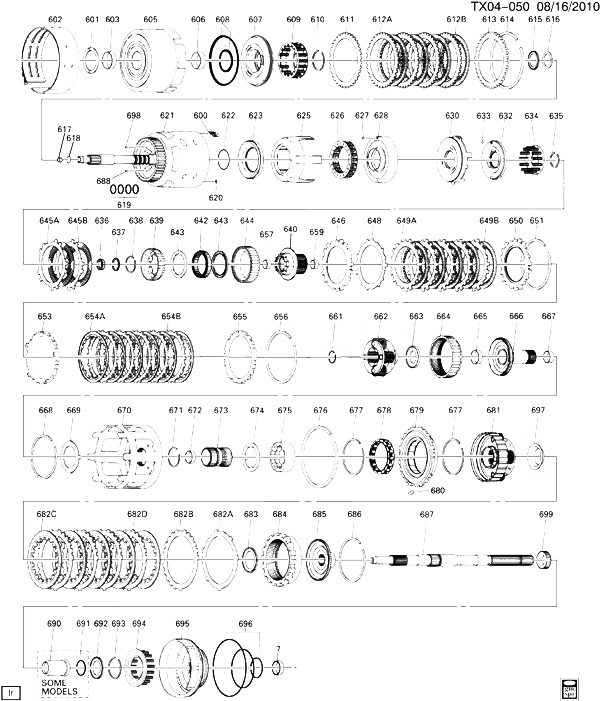

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 007 |
24241233 |
BUSHING, PROP SHF FRT SLIP YOKE (LOCATED IN TRANS CASE) (ACDelco #24241233) |
N1 (M30) |
2006-2010 |
01 |
| 600 |
08667424 |
SPRING, 3RD ; 4TH CLU BOOST (INCLS RET ; (2) SPRINGS) (ACDelco #8667424) |
N1 (M30) |
2006-2010 |
05 |
| 601 |
08642041 |
WASHER, REV INPUT CLU HSG THR (1.52-1.63MM) (4.226) (ACDelco #08642041) |
N1 (M30) |
2006-2010 |
01 |
| 602 |
24232236 |
BAND, 2-4 (ACDelco #24232236) |
N1 (M30) |
2006-2010 |
01 |
| 603 |
08642905 |
BUSHING, REV INPUT CLU HSG FRT (PART OF 605) (ACDelco #8642905) |
N1 (M30) |
2006-2010 |
01 |
| 605 |
24245624 |
HOUSING, REV INPUT CLU (INCLS 603, 606) (ACDelco #24245624) |
N1 (M30) |
2006-2010 |
01 |
| 606 |
08628917 |
BUSHING, DIR CLU HSG RR (PART OF 605) (ACDelco #8628917) |
N1 (M30) |
2006-2010 |
01 |
| 607 |
08667841 |
PISTON, REV INPUT CLU (.095 HOLE) (ACDelco #8667841) |
N1 (M30) |
2006-2010 |
01 |
| 608 |
08683960 |
SEAL KIT, REV INPUT CLU (*KIT2) (ACDelco #8683960) |
N1 (M30) |
2006-2010 |
01 |
| 609 |
24245066 |
SPRING, REV INPUT CLU (ACDelco #24245066) |
N1 (M30) |
2006-2010 |
01 |
| 610 |
24245065 |
RING, REV INPUT CLU SPR RET (*KIT4) (ACDelco #24245065) |
N1 (M30) |
2010-2010 |
01 |
| 611 |
08663074 |
PLATE, REV INPUT CLU (WAVED) (ACDelco #8663074) |
N1 (M30) |
2006-2010 |
01 |
| 612 |
08673605 |
PLATE, REV INPUT CLU (ILLUSTRATED AS 612B) (153MM DIA) (FIBER) (*KIT9) (ACDelco #8673605) |
N1 (M30) |
2006-2010 |
04 |
| 612 |
24205267 |
PLATE, REV INPUT CLU (ILLUSTRATED AS 612A) (1.97MM THICK) (W/HOLES IN TURB PLATES) (STEEL) (ACDelco #24205267) |
N1 (M30) |
2006-2010 |
04 |
| 613 |
24212463 |
PLATE, REV INPUT CLU BKG (5.787-5.947MM) (ACDelco #24212463) |
N1 (M30) |
2006-2010 |
01 |
| 613 |
24212464 |
PLATE, REV INPUT CLU BKG (6.518-6.678MM) (ACDelco #24212464) |
N1 (M30) |
2006-2010 |
01 |
| 613 |
24212465 |
PLATE, REV INPUT CLU BKG (7.409-7.249MM) (ACDelco #24212465) |
N1 (M30) |
2006-2010 |
01 |
| 614 |
08667022 |
RING, REV INPUT CLU BKG PLT RET (ACDelco #8667022) |
N1 (M30) |
2006-2010 |
01 |
| 615 |
08642066 |
BEARING, REV INPUT CLU HSG THR (ACDelco #8642066) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642067 |
WASHER, REV INPUT CLU HSG THR (1.87-1.97MM) (4.158) (ACDelco #8642067) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642068 |
WASHER, REV INPUT CLU HSG THR (2.04-2.14MM) (4.158) (ACDelco #8642068) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642069 |
WASHER, REV INPUT CLU HSG THR (2.21-2.31MM) (4.158) (ACDelco #8642069) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642070 |
WASHER, REV INPUT CLU HSG THR (2.38-2.48MM) (4.158) (ACDelco #8642070) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642071 |
WASHER, REV INPUT CLU HSG THR (2.55-2.65MM) (4.158) (ACDelco #8642071) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642072 |
WASHER, REV INPUT CLU HSG THR (2.72-2.82MM) (4.158) (ACDelco #8642072) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642073 |
WASHER, REV INPUT CLU HSG THR (2.89-2.99MM) (4.158) (ACDelco #8642073) |
N1 (M30) |
2006-2010 |
01 |
| 616 |
08642074 |
WASHER, REV INPUT CLU HSG THR (3.06-3.16MM) (4.158) (ACDelco #8642074) |
N1 (M30) |
2006-2010 |
01 |
| 617 |
08685839 |
VALVE, TURB SHF BALL CHK (ACDelco #8685839) |
N1 (M30) |
2006-2010 |
01 |
| 618 |
08662686 |
SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #8662686) |
N1 (LLR, M30) |
2008-2010 |
01 |
| 618 |
24212987 |
SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #24212987) |
N1 (LH9, M30, JJA) |
2010-2010 |
01 |
| 619 |
08667035 |
RING, INPUT SHF FLUID SEAL (TEFLON) (*KIT2) (ACDelco #8667035) |
N1 (M30) |
2006-2010 |
04 |
| 620 |
24208262 |
VALVE, 3-4 CLU HSG BALL CHK (PART OF 621) (ACDelco #24208262) |
N1 (M30) |
2006-2010 |
01 |
| 621 |
24242329 |
HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24242329) |
N1 (LLR, M30) |
2008-2010 |
01 |
| 621 |
24230654 |
HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24230654) |
N1 (LH9, M30) |
2010-2010 |
01 |
| 622 |
|
SEAL, FWD CLU HSG (O RING) (*KIT1) |
|
2006-2010 |
|
| 623 |
24200290 |
PISTON, 3-4 CLU (ACDelco #24200290) |
N1 (M30) |
2006-2010 |
01 |
| 625 |
08685043 |
RING, 3-4 CLU APPL (1 BAR) (*KIT7) (ACDelco #8685043) |
N1 (M30) |
2006-2010 |
01 |
| 626 |
08685244 |
SPRING, 3-4 CLU (105.12MM O.D.) (ACDelco #8685244) |
N1 (M30) |
2006-2010 |
01 |
| 627 |
24205181 |
VALVE, FWD CLU HSG BALL CHK (PART OF 628) (SHORT ; WIDE) (ACDelco #24205181) |
N1 (M30) |
2006-2010 |
01 |
| 628 |
24205298 |
HOUSING, FWD CLU (INCLS 627) (INCLS HOUSINGS ; VALVE) (ACDelco #24205298) |
N1 (M30) |
2006-2010 |
01 |
| 630 |
24205272 |
PISTON, FWD CLU (INCLS SEALING ELEMENT) (ACDelco #24205272) |
N1 (M30) |
2006-2010 |
01 |
| 632 |
24205273 |
PISTON, OVERRUN CLU (INCLS 633) (STEEL W/ INTEGRAL SEAL) (ACDelco #24205273) |
N1 (M30) |
2006-2010 |
01 |
| 633 |
|
VALVE, OVERRUN CLU BALL CHK (PART OF 632) |
|
2006-2010 |
|
| 634 |
24206085 |
SPRING, OVERRUN CLU (ACDelco #24206085) |
N1 (M30) |
2006-2010 |
01 |
| 635 |
11500692 |
RING, OVERRUN CLU SPR RET (OVERRUN CLU SPR RET) (*KIT4) (ACDelco #11500692) |
|
2006-2010 |
01 |
| 636 |
08677268 |
SEAL, OUTPUT SHF (29 TEETH/SPLINE) (*KIT1) (ACDelco #8677268) |
N1 (M30) |
2006-2010 |
01 |
| 637 |
08642162 |
BEARING, INPUT SUN GR THR (ACDelco #8642162) |
N1 (M30) |
2006-2010 |
01 |
| 638 |
08647083 |
RING, OVERRUN CLU HUB RET (*KIT4, KIT11) (ACDelco #8647083) |
N1 (M30) |
2006-2010 |
01 |
| 639 |
|
HUB, OVERRUN CLU (*KIT11) |
|
2006-2010 |
|
| 640 |
24219279 |
GEAR, INPUT SUN (*KIT11) (ACDelco #24219279) |
N1 (M30) |
2006-2010 |
01 |
| 642 |
24237394 |
SPRAG, FWD CLU (VISUALLY IDENTIFIED BY 4 LUBE HOLES ON SPRAG OUTER RACE) (*KIT11) (ACDelco #24240572) |
N1 (M30) |
2006-2010 |
01 |
| 643 |
|
RETAINER, FWD CLU RLR (*KIT11) |
|
2006-2010 |
|
| 644 |
|
RACE, FWD CLU RLR OTR (*KIT11) |
|
2006-2010 |
|
| 645 |
08642154 |
PLATE, OVERRUN CLU (ILLUSTRATED AS 645A) (2.34MM THK) (FLAT STEEL) (ACDelco #8642154) |
N1 (M30) |
2006-2010 |
02 |
| 645 |
24210766 |
PLATE, OVERRUN CLU (ILLUSTRATED AS 645B) (1.93-2.13 THK) (GROOVED) (*KIT9) (ACDelco #24210766) |
N1 (M30) |
2006-2010 |
02 |
| 646 |
24212462 |
PLATE, FWD CLU APPLY (ACDelco #24212462) |
N1 (M30) |
2006-2010 |
01 |
| 648 |
08647058 |
PLATE, FWD CLU (WAVED) (ACDelco #8647058) |
N1 (M30) |
2006-2010 |
01 |
| 649 |
08654325 |
PLATE, FWD CLU (ILLUSTRATED AS 649A) (STEEL) (*KIT5) (ACDelco #8654325) |
N1 (M30) |
2006-2010 |
05 |
| 649 |
24232517 |
PLATE, FWD CLU (ILLUSTRATED AS 649B) (DOUBLE PARALLEL GROOVES) (*KIT5) (ACDelco #24232517) |
N1 (M30) |
2006-2010 |
05 |
| 650 |
24212466 |
PLATE, FWD CLU BKG (4.56MM-4.71MM) (ACDelco #24212466) |
N1 (M30) |
2006-2010 |
01 |
| 650 |
24212467 |
PLATE, FWD CLU BKG (5.15MM-5.30MM) (ACDelco #24212467) |
N1 (M30) |
2006-2010 |
01 |
| 650 |
24212468 |
PLATE, FWD CLU BKG (5.74MM-5.89MM) (ACDelco #24212468) |
N1 (M30) |
2006-2010 |
01 |
| 650 |
24212469 |
PLATE, FWD CLU BKG (6.33MM-6.48MM) (ACDelco #24212469) |
N1 (M30) |
2006-2010 |
01 |
| 650 |
24212470 |
PLATE, FWD CLU BKG (6.9-7.1MM) (ACDelco #24212470) |
N1 (M30) |
2006-2010 |
01 |
| 651 |
08642170 |
RING, FWD CLU BKG PLT RET (ACDelco #8642170) |
N1 (M30) |
2006-2010 |
01 |
| 653 |
08685044 |
PLATE, 3-4 CLU APPLY (*KIT7) (ACDelco #8685044) |
N1 (M30) |
2006-2010 |
01 |
| 654 |
24238603 |
PLATE KIT, CLU (COLOR OF REG 3-4 STL CLU PLT WAS SILVER AND COLOR OF HD 3-4 STL CLU PLT WAS BLUE. NOW BOTH REG AND HD ARE BLUE. SINGLE OPEN CIRCULAR INDENT ON..) (INCLS ONLY 3-4 CLU STEEL PLTS) (INCLS REV INPUT, OVERRUN, FWD, 3-4, ; LOW/REV FIBER CLU PLT ASM) (*KIT7) (ACDelco #24238603) (SINGLE LARGE TOOTH IS ID FEATURE FOR HD PLT.) |
N1 (M30) |
2007-2010 |
01 |
| 655 |
24212459 |
PLATE, 3-4 CLU BKG (3.90-4.10MM) (*KIT7) (ACDelco #24212459) |
N1 (M30) |
2006-2010 |
01 |
| 655 |
24212460 |
PLATE, 3-4 CLU BKG (4.79-4.99MM) (*KIT7) (ACDelco #24212460) |
N1 (M30) |
2006-2010 |
01 |
| 655 |
24212461 |
PLATE, 3-4 CLU BKG (5.68-5.88MM) (*KIT7) (ACDelco #24212461) |
N1 (M30) |
2006-2010 |
01 |
| 656 |
08663636 |
RING, 3-4 CLU BKG PLT RET (ACDelco #8663636) |
N1 (M30) |
2006-2010 |
01 |
| 657 |
24241493 |
BUSHING, OUTPUT SHF (FRT) (*KIT11) (ACDelco #24241493) |
N1 (M30) |
2008-2010 |
02 |
| 659 |
24241493 |
BUSHING, OUTPUT SHF (REAR) (*KIT11) (ACDelco #24241493) |
N1 (M30) |
2008-2010 |
02 |
| 661 |
08654141 |
RING, OUTPUT SHF RET (*KIT2, KIT4) (ACDelco #8654141) |
N1 (M30) |
2006-2010 |
01 |
| 662 |
24241241 |
CARRIER, INPUT (W/LEAD FREE PINION GEAR THRUST WASHERS) (ACDelco #24241241) |
N1 (M30) |
2008-2010 |
01 |
| 663 |
24217328 |
BEARING, REACTION CARR THR (73.7 ID X 91 OD) (ACDelco #24217328) |
N1 (M30) |
2006-2010 |
01 |
| 665 |
08642908 |
BUSHING, REACTION CARR SHF FRT (PART OF 666) (ACDelco #8642908) |
N1 (M30) |
2007-2010 |
01 |
| 666 |
24241255 |
SHAFT, REACTION CARR (INCLS 665, 667) (ACDelco #24241255) |
N1 (M30) |
2008-2010 |
01 |
| 667 |
08642907 |
BUSHING, REACTION CARR SHF RR (PART OF 666) (ACDelco #8642907) |
N1 (M30) |
2007-2010 |
01 |
| 668 |
08642201 |
RING, REACTION CARR SHF RET (ACDelco #8642201) |
N1 (M30) |
2006-2010 |
01 |
| 669 |
08642331 |
WASHER, REACTION SUN GR SHELL THR (4.176) (ACDelco #8642331) |
N1 (M30) |
2006-2010 |
01 |
| 670 |
24217145 |
SHELL, REACTION SUN GR (ACDelco #24217145) |
N1 (M30) |
2006-2010 |
01 |
| 671 |
08681553 |
RING, REACTION SUN GR RET (ACDelco #8681553) |
N1 (M30) |
2006-2010 |
01 |
| 672 |
08642909 |
BUSHING, REACTION SUN GR (PART OF 673) (ACDelco #8642909) |
N1 (M30) |
2006-2010 |
01 |
| 673 |
24241250 |
GEAR, REACTION SUN (INCLS 672) (ACDelco #24241250) |
N1 (M30) |
2006-2010 |
01 |
| 674 |
08642331 |
WASHER, REACTION SUN GR SHELL THR (4.176) (ACDelco #8642331) |
N1 (M30) |
2006-2010 |
01 |
| 675 |
08673300 |
RACE, LOW CLU RLR INR (ACDelco #8673300) |
N1 (M30) |
2006-2010 |
01 |
| 676 |
24200278 |
RING, LOW ; REV CLU SUPT RET (ACDelco #24200278) |
N1 (M30) |
2006-2010 |
01 |
| 677 |
06261051 |
RING, LOW CLU RLR RET (ACDelco #6261051) |
N1 (M30) |
2006-2010 |
02 |
| 678 |
24217231 |
ROLLER, LOW CLU (PART OF 679) (*KIT6) (ACDelco #24217231) |
N1 (M30) |
2006-2010 |
01 |
| 679 |
24238102 |
SUPPORT, LOW ; REV CLU (INCLS 678) (*KIT6) (ACDelco #24238102) |
N1 (M30) |
2006-2010 |
01 |
| 680 |
06261415 |
SPRING, LOW ; REV CLU SUPT (ACDelco #6261415) |
N1 (M30) |
2006-2010 |
01 |
| 681 |
24241240 |
CARRIER, REACTION (INCLS 697) (HIGH SPEED) (W/DEFLECTOR) (ACDelco #24241240) |
N1 (M30) |
2008-2010 |
01 |
| 681 |
24241237 |
CARRIER, REACTION (INCLS 697) (STANDARD) (W/O DEFLECTOR) (ACDelco #24241237) |
N1 (M30) |
2006-2010 |
01 |
| 682 |
08676362 |
PLATE, LOW ; REV CLU (WAVED) (ILLUSTRATED AS 682A) (*KIT6) (ACDelco #8676362) |
N1 (M30) |
2006-2010 |
01 |
| 682 |
24205268 |
PLATE, LOW ; REV CLU (ILLUSTRATED AS 682B) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) |
N1 (M30) |
2006-2010 |
05 |
| 682 |
24205269 |
PLATE, LOW ; REV CLU (ILLUSTRATED AS 682B) (1.314MM) (HAS HOLES IN TURB PLATES) (*KIT6) (ACDelco #24205269) |
N1 (M30) |
2006-2010 |
01 |
| 682 |
24205270 |
PLATE, LOW ; REV CLU (ILLUSTRATED AS 682B) (2.344MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205270) |
N1 (M30) |
2006-2010 |
01 |
| 682 |
24216946 |
PLATE, LOW ; REV CLU (ILLUSTRATED AS 682C) (FIBER) (SEGMENTED-DO NOT MIX SEGMENTED W/NON-SEGMENTED CLUTCH PLATES) (*KIT9) (ACDelco #24216946) |
N1 (M30) |
2006-2010 |
05 |
| 682 |
24205268 |
PLATE, LOW ; REV CLU (ILLUSTRATED AS 682D) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) |
N1 (M30) |
2006-2010 |
05 |
| 683 |
08642215 |
BEARING, REACTION CARR THR (52.42 ID X 72.4 OD) (4.176) (ACDelco #8642215) |
N1 (M30) |
2006-2010 |
01 |
| 684 |
24233619 |
GEAR, REACTION INTL (ACDelco #24233619) |
N1 (M30) |
2006-2010 |
01 |
| 685 |
24225931 |
SUPPORT, REACTION INTL GR (ACDelco #24225931) |
N1 (M30) |
2006-2010 |
01 |
| 686 |
08642220 |
RING, INT REACTION GR SUPT RET (ACDelco #8642220) |
N1 (M30) |
2006-2010 |
01 |
| 687 |
08683818 |
SHAFT, OUTPUT (ACDelco #8683818) |
N1 (LH9, LLR, M30, JJA) |
2010-2010 |
01 |
| 688 |
|
PLUG, 3-4 CLU HSG FLUID PASG HOLE (PART OF 621) |
|
2006-2010 |
|
| 690 |
|
SLEEVE, OUTPUT SHF (NOT REQD) |
|
2006-2010 |
|
| 691 |
08677268 |
SEAL, OUTPUT SHF (29 TEETH/SPLINE) (*KIT2) (ACDelco #8677268) |
N1 (M30) |
2006-2010 |
01 |
| 692 |
24236092 |
BEARING, REACTION CARR THR (41.95 ID X 63.75 O.D) (ACDelco #24236092) |
N1 (M30) |
2008-2010 |
01 |
| 693 |
08647337 |
RING, LOW ; REV CLU SPR RET RET (*KIT4, KIT6) (4.159) (ACDelco #8647337) |
N1 (M30) |
2006-2010 |
01 |
| 694 |
08642227 |
SPRING, LOW ; REV CLU (ACDelco #8642227) |
N1 (M30) |
2006-2010 |
01 |
| 695 |
08685549 |
PISTON, LOW ; REV CLU (*KIT6) (ACDelco #8685549) |
N1 (M30) |
2006-2010 |
01 |
| 696 |
08648987 |
SEAL KIT, LOW ; REV CLU (INCLS INR, OTR ; INTER SEALS) (*KIT2, KIT6) (4.166) (ACDelco #8648987) |
N1 (M30) |
2006-2010 |
01 |
| 697 |
|
DEFLECTOR, REACTION CARR THR BRG LUB (PART OF 681) |
|
2006-2010 |
|
| 698 |
08663707 |
ORIFICE, LUB FLUID (PART OF 621) (4.3MM DIA) (ACDelco #8663707) |
N1 (M30) |
2006-2010 |
01 |
| 699 |
|
WHEEL, VEH SPD SEN RELUCTOR (NOT REQD) |
|
2006-2010 |
|
| K01 |
08642919 |
SEAL KIT, 3-4 CLU PSTN (FOA) (INCLS 622, 636) (ACDelco #8642919) |
N1 (M30) |
2006-2010 |
01 |
| K02 |
24236378 |
GASKET KIT, A/TRNS SERV (INCLS 608, 618, 619, 661, 691, 696) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2, 5 OF THIS TRANSMISSION ASSEMBLY) (FWD AND OVERRUN PISTONS) (ACDelco #24236378) |
N1 (M30) |
2007-2010 |
01 |
| K04 |
24248064 |
RING KIT, RET (INCLS 610, 635, 638, 661, 693) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PART 5 OF THIS TRANSMISSION ASSEMBLY) (ACDelco #24248064) |
N1 (M30) |
2006-2010 |
01 |
| K05 |
24232835 |
PLATE KIT, FWD CLU (INCLS 649A, 649B) (INCLS INSTR SHEET ; FWD CLUTCH PLATES (FIBERS AND STEELS) (ACDelco #24232835) |
N1 (M30) |
2006-2010 |
01 |
| K06 |
08687996 |
PLATE KIT, LOW ; REV CLU (INCLS 678, 679, 682A, 682B, 682D, 693, 695, 696) (STEEL PLATES) (ACDelco #8687996) |
N1 (M30) |
2006-2010 |
01 |
| K06 |
24238102 |
PLATE KIT, LOW ; REV CLU (INCLS 678, 679, 682A, 682B, 682D, 693, 695, 696) (4.166) (ACDelco #24238102) (***PART OF KIT;DO NOT CATALOG***) |
N1 (M30) |
2006-2010 |
01 |
| K07 |
24238600 |
PLATE KIT, 3-4 CLU (INCLS 625, 653, 654, 655) (INCLS STEEL ; FIBER PLATES) (ACDelco #24238600) |
N1 (M30) |
2006-2010 |
01 |
| K09 |
24238603 |
PLATE KIT, CLU (COLOR OF REG 3-4 STL CLU PLT WAS SILVER AND COLOR OF HD 3-4 STL CLU PLT WAS BLUE. NOW BOTH REG AND HD ARE BLUE. SINGLE OPEN CIRCULAR INDENT ON..) (INCLS 612B, 645B, 682C) (INCLS ONLY 3-4 CLU STEEL PLTS) (INCLS REV INPUT, OVERRUN, FWD, 3-4, ; LOW/REV FIBER CLU PLT ASM) (ACDelco #24238603) (SINGLE LARGE TOOTH IS ID FEATURE FOR HD PLT.) |
N1 (M30) |
2007-2010 |
01 |
| K11 |
24240575 |
SPRAG, FWD CLU (VISUALLY IDENTIFIED BY 4 LUBE HOLES ON SPRAG OUTER RACE) (GEAR IS PRESS FITTED IN) (INCLS 638-640, 642-644, 657, 659) (SERVICE BULLETIN#08-07-30-017 APPLIES TO THIS PART) (HVY DUTY) (ACDelco #24240575) |
N1 (M30) |
2006-2010 |
01 |
