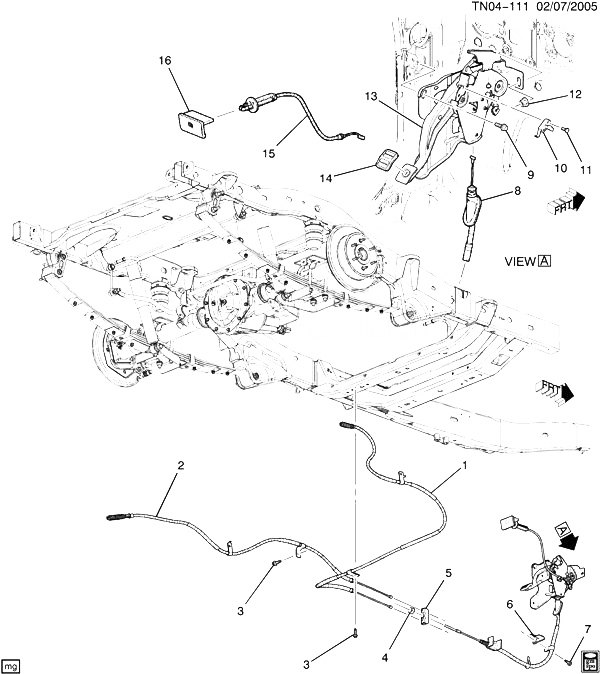

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 012 |
11514596 |
NUT, PARK BRK (M8X1.25) (8.915) (ACDelco #11514596) |
N1 (06) |
2006-2010 |
01 |
| 013 |
20832044 |
LEVER, PARK BRK (INCLS 8, 10, 11, 14) (PEDAL ASM) (INCLS CABLE) |
N1 (06-43) (EXC RHD) |
2009-2010 |
01 |
| 014 |
10369647 |
PAD, PARK BRK LVR PED (PART OF 13) |
N1 |
2006-2010 |
01 |
| 015 |
25792420 |
CABLE, PARK BRK REL (4.779) (ACDelco #25792420) |
N1 (06-43) (EXC RHD) |
2009-2010 |
01 |
| 016 |
20843963 |
HANDLE, PARK BRK REL (EBONY) |
N1 (19I) (EXC RHD) |
2007-2010 |
01 |
| 016 |
20860108 |
HANDLE, PARK BRK REL (CASHMERE) |
N1 (27I) (EXC RHD) |
2007-2010 |
01 |
| 001 |
15869343 |
CABLE, PARK BRK RR (ACDelco #15869343) |
N153 (06) |
2009-2010 |
01 |
| 002 |
15869344 |
CABLE, PARK BRK RR (ACDelco #15869344) |
N153 (06) |
2009-2010 |
01 |
| 003 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PARK BRK RR CBL) |
|
2006-2010 |
04 |
| 004 |
11571172 |
NUT, PARK BRK CBL EQLZR (M6X1.0X22.35) |
N1 (06-43) (EXC RHD) |
2010-2010 |
01 |
| 005 |
15112323 |
EQUALIZER, PARK BRK CBL |
N1 |
2006-2010 |
01 |
| 006 |
97249730 |
BRACKET, PARK BRK CBL |
N1 (06) |
2006-2010 |
01 |
| 007 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK CBL) (T/W 12345493 REPLCS 25534835) |
|
2006-2010 |
01 |
| 008 |
|
CABLE, PARK BRK FRT (PART OF 13) |
|
2009-2010 |
|
| 009 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK LVR) (T/W 12345493 REPLCS 25534835) |
|
2006-2010 |
02 |
| 010 |
10369643 |
SWITCH, PARK BRK IND (PART OF 13) |
N1 (06-43) (EXC RHD) |
2010-2010 |
01 |
| 011 |
10369646 |
BOLT, PARK BRK IND SW (PART OF 13) |
N1 (EXC RHD) |
2007-2010 |
01 |
