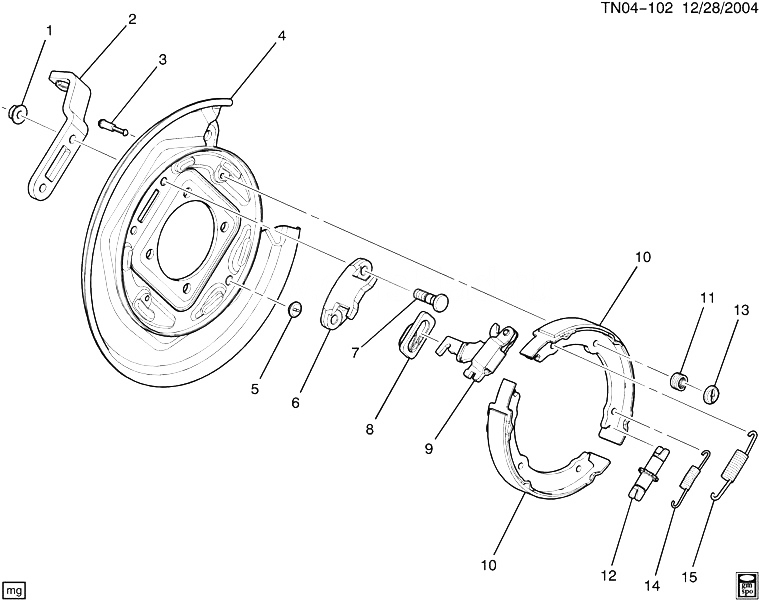

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11610184 |
NUT, PARK BRK ANC PIN |
N1 (HC4, ZM6, Z85) |
2006-2010 |
04 |
| 001 |
11610184 |
NUT, PARK BRK ANC PIN |
N1 (GT5, ZM6, Z85) |
2008-2010 |
04 |
| 002 |
10386840 |
BRACKET, PARK BRK RR CBL |
N1 (HC4, ZM6, Z85) |
2006-2010 |
02 |
| 002 |
10386840 |
BRACKET, PARK BRK RR CBL |
N1 (GT5, ZM6, Z85) |
2008-2010 |
02 |
| 003 |
|
PIN, RR PARK BRK SHOE (*KIT1) |
|
2006-2010 |
|
| 004 |
15111377 |
PLATE, RR BRK CLPR MT (ACDelco #15111377) |
N1 |
2006-2010 |
01 |
| 004 |
15111378 |
PLATE, RR BRK CLPR MT (ACDelco #15111378) |
N1 |
2006-2010 |
01 |
| 005 |
|
COVER, RR PARK BRK ADJ OPG (*KIT1) |
|
2006-2010 |
|
| 006 |
10386844 |
ANCHOR, RR PARK BRK (ACDelco #10386844) |
N1 |
2006-2010 |
02 |
| 007 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK LVR) (T/W 12345493 REPLCS 25534835) |
|
2006-2010 |
04 |
| 008 |
|
SEAL, RR PARK BRK ACTR LVR (*KIT2) |
|
2006-2010 |
|
| 009 |
|
LEVER, RR PARK BRK (*KIT2) |
|
2006-2010 |
|
| 010 |
|
SHOE, PARK BRK (*KIT3) |
|
2006-2010 |
|
| 011 |
|
SPRING, RR PARK BRK SHOE HOLDN (*KIT1) |
|
2006-2010 |
|
| 012 |
10386835 |
ADJUSTER, RR PARK BRK (ACDelco #10386835) |
N1 |
2006-2010 |
02 |
| 013 |
|
RETAINER, RR PARK BRK SHOE HOLDN SPR (*KIT1) |
|
2006-2010 |
|
| 014 |
|
SPRING, RR PARK BRK SHOE RTN (*KIT1) |
|
2006-2010 |
|
| 015 |
|
SPRING, RR PARK BRK SHOE RTN (*KIT1) |
|
2006-2010 |
|
| K01 |
15240816 |
SPRING KIT, RR PARK BRK SHOE HOLDN (INCLS 3, 5, 11, 13-15) (ACDelco #179-2227) |
N1 |
2006-2010 |
02 |
| K02 |
15240817 |
ACTUATOR KIT, RR PARK BRK (INCLS 8, 9) |
N1 |
2006-2010 |
01 |
| K03 |
15240815 |
SHOE KIT, RR PARK BRK (INCLS 10) (CONTAINS TWO SHOES) (ACDelco #171-0971) |
N1 |
2006-2010 |
01 |
