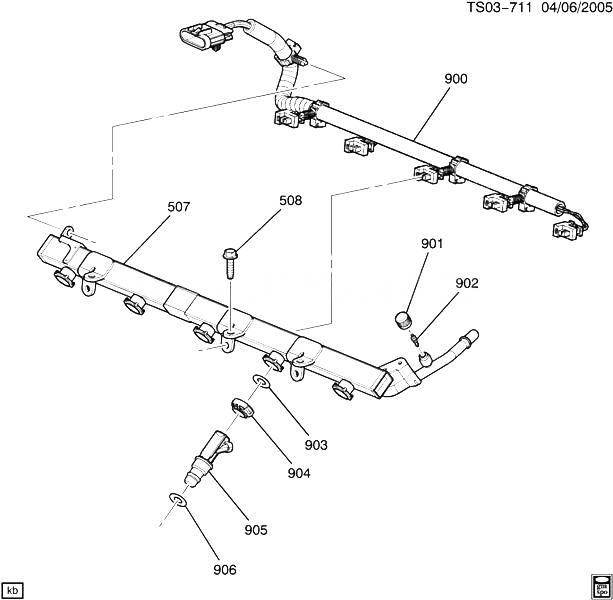

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 507 |
12574343 |
RAIL KIT, M/PORT F/INJN FUEL (INCLS 901, 902) (ACDelco #12574343) |
N1 (LLR) |
2007-2010 |
01 |
| 508 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (F/INJR) |
|
2006-2010 |
03 |
| 900 |
12602813 |
HARNESS, F/INJR WRG |
N1 (LLR) |
2008-2010 |
01 |
| 901 |
25532662 |
CAP, FUEL PRESS SERV VLV (PART OF 507) (CAP FOR PRESSURE TEST SCHRADER VALVE) (*01, 02, 03) (3.163) (ACDelco #214-1044) |
N1 (LLR, MA5, JJA) |
2009-2010 |
01 |
| 902 |
|
VALVE, FUEL PRESS SERV (PART OF 507) |
|
2009-2010 |
|
| 903 |
|
SEAL, F/INJR (O RING) (PART OF 905) (*KIT1) |
|
2007-2010 |
|
| 904 |
12585749 |
RETAINER, F/INJR (PART OF 905) |
N1 (LLR) |
2007-2010 |
06 |
| 905 |
12616382 |
INJECTOR, M/PORT FUEL (INCLS 903, 904, 906) (INCLS RETAINER, SEALS) (ACDelco #217-3157) |
N1 (LLR) |
2009-2010 |
05 |
| 905 |
|
INJECTOR KIT, M/PORT FUEL (INCLS 903, 904, 906) |
N |
2007-2010 |
|
| 906 |
|
SEAL, F/INJR (O RING) (PART OF 905) (*KIT1) |
|
2007-2010 |
|
| K01 |
19169305 |
SEAL KIT, M/PORT F/INJR (INCLS 903, 906) (ACDelco #217-3092) |
N1 (LLR) |
2008-2010 |
01 |
