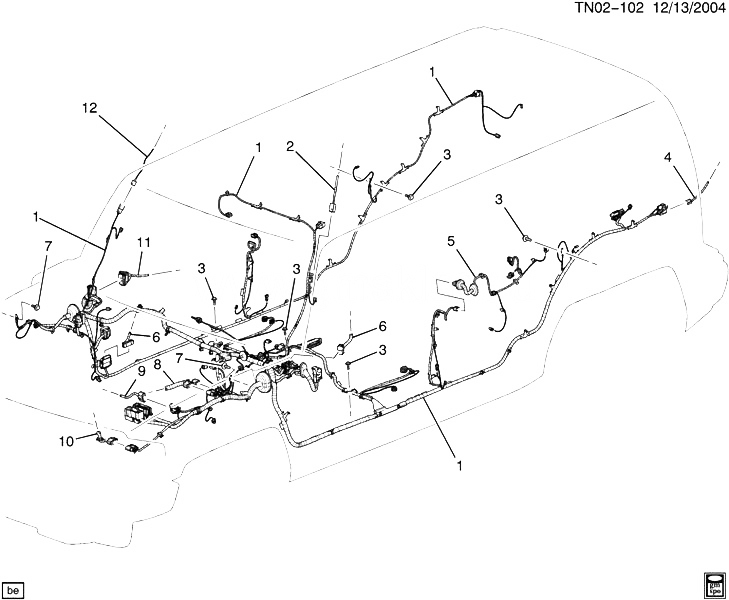

(TN02-102) 2009-2010 N1(06) ЖГУТ ПРОВОДОВ/КУЗОВ HUMMER - H3T 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20858543 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, ASF, UQA, UVC, YC0) (EXC BRM, RHD) 2010-2010 01
001 20858543 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, ASF, UQA, YC0) (EXC BRM, RHD, UVC) 2010-2010 01
001 20858544 HARNESS, BODY WRG N153 (06) (L9H, LLR, AG1, ASF, UQ3, UVC, YC0) (EXC BRM, RHD) 2010-2010 01
001 20858544 HARNESS, BODY WRG N153 (06) (L9H, LLR, AG1, ASF, UQ3, YC0) (EXC BRM, RHD, UVC) 2010-2010 01
001 20858545 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, KA1, UQA, UVC, YC3) (EXC BRM, RHD) 2010-2010 01
001 20858545 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, KA1, UQA, YC3) (EXC BRM, RHD, UVC) 2010-2010 01
001 20858546 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, UQA, UVC, YC0) (EXC AG1, BRM, RHD) 2010-2010 01
001 20858546 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, UQA, YC0) (EXC AG1, BRM, RHD, UVC) 2010-2010 01
001 20858547 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, UQ3, UVC, YC0) (EXC AG1, BRM, RHD) 2010-2010 01
001 20858547 HARNESS, BODY WRG N153 (06) (LH9, LLR, ASF, UQ3, YC0) (EXC AG1, BRM, RHD, UVC) 2010-2010 01
001 24301265 HARNESS, BODY WRG N153 (06) (LH9, LLR, BRM, UQ3, YC0) (EXC AG1, RHD) (EXPORT) 2010-2010 01
001 24301266 HARNESS, BODY WRG N153 (06) (LH9, LLR, BRM, UQA, YC0) (EXC AG1, RHD) (EXPORT) 2010-2010 01
001 24301267 HARNESS, BODY WRG N153 (06) (LH9, LLR, BRM, UQA, YC3) (EXC RHD) (EXPORT) 2010-2010 01
001 24301268 HARNESS, BODY WRG N153 (06) (LH9, LLR, RHD, UQ3, YC0) (EXC AG1) (EXPORT) 2010-2010 01
001 24301269 HARNESS, BODY WRG N153 (06) (LH9, LLR, RHD, UQA, YC0) (EXC AG1) (EXPORT) 2010-2010 01
001 24301270 HARNESS, BODY WRG N153 (06) (LH9, LLR, RHD, UQA, YC3) (EXPORT) 2010-2010 01
001 24301271 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, BRM, UQ3, YC0) (EXC RHD) (EXPORT) 2010-2010 01
001 24301272 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, BRM, UQA, YC0) (EXC RHD) (EXPORT) 2010-2010 01
001 24301273 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, RHD, UQ3, YC0) (EXPORT) 2010-2010 01
001 24301274 HARNESS, BODY WRG N153 (06) (LH9, LLR, AG1, RHD, UQA, YC0) (EXPORT) 2010-2010 01
002 WIRE, SUN RF SW (SEE GROUP 16.000 INTERIOR ROOF/TRIM FOR DETAILED ILLUSTRATED VIEW) 2006-2010
003 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) 2006-2010 05
004 15884104 HARNESS, R/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) N153 (06) 2006-2010 01
004 15884104 HARNESS, R/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) (2.480) N153 (06) 2006-2010 01
005 25908022 HARNESS, RR S/D DR WRG (SEE GROUP 09.000 WIRING HARNESS/REAR SIDE DOOR FOR DETAILED ILLUSTRATED VIEW) N1 (06) (UQA) 2006-2010 02
005 15270585 HARNESS, RR S/D DR WRG (SEE GROUP 09.000 WIRING HARNESS/REAR SIDE DOOR FOR DETAILED ILLUSTRATED VIEW) N1 (06) (UQ3) 2006-2010 02
006 HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2006-2010
007 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) 2006-2010 02
008 HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) 2006-2010
009 HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) 2006-2010
010 HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) 2006-2010
011 HARNESS, FRT S/D DR WRG (SEE GROUP 09.000 WIRING HARNESS/FRONT SIDE DOOR FOR DETAILED ILLUSTRATED VIEW) 2006-2010
012 HARNESS, DM LP WRG (SEE GROUP 16.000 INTERIOR ROOF/TRIM FOR DETAILED ILLUSTRATED VIEW) 2006-2010
