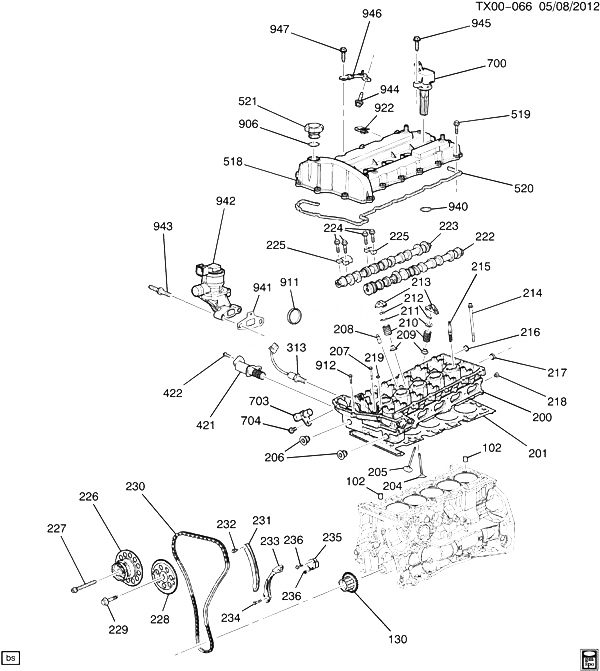

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 102 |
03522352 |
PIN, CYL HD LOC (HOLLOW DOWEL, 15.675X28, CHAM BOTH ENDS, SAE 12L14, ZP) |
N1 (LLR) |
2008-2010 |
02 |
| 130 |
24100061 |
SPROCKET, CR/SHF |
N1 (LLR) |
2008-2010 |
01 |
| 200 |
19206641 |
HEAD, CYL (W/VLVS) (INCLS 216-219, 224, 225, 911) (NOTE INTAKE VLV PN 12623722 MUST BE USED FOR SERVICE) (INCLS W/HARDENED SEATS, VALVES) |
N1 (LLR) |
2009-2010 |
01 |
| 200 |
19258592 |
HEAD, CYL (W/VLVS) (INCLS 216-219, 224, 225, 911) (REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) |
N1 (LLR) |
2009-2010 |
01 |
| 201 |
89060396 |
GASKET KIT, CYL HD (INCLS GASKETS, SEALS) (INCLS 209, 940, 941) |
N1 (LLR) |
2008-2010 |
01 |
| 204 |
12601762 |
VALVE, EXH (STD) |
N1 (LLR) |
2008-2010 |
10 |
| 205 |
12623722 |
VALVE, INT |
N1 (LLR) |
2009-2010 |
10 |
| 206 |
01647544 |
PLUG, CYL HD ACC HOLE (M24X1.5X12) (ROUND HEAD, INT HEX, W/SEAL, NYLON) (0.034) |
N1 (LLR) |
2008-2010 |
02 |
| 207 |
11519306 |
BOLT, CYL HD (-HFH, M6X1X88.3, 17 THD, 14.2 OD, 10.9, 4435M, MACH, 6194M, HDR-PT) |
N1 (LLR) |
2008-2010 |
01 |
| 208 |
12572638 |
ADJUSTER, HYD VLV LASH (ACDelco #HL129) |
N1 (LLR) |
2008-2010 |
20 |
| 209 |
12596995 |
SEAL, VLV STEM OIL (PART OF 201) |
N1 (LLR) |
2008-2010 |
20 |
| 210 |
12592506 |
SPRING, VLV |
N1 (LLR) |
2008-2010 |
20 |
| 211 |
12575196 |
RETAINER, VLV SPR |
N1 (LLR) |
2008-2010 |
20 |
| 212 |
90354648 |
KEY, VLV STEM |
N1 (LLR) |
2008-2010 |
32 |
| 213 |
24100294 |
ARM, VLV RKR |
N1 (LLR) |
2008-2010 |
20 |
| 214 |
12568079 |
BOLT, CYL HD (HFH, M11X2X140.3, 45.3 THD, 24.2 OD, 10.9) (M11X2X145, 34 THD) (WITH CAPTURED WASHER) |
N1 (LLR) |
2008-2010 |
12 |
| 215 |
12625058 |
SPARK PLUG, (ACDelco #41-103) (IRIDIUM) |
N1 (LLR) |
2008-2010 |
05 |
| 216 |
12569484 |
PLUG, SECD AIR INJN PIPE HOLE (PART OF 200) (12.7MM) |
N1 (LLR) |
2008-2010 |
01 |
| 217 |
11562125 |
PLUG, CYL HD WAT JKT HOLE (PART OF 200) (3.675) |
N1 (LLR) |
2008-2010 |
05 |
| 218 |
11609916 |
PLUG, CYL HD OIL GAL (REAR) (PART OF 200) (M14X1.5X21.5) |
N1 (LLR) |
2008-2010 |
02 |
| 219 |
24577307 |
PLUG, CYL HD OIL GAL (FRONT) (PART OF 200) |
N1 (LLR) |
2008-2010 |
02 |
| 222 |
12586532 |
CAMSHAFT, INT (MCHG) |
N1 (LLR) |
2008-2010 |
01 |
| 223 |
24100366 |
CAMSHAFT, EXH (MCHG) |
N1 (LLR) |
2008-2010 |
01 |
| 224 |
12570816 |
BOLT, CM/SHF BRG CAP (EXHAUST CAM THRUST) (PART OF 200) |
N1 (LLR) |
2008-2010 |
25 |
| 225 |
|
CAP, CM/SHF BRG (PART OF 200) |
|
2008-2010 |
|
| 226 |
12589782 |
ACTUATOR, CM/SHF POSN |
N1 (LLR) |
2008-2010 |
01 |
| 227 |
11589234 |
BOLT, CM/SHF POSN ACTR (8.900) (HX HD W/FL WA, M10X1.5X88, 78 THD, 18 OD, 10.9, GM4277M) |
N1 (LLR) |
2008-2010 |
01 |
| 228 |
24100362 |
SPROCKET, CM/SHF (INCL PIN) |
N1 (LLR) |
2008-2010 |
01 |
| 229 |
12565425 |
BOLT, CM/SHF SPKT (M10X1.5-6GX59MM MATERIAL:MEDIUM CARBON ALLOY STL.) |
N1 (LLR) |
2008-2010 |
01 |
| 230 |
12571725 |
CHAIN, CM/SHF TMG |
N1 (LLR) |
2008-2010 |
01 |
| 231 |
12568766 |
SHOE, TMG CHAIN TENSR |
N1 (LLR) |
2008-2010 |
01 |
| 232 |
11518161 |
BOLT, HFH W/SHLDR, M8X1.25X30.5, 11.45 THD, 17OD, 9.8, PL, MACH, 6194M, MAT-PT (TMG CHAIN TENSR SHOE) |
|
2008-2010 |
01 |
| 233 |
12590962 |
GUIDE, TMG CHAIN |
N1 (LLR) |
2008-2010 |
01 |
| 234 |
11588725 |
BOLT, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE) |
|
2008-2010 |
02 |
| 235 |
12628004 |
TENSIONER, TMG CHAIN |
N1 (LLR) |
2010-2010 |
01 |
| 236 |
11518138 |
BOLT, HFH, M8X1.25X30, 25.65 THD, 14 OD, 9.8, 4435M, MACH, HDR-PT (TMG CHAIN TENSR) |
|
2008-2010 |
02 |
| 313 |
12601050 |
SENSOR, ENG COOL TEMP (3.682) (ACDelco #213-4233) |
N1 (LLR, MA5, M30) |
2008-2010 |
01 |
| 313 |
12601050 |
SENSOR, ENG COOL TEMP (ACDelco #213-4233) |
N1 (LLR, MA5, M30) |
2008-2010 |
01 |
| 421 |
12615873 |
VALVE, CM/SHF POSN ACTR SOL (MATING CONN W/LEADS USE 13580114) |
N1 (LLR) |
2008-2010 |
01 |
| 422 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (CM/SHF POSN ACTR SOL VLV) (ACDelco #10-1009) |
|
2008-2010 |
AR |
| 422 |
11517518 |
BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (CM/SHF POSN ACTR SOL VLV) (ACDelco #11517518) |
|
2008-2010 |
01 |
| 518 |
12631008 |
COVER, CM/SHF (INCLS 519, 922, 940) |
N1 (LLR) |
2008-2010 |
01 |
| 519 |
12615912 |
INSULATOR, CM/SHF CVR BOLT (PART OF 518) (INCLS BOLT, GROMMET) |
N1 (LLR) |
2008-2010 |
21 |
| 520 |
89018220 |
GASKET KIT, CM/SHF CVR |
N1 (LLR) |
2008-2010 |
01 |
| 521 |
12573337 |
CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 906) (ACDelco #FC208) |
N1 (LLR) |
2008-2010 |
01 |
| 700 |
12629472 |
COIL, IGN (INCLS 945) (ACDelco #D1935E) |
N1 (LLR) |
2008-2010 |
05 |
| 703 |
12597253 |
SENSOR, CM/SHF POSN (ACDelco #213-4223) |
N1 (LLR, JJA) |
2008-2010 |
01 |
| 704 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (CM/SHF POSN SEN) |
|
2008-2010 |
01 |
| 906 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 521) (27.94MM I.D.) (SIZE #320) |
N1 (LLR) |
2008-2010 |
01 |
| 911 |
11562125 |
PLUG, SECD AIR INJN PIPE HOLE (PART OF 200) |
N1 (LLR) |
2008-2010 |
04 |
| 912 |
11519038 |
BOLT, HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (CYL HD) |
|
2008-2010 |
02 |
| 922 |
11504978 |
NUT, U-TYPE M6X1 PNLS 13.5 DEEP ZOR (PART OF 518) |
|
2008-2010 |
02 |
| 940 |
|
SEAL, CM/SHF CVR SPLG ACC TUBE (PART OF 201, 518) |
|
2008-2010 |
|
| 941 |
24577193 |
GASKET, SECD AIR INJN PIPE CVR (PART OF 201) (ACDelco #219-351) |
N1 (LLR) |
2010-2010 |
01 |
| 942 |
12619109 |
VALVE, SECD AIR INJN CHK (ACDelco #214-2123) |
N1 (LLR, JJA) |
2010-2010 |
01 |
| 943 |
11518994 |
STUD, SECD AIR INJN PIPE CVR (3.671) |
N1 (LLR) |
2008-2010 |
02 |
| 944 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (PART OF 946) |
|
2008-2010 |
01 |
| 945 |
11519038 |
BOLT, HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (PART OF 700) |
|
2008-2010 |
01 |
| 946 |
12601829 |
HARNESS, ELEK ICM WRG (INCLS 944) (GROUND STRAP) |
N1 (LLR) |
2008-2010 |
01 |
| 947 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (ELEK ICM WRG HARN CLIP) |
|
2008-2010 |
01 |
