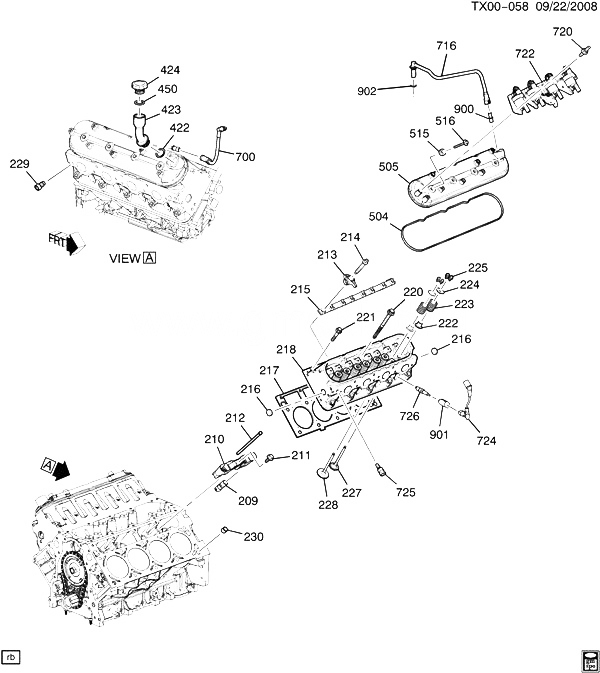

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 700 |
12609959 |
TUBE, PCV (FRESH AIR) |
N1 (LH9) |
2010-2010 |
01 |
| 716 |
12597774 |
TUBE, PCV (DIRTY AIR) (INCLS 902) (W/ PVC VALVE AT MANIFOLD) |
N1 (LH9, M30) |
2010-2010 |
01 |
| 720 |
12554211 |
STUD, IGN COIL BRKT (HFH, M6X1X18) (M6X1X18.5X14) (3.330) (ACDelco #12554211) |
N1 (LH9) |
2010-2010 |
10 |
| 722 |
|
COIL, IGN (SEE GROUP 02.000 COIL ; MODULE/IGNITION FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 724 |
19206446 |
WIRE, SPLG (*KIT1) (ACDelco #357D) |
N1 (LH9, M30) |
2010-2010 |
08 |
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88987993) (1.150) (ACDelco #213-4333) |
N1 (LH9) |
2010-2010 |
01 |
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88987993) (ACDelco #213-4333) |
N1 (LH9) |
2010-2010 |
01 |
| 726 |
12621258 |
SPARK PLUG, (GAP 0.040) (DO NOT CHANGE SPARK PLUG GAP FROM .040) (ACDelco #41-110) (IRIDIUM) |
N1 (LH9) |
2010-2010 |
08 |
| 900 |
|
FITTING, PCV (PART OF 505) |
|
2010-2010 |
|
| 901 |
|
SHIELD, SPLG WIRE |
|
2010-2010 |
|
| 902 |
|
SEAL, PCV TUBE (PART OF 716) |
|
2010-2010 |
|
| K01 |
19206447 |
WIRE KIT, SPLG (INCLS 724) (INCLS SET OF 8 LEADS) (ACDelco #748UU) |
N1 (LH9) |
2010-2010 |
01 |
| 209 |
12576400 |
LIFTER, VLV (NON ACTIVE) (ACDelco #HL128) |
N1 (LH9) |
2010-2010 |
16 |
| 210 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES) |
N1 (LH9) |
2010-2010 |
04 |
| 211 |
12551163 |
BOLT, VLV LFTR GDE (SIDE) (SHORT) (M6X1.0X19) |
N1 (LH9) |
2010-2010 |
04 |
| 212 |
10238852 |
ROD, VLV PUSH |
N1 (LH9) |
2010-2010 |
16 |
| 213 |
10214664 |
ARM, VLV RKR |
N1 (LH9) |
2010-2010 |
16 |
| 214 |
12560961 |
BOLT, VLV RKR ARM PIV SUPT (M8X1.25X52.5) |
N1 (LH9) |
2010-2010 |
16 |
| 215 |
12552203 |
SUPPORT, VLV RKR ARM PIV |
N1 (LH9) |
2010-2010 |
02 |
| 216 |
11562126 |
PLUG, CYL HD CORE HOLE (PRESS IN CUP) (PART OF 218) (CUP, 32.03X7.88X1.27, S30400 SS PER SAE J405.) |
N1 (LH9) |
2010-2010 |
04 |
| 217 |
12589226 |
GASKET, CYL HD |
N1 (LH9) |
2010-2010 |
02 |
| 218 |
12629049 |
HEAD, CYL (INCLS 216) (INCLS GUIDES, SEATS, PLUG)) |
N1 (LH9) |
2010-2010 |
02 |
| 218 |
12629058 |
HEAD, CYL (INCLS 216) |
N1 (LH9) |
2010-2010 |
02 |
| 220 |
19258707 |
BOLT, CYL HD (M11X2X100) |
N1 (LH9) |
2010-2010 |
20 |
| 221 |
12558840 |
BOLT, CYL HD (SHORT) (M8X1.25X45) |
N1 (LH9) |
2010-2010 |
10 |
| 222 |
12482062 |
SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS) |
N1 (LH9) |
2010-2010 |
01 |
| 222 |
12482063 |
SEAL KIT, INT VLV STEM OIL (SEPARATE SEAL AND (RUBBER COATED) SPRING SHIM) (14.4MM) (INCLS 8 SEALS) |
N1 (LH9) |
2010-2010 |
01 |
| 223 |
12589774 |
SPRING, VLV |
N1 (LH9) |
2010-2010 |
16 |
| 224 |
10166344 |
CAP, VLV SPR |
N1 (LH9) |
2010-2010 |
16 |
| 225 |
10166345 |
KEY, VLV STEM |
N1 (LH9) |
2010-2010 |
16 |
| 227 |
12563064 |
VALVE, EXH (STD) |
N1 (LH9) |
2010-2010 |
08 |
| 228 |
12627971 |
VALVE, INT |
N1 (LH9, M30) |
2010-2010 |
04 |
| 229 |
11610259 |
PLUG, CYL HD CORE HOLE (M12X1.5X21.2) (HEX, SOC) |
N1 (LH9) |
2010-2010 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC |
N1 (LH9) |
2010-2010 |
04 |
| 422 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320) (1.758) |
N1 (LH9) |
2010-2010 |
01 |
| 423 |
12609624 |
TUBE, OIL FIL |
N1 (LH9) |
2010-2010 |
01 |
| 424 |
12573337 |
CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 450) (ACDelco #FC208) |
N1 (LH9) |
2010-2010 |
01 |
| 450 |
|
SEAL, OIL FIL CAP (O RING) (PART OF 424) |
|
2009-2010 |
|
| 504 |
12637683 |
GASKET, VLV RKR ARM CVR (PART OF 505) |
N1 (LH9) |
2010-2010 |
02 |
| 505 |
12642655 |
COVER, VLV RKR ARM (INCLS 504, 515, 516, 900) |
N1 (LH9) |
2010-2010 |
01 |
| 505 |
12637684 |
COVER, VLV RKR ARM (INCLS 504, 515, 516) (INCLS COVER, GASKET, BOLT, CONNECTOR, BAFFLE, CAP) |
N1 (LH9) |
2010-2010 |
01 |
| 515 |
|
GROMMET, VLV RKR ARM CVR BOLT (PART OF 505, 516) |
|
2010-2010 |
|
| 516 |
12577215 |
BOLT, VLV RKR ARM CVR (INCLS 515) (PART OF 505) (M6.0X1.0) (W/GROMMET, SLEEVE) |
N1 (LH9) |
2010-2010 |
08 |
