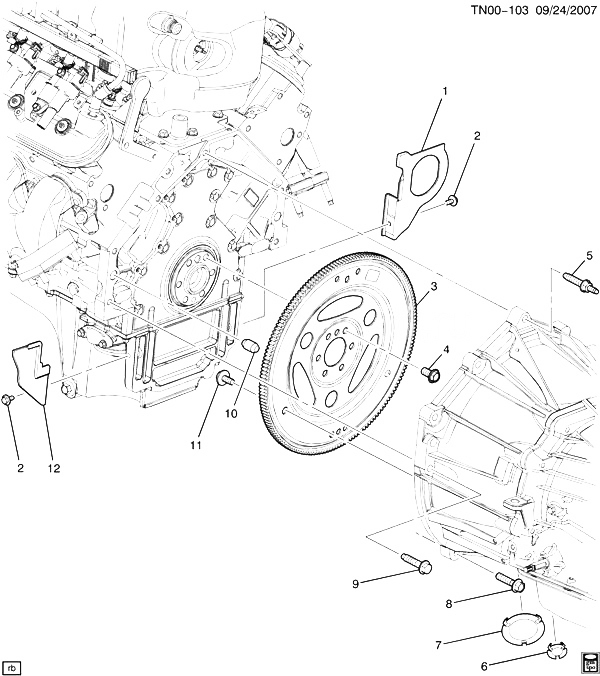

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24236915 |
COVER, TRANS (ACDelco #24236915) |
N1 (LH9, M30) |
2010-2010 |
01 |
| 002 |
12560226 |
BOLT, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
2008-2010 |
02 |
| 003 |
12602448 |
PLATE, A/TRNS FLEX |
N1 (LH9) |
2010-2010 |
01 |
| 004 |
11569956 |
BOLT, FLYWHL (M11X1.5X23.5 W/SEALER) |
N1 (LH9) |
2010-2010 |
06 |
| 005 |
24221931 |
STUD, TRANS (M10X1.5X50, M8X1.25X20, 20 OD) |
N1 |
2010-2010 |
03 |
| 006 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
N1 (M30) |
2008-2010 |
01 |
| 007 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) |
N1 (M30) |
2008-2010 |
01 |
| 008 |
11515769 |
BOLT, HFH, M10X1.5X45, 25THD, 22.3OD, 10.9, 7114M, MACH RAISED SHOULDER (TRANS) |
|
2008-2010 |
01 |
| 009 |
11588742 |
BOLT, HFH, M10X1.5X50, 26 THD, 22.3 OD, 10.9 STL, GMW3359, M-PT (TRANS) |
|
2008-2010 |
AR |
| 010 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2008-2010 |
02 |
| 011 |
11589040 |
BOLT, TRANS T/CV (M10X1.5X22) |
N1 (LH9, M30) |
2010-2010 |
03 |
| 012 |
|
COVER, TRANS |
N |
2010-2010 |
|
