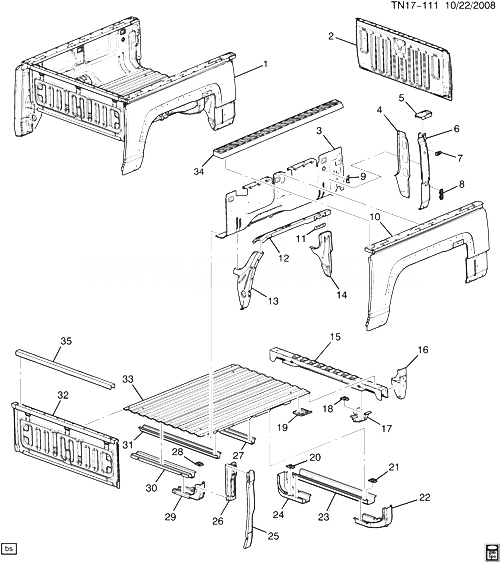

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
94730237 |
BOX, PICK UP (INCLS 3-33) |
N1 (43) |
2009-2010 |
01 |
| 002 |
94723386 |
GATE, PUBX END (SEE GROUP 17.000 НАВЕСНОЕ/PUBX FOR DETAILED ILLUSTRATED VIEW) |
N155 (43) |
2009-2010 |
01 |
| 003 |
94730238 |
PANEL, PUBX SI (PART OF 1) (INCLS 4-14, 16, 20, 22, 24-26, 28, 29) |
N155 (43) |
2009-2010 |
01 |
| 003 |
94730239 |
PANEL, PUBX SI (PART OF 1) (INCLS 4-14, 16, 20, 22, 24-26, 28, 29) |
N155 (43) |
2009-2010 |
01 |
| 004 |
|
PILLAR, PUBX S/PNL RR OTR FRT (PART OF 1, 3) |
|
2009-2010 |
|
| 005 |
94731942 |
FILLER, PUBX S/PNL RR (PART OF 1, 3) (USE T/W 94731940) |
N155 (43) |
2009-2010 |
01 |
| 005 |
94731946 |
FILLER, PUBX S/PNL RR (PART OF 1, 3) (USE T/W 94731941) |
N155 (43) |
2009-2010 |
01 |
| 006 |
|
PILLAR, PUBX S/PNL RR OTR RR (PART OF 1, 3) |
|
2009-2010 |
|
| 007 |
|
PLATE, E/GATE LK STKR ANC (PART OF 1, 3) |
|
2009-2010 |
|
| 008 |
|
PLATE, E/GATE LWR HGE NUT (BODY SI) (PART OF 1, 3) |
|
2009-2010 |
|
| 009 |
|
REINFORCEMENT, L/GATE WGE (BODY SI) (PART OF 1, 3) |
|
2009-2010 |
|
| 010 |
94731940 |
PANEL, PUBX OTR SI (PART OF 1, 3) (USE T/W 94731942) |
N155 (43) |
2009-2010 |
01 |
| 010 |
94731941 |
PANEL, PUBX OTR SI (PART OF 1, 3) (MUST ORDER T/W 94731946) |
N155 (43) |
2009-2010 |
01 |
| 011 |
94703497 |
PLATE, F/TNK FIL PIPE MTG (PART OF 1, 3, 12) |
N155 (43) |
2009-2010 |
01 |
| 012 |
94707940 |
PANEL, PUBX W/H (PART OF 1, 3) (INCLS 13, 14) |
N1 (43) |
2009-2010 |
01 |
| 012 |
94707941 |
PANEL, PUBX W/H (PART OF 1, 3) (INCLS 11, 13, 14) |
N1 (43) |
2009-2010 |
01 |
| 013 |
|
PANEL, PUBX W/H FRT (PART OF 1, 3, 12) |
|
2009-2010 |
|
| 014 |
|
PANEL, PUBX W/H RR (PART OF 1, 3, 12) |
|
2009-2010 |
|
| 015 |
94715504 |
SILL KIT, PUBX PLTF RR CR (PART OF 1) (INCLS 17, 18) |
N1 (43) |
2009-2009 |
01 |
| 016 |
|
BRACKET, PUBX E/GATE HGE MTG (PUBX SI) (PART OF 1, 3) |
|
2009-2010 |
|
| 017 |
|
BRACKET, PUBX (PART OF 1, 15) |
|
2009-2010 |
|
| 018 |
11561480 |
NUT ASM - CAGE, M12X1.75, SAE 1008 STL, GM6185M (PART OF 1, 15) |
|
2009-2010 |
02 |
| 019 |
|
PLATE, CARGO TIE DN LOOP LWR S/RL ANC (PART OF 1) |
|
2009-2010 |
|
| 020 |
11561480 |
NUT ASM - CAGE, M12X1.75, SAE 1008 STL, GM6185M (PART OF 1, 3, 22, 24) |
|
2009-2010 |
01 |
| 021 |
11561480 |
NUT ASM - CAGE, M12X1.75, SAE 1008 STL, GM6185M (PART OF 1) |
|
2009-2010 |
01 |
| 022 |
93356842 |
REINFORCEMENT, PUBX PLTF #4 CR SILL (PART OF 1, 3) (INCLS 20) |
N1 (43) |
2009-2010 |
01 |
| 023 |
|
SILL, PUBX PLTF #4 CR (PART OF 1) |
|
2009-2010 |
|
| 024 |
93356843 |
REINFORCEMENT, PUBX PLTF #4 CR SILL (PART OF 1, 3) (INCLS 20) |
N1 (43) |
2009-2010 |
01 |
| 025 |
93355799 |
FILLER, PUBX S/PNL FRT (PART OF 1, 3) |
N155 (43) |
2009-2010 |
01 |
| 025 |
93355800 |
FILLER, PUBX S/PNL FRT (PART OF 1, 3) |
N155 (43) |
2009-2010 |
01 |
| 026 |
93357665 |
POCKET, PUBX FRT STAKE (PART OF 1, 3) |
N1 (43) |
2009-2010 |
01 |
| 026 |
93357666 |
POCKET, PUBX FRT STAKE (PART OF 1, 3) |
N1 (43) |
2009-2010 |
01 |
| 027 |
|
SILL, PUBX PLTF #3 CR (PART OF 1) |
|
2009-2010 |
|
| 028 |
11561480 |
NUT ASM - CAGE, M12X1.75, SAE 1008 STL, GM6185M (PART OF 1, 3, 29) |
|
2009-2010 |
02 |
| 029 |
94731051 |
REINFORCEMENT, PUBX PLTF FRT CR SILL (PART OF 1, 3) (INCLS 28) |
N1 (43) |
2009-2010 |
01 |
| 029 |
94731052 |
REINFORCEMENT, PUBX PLTF FRT CR SILL (PART OF 1, 3) (INCLS 28) |
N1 (43) |
2009-2010 |
01 |
| 030 |
|
SILL, PUBX PLTF FRT CR (PART OF 1) |
|
2009-2010 |
|
| 031 |
|
SILL, PUBX PLTF #2 CR (PART OF 1) |
|
2009-2010 |
|
| 032 |
93356847 |
PANEL, PUBX F/END (PART OF 1) |
N1 (43) |
2009-2010 |
01 |
| 033 |
|
PLATFORM, PUBX (PART OF 1) |
|
2009-2010 |
|
| 034 |
94723424 |
MOLDING, PUBX SI UPR (GRAY) |
N1 (43) |
2009-2010 |
01 |
| 034 |
94723426 |
MOLDING, PUBX SI UPR (GRAY) |
N1 (43) |
2009-2010 |
01 |
| 035 |
94737508 |
MOLDING, PUBX FRT UPR (GRAY) |
N1 (43) |
2009-2010 |
01 |
