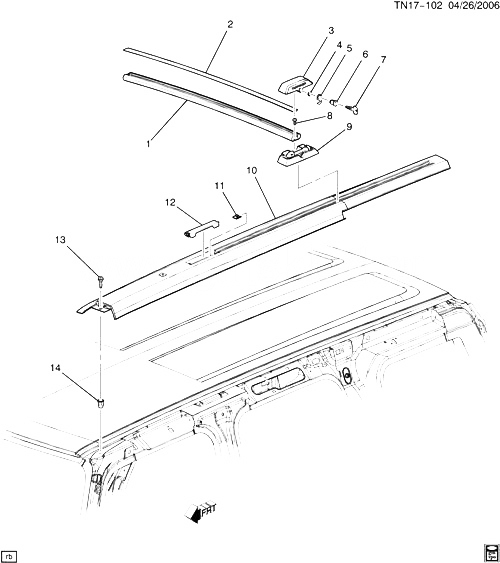

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12498492 |
RAIL PKG, LUGG CARR CR (INCLS 2-9) (GRAY) (INSTALL .20) (5.9KGS) (AL) (W/HUMMER LOGO) (T-SLOT ATCH)
| N153 (06) (BRM, V54) (EXPORT) |
2007-2010 |
01 |
|
| 001 |
12498492 |
RAIL PKG, LUGG CARR CR (INCLS 2 RAILS) (INCLS 2-9) (GRAY) (INSTALL .20) (5.9KGS) (AL) (W/HUMMER LOGO) (T-SLOT ATCH) (17.070)
| N153 (06) (SAME AS V54) |
2007-2010 |
01 |
|
| 001 |
12498493 |
RAIL PKG, LUGG CARR CR (INCLS 2-9) (CHROME LOOK) (INSTALL .20) (5.9KGS) (BRIGHT ANNODIZED AL) (W/HUMMER LOGO) (T-SLOT ATCH)
| N153 (06) (BRM, V55) (EXPORT) |
2007-2009 |
01 |
|
| 001 |
12498493 |
RAIL PKG, LUGG CARR CR (INCLS 2-9) (CHROME LOOK) (INSTALL .20) (5.9KGS) (BRIGHT ANNODIZED AL) (W/HUMMER LOGO) (T-SLOT ATCH)
| N153 (06) (HH3, P17) |
2007-2010 |
01 |
|
| 001 |
12498493 |
RAIL PKG, LUGG CARR CR (INCLS 2 RAILS) (INCLS 2-9) (CHROME LOOK) (INSTALL .20) (5.9KGS) (BRIGHT ANNODIZED AL) (W/HUMMER LOGO) (T-SLOT ATCH) (17.070)
| N153 (06) (SAME AS V55) |
2007-2010 |
01 |
|
| 002 |
88963232 |
STRIP, RF RACK CR RL (PART OF 1) (17.070) |
N1 |
2007-2009 |
02 |
| 003 |
12499398 |
COVER, LUGG CARR CR RL SUPT (INCLS 4-7) (PART OF 1) (INCLS LOCK ; KEY SP1, HOOK ; CLIP) (17.070) |
N153 |
2007-2010 |
AR |
| 003 |
12499399 |
COVER, LUGG CARR CR RL SUPT (INCLS 4-7) (PART OF 1) (INCLS LOCK ; KEY SP2, HOOK ; CLIP) (17.070) |
N153 |
2007-2010 |
AR |
| 003 |
12499400 |
COVER, LUGG CARR CR RL SUPT (INCLS 4-7) (PART OF 1) (INCLS LOCK ; KEY SP3, HOOK ; CLIP) (17.070) |
N153 |
2007-2010 |
AR |
| 003 |
12499401 |
COVER, LUGG CARR CR RL SUPT (INCLS 4-7) (PART OF 1) (INCLS LOCK ; KEY SP4, HOOK ; CLIP) (17.070) |
N153 |
2007-2010 |
AR |
| 003 |
12499402 |
COVER, LUGG CARR CR RL SUPT (INCLS 4-7) (PART OF 1) (INCLS LOCK ; KEY SP5, HOOK ; CLIP) (17.070) |
N153 |
2007-2010 |
AR |
| 004 |
|
CLIP, RF RACK MT (PART OF 1, 3) |
|
2007-2010 |
|
| 005 |
|
HOOK, LUGG CARR CR RL CVR (PART OF 1, 3) |
|
2007-2010 |
|
| 006 |
|
CYLINDER, RF RACK LK (PART OF 1, 3) |
|
2007-2010 |
|
| 007 |
88963243 |
KEY, LUGG CARR CR RL SUPT CVR (PART OF 1, 3) (CODE SP1) (17.070) |
N153 (06) |
2007-2010 |
01 |
| 007 |
88963244 |
KEY, LUGG CARR CR RL SUPT CVR (PART OF 1, 3) (CODE SP2) (17.070) |
N153 (06) |
2007-2010 |
01 |
| 007 |
88963245 |
KEY, LUGG CARR CR RL SUPT CVR (PART OF 1, 3) (CODE SP3) (17.070)
| N153 (06) |
2007-2010 |
01 |
|
| 007 |
88963246 |
KEY, LUGG CARR CR RL SUPT CVR (PART OF 1, 3) (CODE SP4) (17.070) |
N153 (06) |
2007-2010 |
01 |
| 007 |
88963247 |
KEY, LUGG CARR CR RL SUPT CVR (PART OF 1, 3) (CODE SP5) (17.070) |
N153 (06) |
2007-2010 |
01 |
| 008 |
11561015 |
SCREW-M8X1.25X21.5, 15 THD, 17 OD, 9.8, GMW4700ZNNI BLACK (PART OF 1) |
|
2007-2010 |
02 |
| 009 |
|
SUPPORT, LUGG CARR CR RL (PART OF 1) |
|
2007-2010 |
|
| 010 |
25830074 |
RAIL, LUGG CARR SI (INCLS 11, 12) (USE ON VEHICLES BUILT ON/AFTER 08/29/07)
| N153 (06) |
2008-2010 |
01 |
|
| 010 |
25830075 |
RAIL, LUGG CARR SI (INCLS 11, 12) (IF THE TIE DOWN LOOPS ARE REQUIRED ORDER PKG # 17801708) (USE ON VEHICLES BUILT ON/AFTER 08/29/07) |
N153 (06) |
2008-2010 |
01 |
| 011 |
11569959 |
БОЛТ, LUGG CARR SI RL (PART OF 10) |
N153 (06) |
2007-2010 |
14 |
| 012 |
|
COVER, LUGG CARR S/RL FRT FIN (PART OF 10) |
|
2007-2010 |
|
| 013 |
11518705 |
SCREW, PAN TORX HD, W/WA ; SEAL, M6X1X27, 21 THD, 12.5O.D., 9.8, 6138M (LUGG CARR SI RL) |
|
2007-2010 |
14 |
| 014 |
11609567 |
NUT-INSERT (RIVNUT)M6X1, 9.6 HOLE, 16.25 LEN, 14.65 OD, SAE1008 STL, GMW32 (LUGG CARR S/RL) (8.914) |
|
2007-2010 |
14 |
