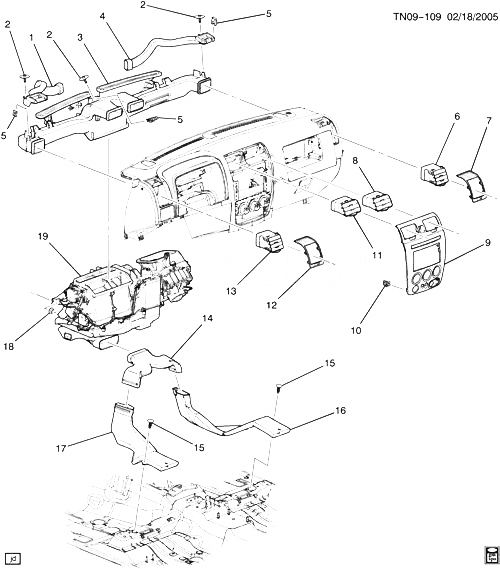

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10396868 |
DUCT, SI WDO DEFG OTLT (INCLS 5) |
N1 (EXC RHD) |
2007-2010 |
01 |
| 001 |
15818830 |
DUCT, SI WDO DEFG OTLT (INCLS 5) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 002 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (SI WDO DEFG OTLT)
|
2006-2010 |
05 |
|
| 003 |
|
DUCT, AIR DISTR CTR (INCLS 5) |
(RHD) |
2009-2010 |
|
| 003 |
10396864 |
DUCT, AIR DISTR CTR (INCLS 5) |
N1 (EXC RHD) |
2007-2010 |
01 |
| 004 |
10396900 |
DUCT, SI WDO DEFG OTLT (INCLS 5) |
N1 (EXC RHD) |
2007-2010 |
01 |
| 004 |
15818826 |
DUCT, SI WDO DEFG OTLT (INCLS 5) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 005 |
11516993 |
ГАЙКА, M4.2X1.41 (PART OF 1, 3, 4) |
|
2006-2010 |
03 |
| 006 |
25816720 |
GRILLE, I/P OTR AIR OTLT (INCLS 7) |
N1 |
2006-2010 |
01 |
| 007 |
15797628 |
BEZEL, I/P OTR AIR OTLT (PART OF 6)
| N1 |
2006-2010 |
01 |
|
| 008 |
15787617 |
GRILLE, I/P CTR AIR OTLT |
N1 |
2006-2010 |
01 |
| 009 |
25811875 |
PLATE, I/P ACSRY TR (INCLS 10) (QUEST) (CENTER STACK ASM)
| N1 |
2006-2009 |
01 |
|
| 010 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 9)
|
2006-2010 |
07 |
|
| 011 |
15787616 |
GRILLE, I/P CTR AIR OTLT |
N1 |
2006-2010 |
01 |
| 012 |
15797627 |
BEZEL, I/P OTR AIR OTLT (PART OF 13) |
N1 |
2006-2010 |
01 |
| 013 |
25816721 |
GRILLE, I/P OTR AIR OTLT (INCLS 12) |
N1 |
2008-2010 |
01 |
| 014 |
15916668 |
DUCT, FLR RR AIR OTLT |
N1 |
2006-2010 |
01 |
| 015 |
15614750 |
RETAINER, FLR FRT AIR OTLT DUCT (PUSH ON) (BLACK) (26 O.D., 6 DIA) (NYLON) (2.559) |
N1 (06-43) |
2009-2010 |
02 |
| 016 |
10396904 |
DUCT, FLR AIR OTLT |
N1 |
2006-2010 |
01 |
| 017 |
10396903 |
DUCT, FLR AIR OTLT |
N1 |
2006-2010 |
01 |
| 018 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR ; A/C EVPR MDL)
|
2006-2010 |
07 |
|
| 019 |
|
MODULE, HTR ; A/C EVPR ; BLO (SEE GROUP 09.000 A/C ; HTR MODULE ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
