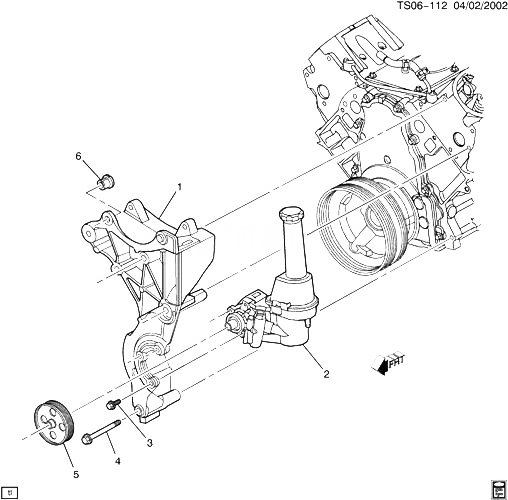

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12567922 |
BRACKET, GEN ; P/S PUMP (INCLS 6) (INCLS SPACER) |
N1 (LH8) |
2008-2009 |
01 |
| 002 |
|
PUMP, P/S (SEE GROUP 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASM FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2010 |
|
| 003 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (P/S PUMP)
|
2008-2010 |
03 |
|
| 004 |
11519214 |
БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN ; P/S PUMP BRKT) |
|
2008-2010 |
04 |
| 005 |
12605507 |
PULLEY, P/S PUMP |
N1 (06-43) (LH8) |
2009-2009 |
01 |
| 006 |
12550090 |
SPACER, GEN ; P/S PUMP BRKT (PART OF 1)
| N1 (LH8) |
2008-2009 |
02 |
|
