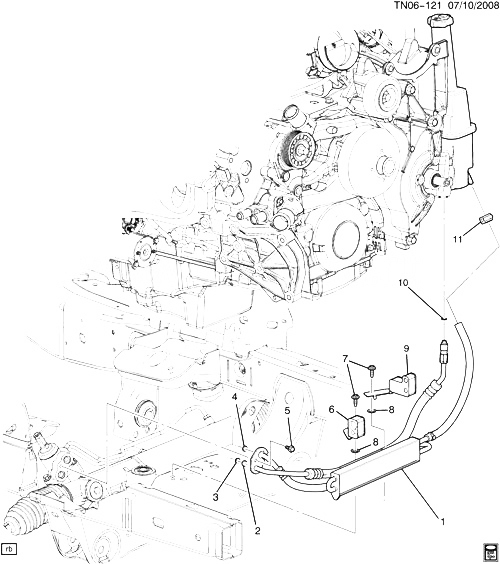

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HOSE, P/S GR INL ; OTLT (INCLS 2-11) |
|
2009-2010 |
|
| 002 |
19122175 |
SEAL, P/S GR INL PIPE (O RING) (PART OF 1) |
N1 |
2009-2010 |
01 |
| 003 |
|
GASKET, P/S GR INL HOSE FTG (PART OF 1) |
|
2009-2010 |
|
| 004 |
19122176 |
SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 1) |
N1 |
2009-2010 |
01 |
| 005 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 1)
|
2009-2010 |
01 |
|
| 006 |
|
CLAMP, P/S GR INL ; OTLT PIPE (PART OF 1) |
|
2009-2009 |
|
| 007 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (PART OF 1) |
|
2009-2010 |
02 |
| 008 |
|
WASHER, P/S FLUID CLR (PART OF 1) |
|
2009-2009 |
|
| 009 |
|
CLAMP, P/S GR INL ; OTLT PIPE (PART OF 1) |
|
2009-2009 |
|
| 010 |
15869849 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 1) (6.609)
| N1 |
2009-2010 |
01 |
|
| 011 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 1) |
|
2009-2010 |
01 |
