| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

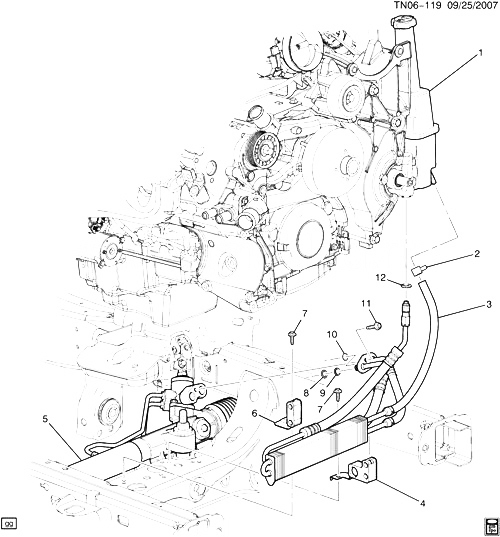

| 001 |
15867424 |
PUMP, P/S (SEE GROUP 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASSEMBLY FOR DETAILED ILLUSTRATED VIEW)
| N1 (LH8) |
2008-2009 |
01 |
|
| 002 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 3) |
|
2008-2010 |
01 |
| 003 |
25960637 |
HOSE, P/S GR INL ; OTLT (INCLS 2, 4, 6-12)
| N1 (LH8) (EXC RHD) |
2009-2009 |
01 |
|
| 004 |
|
BRACKET, P/S GR INL ; OTLT PIPE CLIP (PART OF 3) |
|
2009-2009 |
|
| 005 |
94725465 |
GEAR, STRG (W/ STRG LNKG TIE ROD) (SEE GROUP 06.000 STEERING GEAR ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N153 (06) (EXC RHD) |
2009-2009 |
01 |
| 005 |
94725465 |
GEAR, STRG (W/ STRG LNKG TIE ROD) (SEE GROUP 06.000 STEERING GEAR ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N155 (43) (EXC RHD) |
2009-2010 |
01 |
| 006 |
|
BRACKET, P/S GR INL ; OTLT PIPE CLIP (PART OF 3) |
|
2009-2009 |
|
| 007 |
11570136 |
БОЛТ, HEX HD, W/CON SPR WA, M6X1X23, 14 THD, 17 O.D., 8.8, GMW3359 (PART OF 3) |
|
2008-2010 |
02 |
| 008 |
19122175 |
SEAL, P/S GR INL PIPE (O RING) (PART OF 3) |
N1 |
2008-2010 |
01 |
| 009 |
|
GASKET, P/S GR INL HOSE FTG (PART OF 3) |
|
2008-2010 |
|
| 010 |
19122176 |
SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 3) |
N1 |
2009-2010 |
01 |
| 011 |
11516484 |
BOLT/SCREW, M6X1X25, 17THD, 14.2 OD, 9.8, 7114M, MACH, 6MM P-POINT (PART OF 3) |
|
2008-2010 |
01 |
| 012 |
15869849 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 3) (6.609)
| N1 |
2008-2010 |
01 |
|
