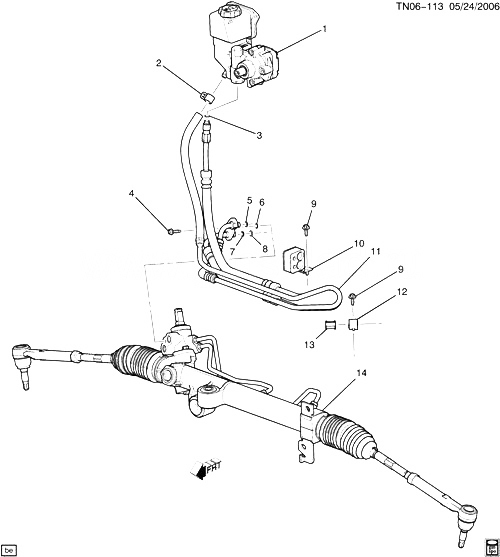

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25977712 |
PUMP, P/S (SEE GROUP 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N1 (06) (LLR) |
2008-2010 |
01 |
| 002 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 11) |
|
2007-2010 |
01 |
| 003 |
19122176 |
SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 11) |
N1 |
2009-2010 |
01 |
| 004 |
|
БОЛТ, P/S GR INL ; OTLT PIPE RET (PART OF 11) |
|
2009-2010 |
|
| 005 |
19122175 |
SEAL, P/S GR INL PIPE (O RING) (PART OF 11) |
N1 |
2007-2010 |
01 |
| 006 |
|
RETAINER, P/S GR INL ; OTLT PIPE (PART OF 11) |
|
2009-2010 |
|
| 007 |
|
GASKET, P/S GR INL HOSE FTG (PART OF 11) |
|
2007-2010 |
|
| 008 |
15869849 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 11) (6.609)
| N1 |
2007-2010 |
01 |
|
| 009 |
|
БОЛТ, P/S GR INL ; OTLT PIPE CLIP (PART OF 11) |
|
2009-2010 |
|
| 010 |
|
CLAMP, P/S GR INL ; OTLT HOSE (PART OF 11) |
|
2009-2010 |
|
| 011 |
25849060 |
HOSE, P/S GR INL ; OTLT (INCLS 2-10, 12, 13) |
N1 (LLR, RHD) |
2009-2010 |
01 |
| 012 |
|
CLAMP, P/S GR INL ; OTLT HOSE (PART OF 11) |
|
2009-2010 |
|
| 013 |
|
CLAMP, P/S GR INL ; OTLT PIPE (PART OF 11) |
|
2009-2010 |
|
| 014 |
24300503 |
GEAR, STRG (W/ STRG LNKG TIE ROD) (SEE GROUP 06.000 STEERING GEAR ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N1 (RHD) (EXPORT) |
2009-2010 |
01 |
