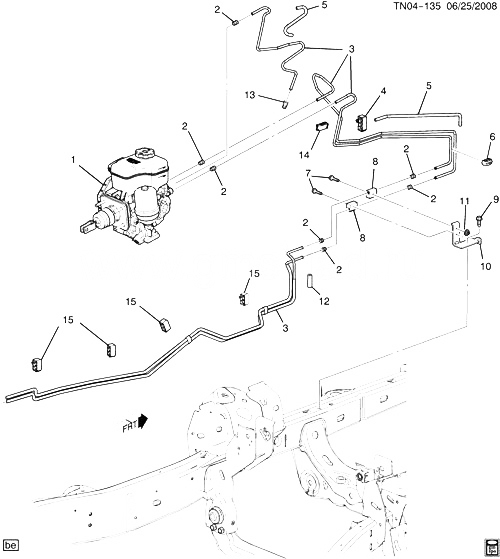

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
N155 (43) |
2009-2010 |
01 |
| 002 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0, 16.0 THK) |
N1 |
2009-2010 |
AR |
| 003 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N1 |
2009-2010 |
AR |
|
| 004 |
15163617 |
CLIP, BRK PIPE (3-WAY) |
N1 |
2009-2010 |
AR |
| 005 |
88964150 |
PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) |
N1 |
2009-2010 |
AR |
| 006 |
22692262 |
CLIP, BRK PIPE (2-WAY) |
N1 |
2009-2010 |
01 |
| 007 |
11516425 |
БОЛТ, M6X1X30, POR 9.8 (FRT ; RR BRK PIPE FTG BRKT) |
|
2009-2010 |
02 |
| 008 |
15123418 |
FITTING, FRT BRK FRT PIPE |
N1 |
2009-2010 |
02 |
| 009 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (FRT ; RR BRK PIPE FTG BRKT)
|
2009-2010 |
01 |
|
| 010 |
15239175 |
BRACKET, FRT ; RR BRK PIPE FTG (INCLS 11) (INCLS BRKT AND NUTS) |
N1 |
2009-2010 |
01 |
| 011 |
|
NUT, FRT ; RR BRK PIPE FTG BRKT (PART OF 10) |
|
2009-2010 |
|
| 012 |
15806877 |
GROMMET, BRK PIPE |
N1 |
2009-2010 |
02 |
| 014 |
15103327 |
CLIP, BRK PIPE (HOLDS 3 BRAKE LINES) |
N1 |
2009-2010 |
01 |
| 015 |
15163618 |
CLIP, BRK PIPE (HOLDS 2 DIA5.19 BRAKELINES, FIT DIA9 HOLE IN 3.0 THK PNL NYLON) |
N1 |
2009-2010 |
04 |
