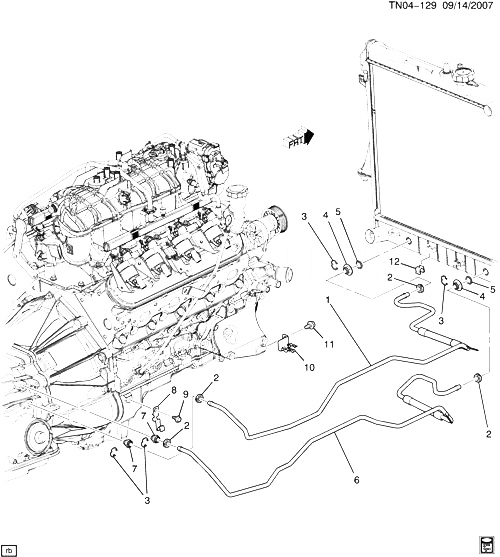

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24301193 |
PIPE, TRANS FLUID CLR INL (INCLS 2) |
N153 (06) (LH8, M30, RHD) (EXPORT) |
2009-2009 |
01 |
| 001 |
25802164 |
PIPE, TRANS FLUID CLR INL (INCLS 2) |
N1 (06-43) (LH8, M30) (EXC RHD) |
2009-2009 |
01 |
| 002 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 6) (PLASTIC RETAINER) (ACDelco #15052228)
| N1 (M30, RHD) (EXPORT) |
2009-2010 |
04 |
|
| 003 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 7) (EXPANDING SPRING WIRE) (ACDelco #24205103)
| N1 (M30) |
2008-2010 |
01 |
|
| 004 |
|
CONNECTOR, TRANS FLUID CLR PIPE (SEE GROUP 01.000 КРЕПЛЕНИЕ РАДИАТОРА И СОПРЯЖЕННЫЕ ДЕТАЛИ ; RELATED FOR DETAILED ILLUSTRATED VIEW) (1.219) |
|
2008-2010 |
|
| 005 |
|
SEAL, TRANS FLUID CLR PIPE FTG (SEE GROUP 01.000 КРЕПЛЕНИЕ РАДИАТОРА И СОПРЯЖЕННЫЕ ДЕТАЛИ ; RELATED FOR DETAILED ILLUSTRATEDVIEW) (1.219) |
|
2008-2010 |
|
| 006 |
24301192 |
PIPE, TRANS FLUID CLR OTLT (INCLS 2) |
N153 (06) (LH8, M30, RHD) (EXPORT) |
2009-2009 |
01 |
| 006 |
25827384 |
PIPE, TRANS FLUID CLR OTLT (INCLS 2) |
N1 (LH8, M30) (EXC RHD) |
2009-2009 |
01 |
| 007 |
24236579 |
FITTING, TRANS FLUID CLR PIPE (INCLS 3) (9/16-18 UNF-2A) (QUICK CONNECT) (ALUM BODY) |
N1 (M30) |
2009-2010 |
02 |
| 008 |
10344420 |
CLIP, TRANS FLUID CLR PIPE (53X31X19) |
N1 (LH8, MD8, M30, JJA) |
2009-2009 |
01 |
| 009 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (TRANS FLUID CLR PIPE CLIP) (T/W 12345493 REPLCS 25534835)
|
2008-2010 |
01 |
|
| 010 |
25865100 |
CLIP, TRANS FLUID CLR PIPE |
N1 (LH8, M30) (EXC RHD) |
2009-2009 |
01 |
| 010 |
25897284 |
CLIP, TRANS FLUID CLR PIPE (METAL) (SI MT TO ENG) |
N153 (06) (LH8, RHD) |
2009-2009 |
01 |
| 011 |
11588736 |
БОЛТ, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (TRANS FLUID CLR PIPE CLIP) |
|
2008-2010 |
01 |
| 012 |
11561364 |
CLIP, 9.5MM DIA (TRANS FLUID CLR PIPE) (4.128) |
|
2008-2010 |
01 |
