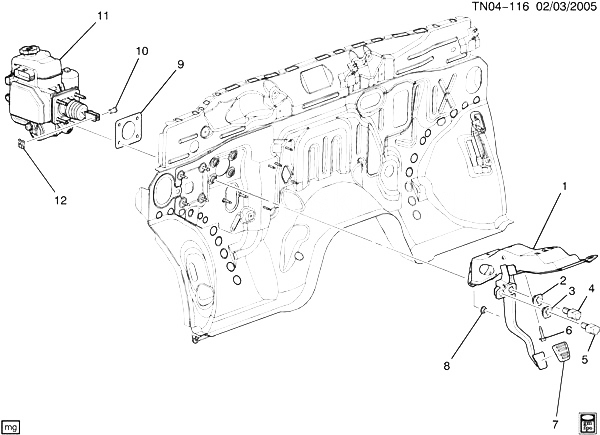

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15134585 |
ПЕДАЛЬ, ТОРМОЗА (W/BRKT) |
N1 (MA5) |
2006-2010 |
01 |
| 001 |
15935650 |
ПЕДАЛЬ, ТОРМОЗА (W/BRKT) |
N1 (M30) (EXC RHD) |
2007-2010 |
01 |
| 001 |
15935650 |
ПЕДАЛЬ, ТОРМОЗА (W/BRKT) |
N1 (MD8) (EXC RHD) |
2009-2010 |
01 |
| 002 |
10418917 |
RETAINER, CRCONT REL ; TCC SW |
N153 (06) |
2006-2010 |
01 |
| 002 |
10418917 |
RETAINER, CRCONT REL ; TCC SW (3.887) |
N153 (06) |
2006-2010 |
01 |
| 003 |
10418917 |
RETAINER, S/LP SW (3.887) |
N1 |
2006-2010 |
01 |
| 004 |
15109338 |
SWITCH, CRCONT REL ; TCC (MUST ORDER TOGETHER WITH P/N 10418917)
| N1 |
2006-2010 |
01 |
|
| 005 |
15914909 |
SWITCH, S/LP (ACDelco #D1596H) (MUST ORDER TOGETHER WITH P/N 10418917)
| N1 |
2006-2010 |
01 |
|
| 006 |
11610010 |
БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (BRK PED BRKT)
|
2006-2010 |
02 |
|
| 007 |
15108399 |
PAD, BRK PED |
N1 (MA5) |
2006-2010 |
01 |
| 007 |
15134587 |
PAD, BRK PED |
N1 (MD8, M30) |
2009-2010 |
01 |
| 008 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BRK PED BRKT) (8.915) (ACDelco #11514596) |
|
2006-2010 |
04 |
| 009 |
10386657 |
GASKET, BRK M/CYL SPCR (*KIT1) |
N1 |
2006-2010 |
02 |
| 010 |
15186474 |
PIN, BRK PED PUSH ROD CLV |
N1 |
2006-2010 |
01 |
| 011 |
|
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 012 |
15186473 |
RETAINER, BRK PED PUSH ROD |
N1 (06-43) |
2009-2010 |
01 |
| K01 |
15240725 |
GASKET KIT, ELEK BRK ; TRACT CONT MDL (INCLS 9) |
N1 |
2006-2010 |
01 |
