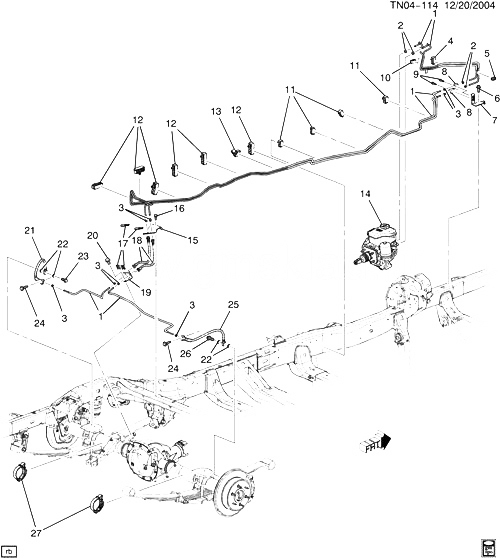

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N1 |
2006-2010 |
AR |
|
| 002 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0, 16.0 THK) |
N1 |
2006-2010 |
04 |
| 003 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0, 16.0 THK) |
N1 |
2006-2010 |
AR |
| 004 |
15163617 |
CLIP, BRK PIPE (3-WAY) |
N1 |
2006-2010 |
01 |
| 005 |
22692262 |
CLIP, BRK PIPE (2-WAY) |
N1 |
2006-2010 |
01 |
| 006 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (FRT ; RR BRK PIPE FTG BRKT)
|
2006-2010 |
01 |
|
| 007 |
15239175 |
BRACKET, FRT ; RR BRK PIPE FTG (INCLS BRKT AND NUTS) |
N1 |
2009-2010 |
01 |
| 008 |
15123418 |
FITTING, FRT BRK FRT PIPE |
N1 |
2006-2010 |
02 |
| 009 |
11516425 |
БОЛТ, M6X1X30, POR 9.8 (FRT ; RR BRK PIPE FTG BRKT) |
|
2006-2010 |
02 |
| 010 |
15103327 |
CLIP, BRK PIPE (HOLDS 3 BRAKE LINES) |
N1 |
2006-2010 |
01 |
| 011 |
15163618 |
CLIP, BRK PIPE (HOLDS 2 DIA5.19 BRAKELINES, FIT DIA9 HOLE IN 3.0 THK PNL NYLON) |
N1 |
2006-2010 |
04 |
| 012 |
15163622 |
CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK ; FUEL PIPE) |
|
2006-2010 |
06 |
| 013 |
15170398 |
CLIP, BRK ; FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) (4.686) |
N1 |
2006-2010 |
01 |
| 013 |
15170398 |
CLIP, BRK ; FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) |
N1 |
2006-2010 |
01 |
| 014 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
N153 (06) |
2009-2010 |
01 |
| 015 |
|
BRACKET, RR BRK INTER HOSE (PART OF 18) |
|
2009-2010 |
|
| 016 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2006-2010 |
01 |
|
| 017 |
|
RETAINER, RR BRK HOSE (PART OF 18) |
|
2009-2010 |
|
| 018 |
15112473 |
HOSE, RR BRK (INCLS 15, 17, 19, 20)
| N153 (06) |
2009-2010 |
01 |
|
| 019 |
|
BRACKET, RR BRK INTER HOSE (PART OF 18) |
|
2009-2010 |
|
| 020 |
|
БОЛТ, RR BRK HOSE BRKT (PART OF 18) |
|
2009-2010 |
|
| 021 |
15869088 |
HOSE, RR BRK (392MM LG) (INCLS 22, 23) (ACDelco #176-1469)
| N1 |
2007-2010 |
01 |
|
| 022 |
21012386 |
WASHER, RR BRK HOSE (PART OF 21, 25) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| N1 |
2006-2010 |
04 |
|
| 023 |
11569669 |
БОЛТ, RR BRK HOSE (PART OF 21) (M10X1.5X23, 13THD) (11MM SOCKET) |
N1 |
2006-2010 |
02 |
| 024 |
11515928 |
БОЛТ, WEX W/CON WA (6X1X35) (PZOR 9.8) (RR BRK HOSE) |
|
2006-2010 |
02 |
| 025 |
15869087 |
HOSE, RR BRK (392MM LG) (INCLS 22, 26) (ACDelco #176-1468)
| N1 |
2006-2010 |
01 |
|
| 026 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PART OF 25) (T/W 12345493 REPLCS 25534835)
|
2006-2010 |
02 |
|
| 027 |
15234822 |
STRAP, RR BRK PIPE |
N1 |
2006-2010 |
02 |
