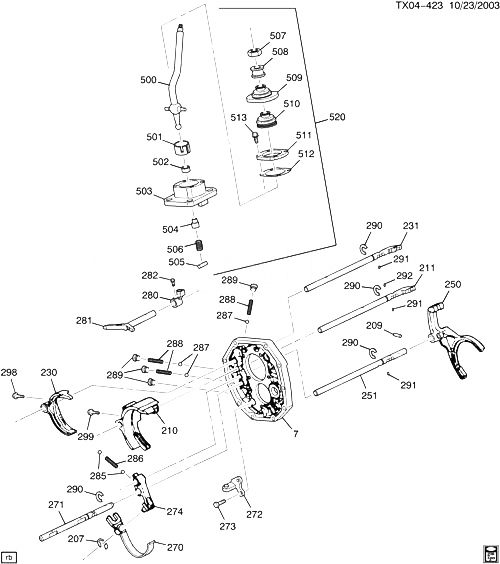

(TX04-423) - 2006-2010 N1 5-ТИ СКОРОСТНАЯ РУЧНАЯ ТРАНСМИССИЯ PART 5 УПРАВЛЕНИЕ ПЕРЕКЛЮЧЕНИЕМ COMPONENTS(MA5) HUMMER - H3T 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
007 CASE, TRANS INTER 2006-2010
207 89048297 RING, REV SHFT FORK RET N1 (MA5) 2006-2010 01
209 89048289 PIN, 5TH SHFT FORK N1 (MA5) 2006-2010 01
210 89048278 FORK, 1ST ; 2ND SHFT N1 (MA5) 2006-2010 01
211 89048283 SHAFT, 1ST ; 2ND SHFT N1 (MA5) 2006-2010 01
230 19180578 FORK, 3RD ; 4TH SHFT N1 (MA5) 2006-2010 01
231 89048284 SHAFT, 3RD ; 4TH SHFT N1 (MA5) 2006-2010 01
250 89059722 FORK, 5TH ; REV SHFT N1 (MA5) 2006-2010 01
251 89048285 SHAFT, 5TH SHFT N1 (MA5) 2006-2010 01
270 89048280 FORK, REV SHFT N1 (MA5) 2006-2010 01
271 89048286 SHAFT, REV SHFT N1 (MA5) 2006-2010 01
272 89048281 BRACKET, REV SHFT FORK N1 (MA5) 2006-2010 01
273 89048243 БОЛТ, REV SHFT FORK BRKT (4.412) N1 (MA5) 2006-2010 02
274 89048277 LEVER, REV SHFT N1 (MA5) 2006-2010 01
280 89059395 SOCKET, SHFT CONT LVR (ACDelco #89059395) N1 (MA5) 2006-2010 01
281 89048251 SHAFT, SHFT CONT N1 (MA5) 2006-2010 01
282 89048271 БОЛТ, SHFT CONT LVR SOCKET N1 (MA5) 2006-2010 01
285 89048292 BALL, REV SHFT SHF DTNT N1 (MA5) 2006-2010 02
286 89048294 SPRING, REV SHFT SHF DTNT N1 (MA5) 2006-2010 01
287 89048292 BALL, SHFT SHF DTNT N1 (MA5) 2006-2010 03
288 89048295 SPRING, SHFT SHF DTNT N1 (MA5) 2006-2010 03
289 89048273 PLUG, SHFT SHF DTNT N1 (MA5) 2006-2010 04
290 89048290 RING, 1ST ; 2ND SHFT SHF RET (4.303) (ACDelco #89048290) N1 (MA5) 2006-2010 01
290 89048290 RING, 3RD ; 4TH SHFT SHF RET (4.303) (ACDelco #89048290) N1 (MA5) 2006-2010 01
290 89048290 RING, 5TH SHFT SHF RET (4.303) (ACDelco #89048290) N1 (MA5) 2006-2010 01
290 89048290 RING, REV SHFT SHF RET (4.303) (ACDelco #89048290) N1 (MA5) 2006-2010 01
291 89048293 PIN, SHFT SHF INTLK N1 (MA5) 2006-2010 01
292 89048288 PIN, 1ST ; 2ND SHFT FORK N1 (MA5) 2006-2010 01
298 89048287 БОЛТ, 3RD ; 4TH SHFT FORK N1 (MA5) 2006-2010 01
299 89048287 БОЛТ, 1ST ; 2ND SHFT FORK N1 (MA5) 2006-2010 01
500 89058576 LEVER, SHFT CONT (INCLS 501, 502, 507-512) N1 (MA5) 2006-2010 01
501 SEAT, SHFT CONT LVR SPR (PART OF 500) 2006-2010
502 89048255 BUSHING, SHFT CONT LVR SHF (PART OF 500) N1 (MA5) 2006-2010 01
503 HOUSING, SHFT CONT (PART OF 520) 2006-2010
504 PLUNGER, SHFT CONT LVR (PART OF 520) 2006-2010
505 PIN, SHFT CONT LVR SHF (PART OF 520) 2006-2010
506 SPRING, SHFT CONT LVR SHF (PART OF 520) 2006-2010
507 ГАЙКА, M/TRNS CONT LVR (PART OF 500) 2006-2010
508 SEAL, SHFT CONT LVR SHF (PART OF 500) 2006-2010
509 89048260 BOOT, M/TRNS CONT LVR (PART OF 500) (BOOT ONLY) N1 (MA5) 2006-2010 01
510 89048259 BOOT, SHFT CONT SHF (PART OF 500) N1 (MA5) 2006-2010 01
511 RETAINER, SHFT CONT LVR SPR ST (PART OF 500) 2006-2010
512 89048261 GASKET, CONT LVR HSG (PART OF 500) N1 (MA5) 2006-2010 01
513 89048267 БОЛТ, SHFT CONT LVR SPR ST RET (4.104) N1 (MA5) 2006-2010 04
520 89059391 HOUSING, SHFT CONT (INCLS 503-506) (4.006) N1 (MA5) 2006-2010 01
