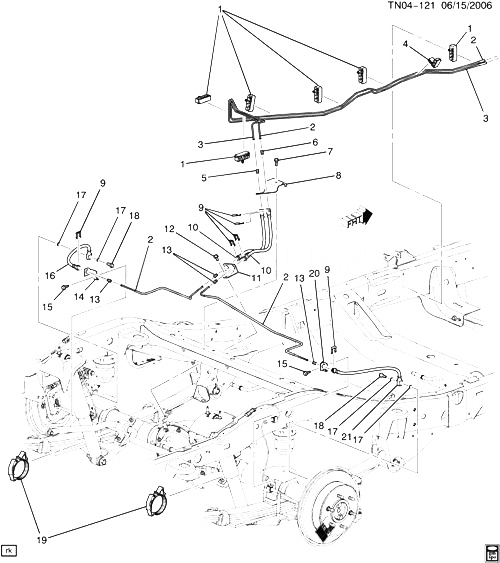

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15163622 |
CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK ; FUEL PIPE) |
|
2007-2010 |
06 |
| 002 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N1 |
2007-2010 |
AR |
|
| 003 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N1 |
2007-2010 |
AR |
|
| 004 |
15170398 |
CLIP, BRK ; FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) |
N1 |
2007-2010 |
01 |
| 005 |
15170399 |
NUT, RR BRK PIPE (M10X1.0, 16.0 THK) |
N1 |
2007-2010 |
04 |
| 006 |
15170399 |
NUT, RR BRK PIPE (M10X1.0, 16.0 THK) |
N1 |
2007-2010 |
04 |
| 007 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082)
|
2007-2010 |
01 |
|
| 008 |
|
BRACKET, RR BRK INTER HOSE (PART OF 10) |
|
2009-2010 |
|
| 009 |
|
RETAINER, RR BRK HOSE (PART OF 10, 16, 21) |
|
2009-2010 |
|
| 010 |
15112473 |
HOSE, RR BRK ( (INCLS 8, 9, 11, 12))
| N153 (06) |
2009-2010 |
01 |
|
| 011 |
|
BRACKET, RR BRK INTER HOSE (PART OF 10) |
|
2009-2010 |
|
| 012 |
|
БОЛТ, RR BRK HOSE BRKT (PART OF 10) |
|
2009-2010 |
|
| 013 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0, 16.0 THK) |
N1 |
2007-2010 |
04 |
| 014 |
|
BRACKET, RR BRK HOSE (PART OF 16) |
|
2009-2010 |
|
| 015 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE) (ACDelco #11570082)
|
2007-2010 |
02 |
|
| 016 |
15869088 |
HOSE, RR BRK (392MM LG) (INCLS 9, 14, 17, 18) (ACDelco #176-1469)
| N1 |
2007-2010 |
01 |
|
| 017 |
21012386 |
WASHER, RR BRK HOSE (PART OF 16, 21) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| N1 |
2007-2010 |
04 |
|
| 018 |
11569669 |
БОЛТ, RR BRK HOSE (PART OF 16, 21) (M10X1.5X23, 13THD) (11MM SOCKET) |
N1 |
2007-2010 |
02 |
| 019 |
15234822 |
STRAP, RR BRK PIPE |
N1 |
2007-2010 |
02 |
| 020 |
|
BRACKET, RR BRK HOSE (PART OF 21) |
|
2009-2010 |
|
| 021 |
15869087 |
HOSE, RR BRK (392MM LG) (INCLS 9, 17, 18, 20) (ACDelco #176-1468)
| N1 |
2007-2010 |
01 |
|
