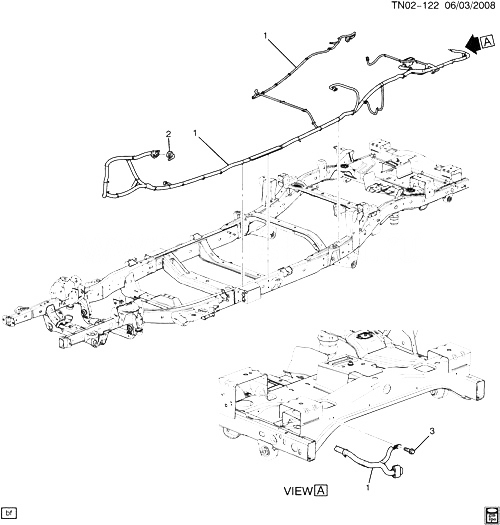

(TN02-122) - 2009-2010 N1(43) ЖГУТ ПРОВОДОВ/CHASSIS HUMMER - H3T 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19117848 HARNESS, CHAS WRG N155 (43) (LH8) (EXC G94, UVC, UY7) 2009-2009 01
001 19117848 HARNESS, CHAS WRG N155 (43) (LH8, G94) (EXC UVC, UY7) 2009-2009 01
001 19117849 HARNESS, CHAS WRG N155 (43) (LLR, G94, UVC, UY7) 2009-2010 01
001 19117849 HARNESS, CHAS WRG N155 (43) (LLR, G94, UY7) (EXC UVC) 2009-2010 01
001 19117849 HARNESS, CHAS WRG N155 (43) (LLR, UVC, UY7) (EXC G94) 2009-2010 01
001 19117849 HARNESS, CHAS WRG N155 (43) (LLR, UY7) (EXC G94, UVC) 2009-2010 01
001 19117850 HARNESS, CHAS WRG N155 (43) (LLR) (EXC G94, UVC, UY7) 2009-2010 01
001 19117850 HARNESS, CHAS WRG N155 (43) (LLR, G94) (EXC UVC, UY7) 2009-2010 01
001 19117851 HARNESS, CHAS WRG N155 (43) (LH8, G94, UVC, UY7) 2009-2009 01
001 19117851 HARNESS, CHAS WRG N155 (43) (LH8, G94, UY7) (EXC UVC) 2009-2009 01
001 19117851 HARNESS, CHAS WRG N155 (43) (LH8, UVC, UY7) (EXC G94) 2009-2009 01
001 19117851 HARNESS, CHAS WRG N155 (43) (LH8, UY7) (EXC G94, UVC) 2009-2009 01
002 HARNESS, BODY WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) 2009-2010
003 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS RR WRG HARN GRD) 2009-2010 01
