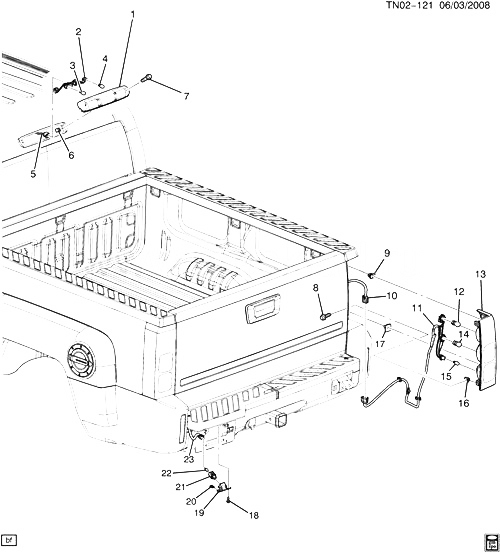

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25890530 |
LAMP, HIGH MT STOP ; CARGO (INCLS 2-4) (GSKT ONLY SERVICED WITH LAMP) |
N155 (43) |
2009-2010 |
01 |
| 001 |
25890530 |
LAMP, HIGH MT STOP ; CARGO (INCLS 2-4) (GSKT ONLY SERVICED WITH LAMP) (2.679) |
N155 (43) |
2009-2010 |
01 |
| 002 |
|
HARNESS, HIGH MT S/LP (PART OF 1) |
|
2009-2010 |
|
| 003 |
09437173 |
BULB, 12 VOLTS, 1 AMP, 12 CP, TRADE NO. 912 (PART OF 1) (ACDelco #L912) |
|
2009-2010 |
02 |
| 004 |
09437173 |
BULB, 12 VOLTS, 1 AMP, 12 CP, TRADE NO. 912 (PART OF 1) (ACDelco #L912) |
|
2009-2010 |
02 |
| 005 |
|
HARNESS, DM LP WRG (SEE GROUP 16.000 ОТДЕЛКА-ИНТЕРЬЕР-ROOF ; СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 006 |
11513599 |
ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (HIGH MT S/LP) (ACDelco #11513599) |
|
2009-2010 |
02 |
| 007 |
11562078 |
SCREW-ROUNDWA, M4.2X1.41X45, 39.2 THD, 8.5 OD, 6010M STL, GMW4205 (HIGH MT S/LP) |
|
2009-2010 |
02 |
| 008 |
11609406 |
SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (T/LP)
|
2009-2010 |
04 |
|
| 009 |
11562421 |
RETAINER, T/LP (6-WAY, 0.95-1.2MM PNL RNG, NYLON 6/6)
| N1 |
2009-2010 |
02 |
|
| 010 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 011 |
94723171 |
HARNESS, T/LP WRG (PART OF 13) |
N155 (43) |
2009-2010 |
01 |
| 012 |
12450108 |
BULB, TRADE #3157KX (PART OF 13) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2009-2010 |
02 |
|
| 013 |
94734360 |
LAMP, TAIL (INCLS 11, 12, 14-16) |
N155 (43) |
2009-2010 |
01 |
| 013 |
94734361 |
LAMP, TAIL (INCLS 11, 12, 14-16) |
N155 (43) |
2009-2010 |
01 |
| 014 |
10351661 |
BULB, TRADE # 3757NAK (PART OF 13) (ACDelco #3757NAK)
|
2009-2010 |
02 |
|
| 015 |
12450313 |
BULB, WEDGE BASE, 12.8VOLTS, 1.4AMPS, 21CP, TRADE NO. 921 (PART OF 13) (ACDelco #W16W921)
|
2009-2010 |
02 |
|
| 016 |
11609759 |
ГАЙКА, U-TYPE M4.2X1.41, 16.4X12.5, 9.14 C/E, SAE1050 STL, GMW359, 0.65-3.8PNL RN (PART OF 13) |
|
2009-2010 |
02 |
| 017 |
15289020 |
RETAINER, T/LP
| N1 |
2009-2010 |
02 |
|
| 018 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR LIC PLT LP)
|
2009-2010 |
02 |
|
| 019 |
15873660 |
LAMP, RR LIC PLT (INCLS 20-22) |
N155 (43) |
2009-2010 |
01 |
| 020 |
89025301 |
NUT, RR LIC PLT LP MLDG (PART OF 19) |
N155 (43) |
2009-2010 |
02 |
| 021 |
19120997 |
SOCKET, B/U LP (PART OF 19) (2-WAY FEMALE W/O LEADS) (ACDelco #LS117) |
N155 (43) |
2009-2010 |
01 |
| 022 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 19) (ACDelco #L194) |
|
2009-2010 |
01 |
| 023 |
|
HARNESS, RR LIC PLT LP WRG (SEE GROUP 07.000 БАМПЕР ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
