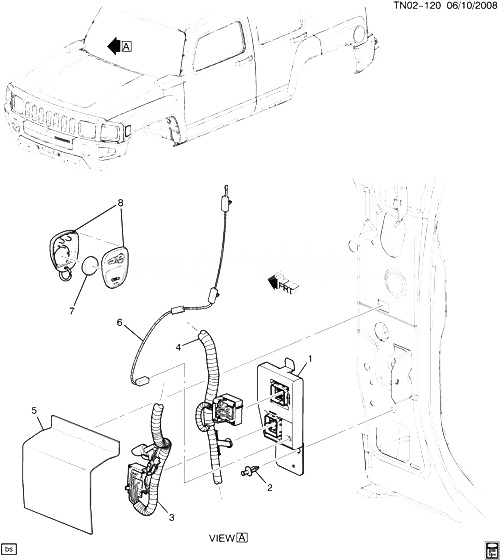

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15886073 |
MODULE, BODY CONT (ACDelco #216-169) |
N155 (43) |
2009-2010 |
01 |
| 001 |
15886073 |
MODULE, BODY CONT (2.560) (ACDelco #216-169) |
N155 (43) |
2009-2010 |
01 |
| 002 |
05973400 |
RETAINER, BCM (BLACK) (25.4MM HEAD) (ROUND) (1.269) |
N1 |
2009-2010 |
02 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 004 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 005 |
15821718 |
SHIELD, BCM |
N1 (06-43) |
2009-2010 |
01 |
| 006 |
15890871 |
АНТЕННА, R/CON DR LK RCVR |
N1 (EXC HH3, RHD) |
2009-2010 |
01 |
| 007 |
12538938 |
BATTERY, R/CON DR LK XMTR (PART OF 8) (LITHIUM) (TRADE CR2032) (10.485)
| N1 |
2009-2010 |
01 |
|
| 007 |
12538938 |
BATTERY, R/CON DR LK XMTR (PART OF 8) (LITHIUM) (TRADE CR2032) (10.485)
| N1 |
2009-2010 |
01 |
|
| 008 |
10335583 |
TRANSMITTER, R/CON DR LK (INCLS 7) (W/BATTERY) (10.485)
| N1 |
2009-2010 |
02 |
|
