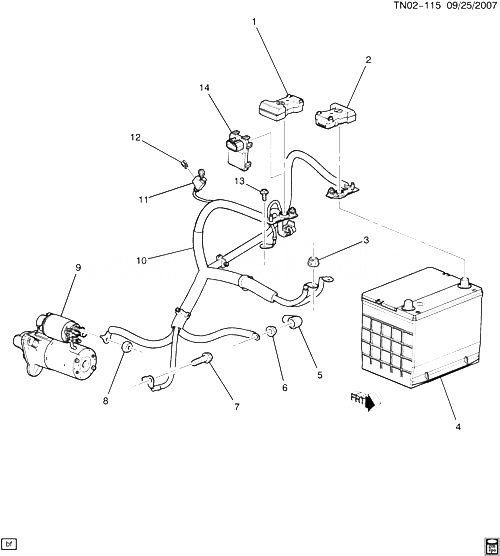

(TN02-115) - 2007-2010 N1 ПРОВОДА АККУМУЛЯТОРА И ДЕТАЛИ КОМПЛЕКТА (LLR/3.7E) HUMMER - H3T 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19116717 COVER, BAT POS CBL TERM (PART OF 10) N1 2007-2010 01
002 19116716 COVER, BAT NEG CBL TERM (PART OF 10) N1 2007-2010 01
003 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS FUSE BLK CBL) 2007-2010 02
004 89021906 BATTERY, (SEE GROUP 02.000 КРЕПЛЕНИЕ АККУМУЛЯТОРА FOR DETAILED ILLUSTRATED VIEW) (CCA 590) (TOP POST) (232X174X198) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) (ACDelco #86-6YR) (PROFESSIONAL - 6 YR) (BATTERY IS ENCASED WITHIN AN A N153 (06) (LLR) 2009-2009 01
004 89021906 BATTERY, (SEE GROUP 02.000 КРЕПЛЕНИЕ АККУМУЛЯТОРА FOR DETAILED ILLUSTRATED VIEW) (CCA 590) (TOP POST) (232X174X198) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) (ACDelco #86-6YR) (PROFESSIONAL - 6 YR) (BATTERY IS ENCASED WITHIN AN A N155 (43) (LH8, LLR) 2009-2009 01
005 12146809 COVER, GEN WIRE TERM (PART OF 10) (BLACK) (TERMINAL BOOT COVER) (2.343) N1 2007-2010 01
006 25640395 NUT, BAT NEG CBL GND (COPPER) (9.647) N1 2007-2010 01
007 11562004 БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL GND) 2007-2010 01
008 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (STRTR) (2.383) 2007-2010 01
009 STARTER, (SEE GROUP 02.000 STARTER MOTOR FOR DETAILED ILLUSTRATED VIEW) 2007-2010
010 20847228 CABLE, BAT POS ; NEG (INCLS 1, 2, 5, 11-14) N1 (LLR) 2009-2010 01
010 25925946 CABLE, BAT POS ; NEG (INCLS 1, 2, 5, 11-14) (2.342) (ACDelco #25925946) N1 (LLR) 2009-2010 01
010 25925946 CABLE, BAT POS ; NEG (INCLS 1, 2, 5, 11-14) (ACDelco #25925946) N1 (LLR) 2009-2010 01
011 19116350 HOLDER, WRG HARN FUSE (PART OF 10) (BLACK) (2-WAY FUSEHOLDER) N1 2007-2010 01
012 12092079 FUSE, 10A, MINI, RED (PART OF 10) 2007-2010 01
013 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (PART OF 10) 2007-2010 01
014 25826405 MODULE, GEN BAT CONT (PART OF 10) N1 2007-2010 01
