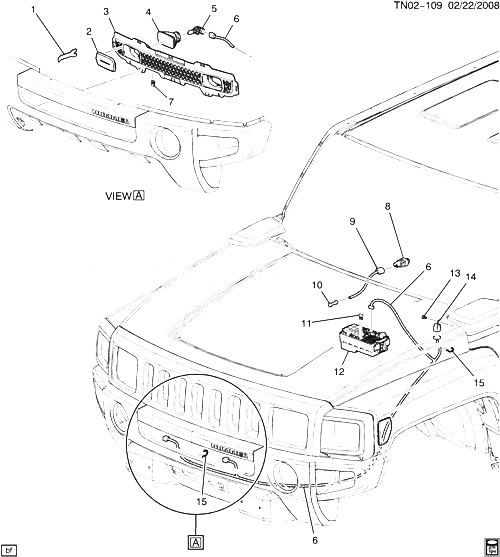

(TN02-109) - 2009-2010 N1(06) ЛАМПЫ ВНЕДОРОЖНИКА (GRILLE MOUNTED UNR) HUMMER - H3T 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19131226 WRENCH, ADJMT (PART OF 3) (8.821) (SERV CMP OF PKG 12498487, 19132765, 19159112, 19159110, 19171860) N1 2007-2010 AR
002 COVER KIT, OFF ROAD LP (PART OF 3) 2007-2010
002 COVER KIT, OFF ROAD LP (PART OF 3) (R13) 2009-2010
003 19132765 LAMP, OFF ROAD (INCLS 1, 2, 4-11, 13-15) (CHROME FINISH) (INSTALL 1.3) (01.3KGS) (CLEAR LENS) (W/HUMMER LOGO) (HB3 60 WATT) (INCLS HDW) (2X4) (2.575) N1 (BRM, R13, UNR) 2007-2010 01
003 19159112 LAMP, OFF ROAD (INCLS 1, 2, 4-11, 13-15) (DK SMOKE) (INSTALL 1.3) (1.31KGS) (CLEAR LENS) (W/HUMMER LOGO) (HB3/9005 60WATT) (INCLS HDW) (2X4) (2.575) N153 (06) (BRM, UNR) (EXC R13) 2007-2010 01
004 LAMP, OFF ROAD (PART OF 3) (INCLS 5) (R13) 2009-2010
004 88964827 LAMP, OFF ROAD (PART OF 3) (INCLS 5) (CLEAR) (INSTALL 1.5) (CAPSULE W/BULB) (GRAY HSG) (9005 BULB 60W) (2.575) N153 (06) (BRM, UNR) 2007-2009 02
005 09441732 BULB, OFF ROAD LP (PART OF 3, 4) (W/TRADE #9005) (2.727) (ACDelco #9005) N1 (BRM, UNR) (EXPORT) 2007-2009 02
006 HARNESS/OFF ROAD) (PART OF 3) 2009-2010
007 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 3) 2007-2010 AR
008 88963885 SWITCH, OFF ROAD LP (PART OF 3) (2.575) N153 (06) (BRM, UNR) (EXPORT) 2007-2009 01
009 HARNESS/OFF ROAD SWITCH) (PART OF 3) 2009-2010
010 19168446 SPLICE SLEEVE KIT, (SEALED) (SALMON) (20-18 GA) (PART OF 3) (ACDelco #19168446) 2007-2010 AR
011 12092079 FUSE, 10A, MINI, RED (PART OF 3) 2007-2010 01
011 88909755 FUSE, 20A, MINI, YELLOW (PART OF 3) (ACDelco #ATM20-25) 2007-2010 01
012 BLOCK, FUSE (SEE GROUP 02.000 BLOCK/UNDERКАПОТ BEC FOR DETAILED ILLUSTRATED VIEW) 2007-2010
013 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 3) 2007-2010 01
014 19131161 RELAY, OFF ROAD LP (PART OF 3) (2.575) (SERV CMP OF PKG 12498487, 19132765, 19159112 ; 19159110, 19171860) N1 2007-2010 AR
015 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (PART OF 3) (8.965) (ACDelco #16TS825) 2007-2010 AR
