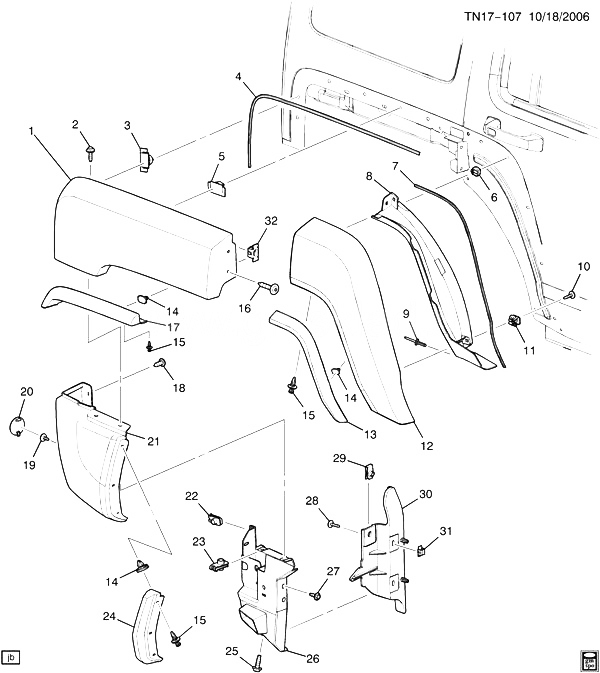

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15849004 |
PANEL, QTR OTR (INCLS 4) (PAINT TO MATCH) |
N153 (06) (BNB, B74) |
2007-2010 |
01 |
| 002 |
11515303 |
BOLT, HEX W/WA, M4.2X1.4X18, NZ (RR BPR IMP BAR EXTN BRKT) |
|
2007-2010 |
04 |
| 003 |
11569649 |
RETAINER, QTR OTR PNL (GRAY) |
N1 (06) |
2007-2010 |
04 |
| 004 |
15814597 |
SEAL, BODY RR LWR PNL (PART OF 1) (CUT TO LENGTH) (8.131) |
N153 (06) |
2007-2010 |
04 |
| 005 |
11562147 |
RETAINER, QTR OTR PNL (NATURAL) (7MM THK SEAL) (8.131) |
N1 (06) |
2007-2010 |
08 |
| 006 |
11518988 |
CLIP, 20X19.8X2.5, ACETAL COPOLYMER (PART OF 12) (8.950) |
|
2007-2010 |
04 |
| 007 |
15814597 |
SEAL, RR WHL OPG FLARE (CUT TO LENGTH) (8.131) |
N153 (06) |
2007-2010 |
02 |
| 008 |
15886279 |
BRACKET, RR WHL OPG FLARE (PART OF 12) |
N153 (06) |
2007-2010 |
01 |
| 009 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (PART OF 12) |
|
2007-2010 |
02 |
| 010 |
11610068 |
BOLT, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (RR WHL OPG FLARE) |
|
2007-2010 |
04 |
| 011 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 12) (10.701) |
|
2007-2010 |
04 |
| 012 |
15912636 |
FLARE, RR WHL OPG (INCLS 6, 8, 9, 11) (ATTACHED TO RR DOOR LOWER) |
N153 (06) (B74) (EXPORT) |
2007-2010 |
01 |
| 013 |
15822889 |
MOLDING, RR WHL OPG FRT (INCLS 14) (GRAY) |
N153 (06) (B74) |
2007-2010 |
01 |
| 014 |
11588818 |
CLIP, RR WHL OPG MLDG (PART OF 13, 17, 24) (7.831) |
N1 (06) |
2007-2010 |
AR |
| 015 |
11589294 |
RETAINER, RR WHL OPG FRT MLDG (BLACK) (FITS 8.5 HOLE, 7-10 THK PNL, NYLON 6/6 PER GMP.PA66.015) (8.133) |
N1 (B74) |
2010-2010 |
08 |
| 016 |
11609456 |
SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (Q/PNL FLARE) |
|
2007-2010 |
04 |
| 017 |
15822890 |
MOLDING, RR WHL OPG CTR RR (INCLS 14) (GRAY) |
N153 (06) (B74) |
2007-2010 |
01 |
| 018 |
11589106 |
SCREW, RND WA HD, M4.2X1.41X25, 19.2 THD, 11.3 OD, 6010M, GMW4205, C/R, TAP, (PART OF 21) (10.774) |
|
2007-2010 |
06 |
| 019 |
11515864 |
SCREW ASM-FLAT WASHER ; METRIC HEX HEAD M (QTR OTR PNL) |
|
2007-2010 |
06 |
| 020 |
15828092 |
CAP, RR BPR FASCIA MLDG (REPL RH ; LH CAP) |
N153 (06) |
2007-2010 |
02 |
| 021 |
15849024 |
EXTENSION, RR BPR IMP BAR (INCLS 18, 22, 23, 26) |
N1 (06) (B74) |
2007-2010 |
01 |
| 022 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 21) |
|
2007-2010 |
10 |
| 023 |
11515638 |
NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 21) |
|
2007-2010 |
03 |
| 024 |
15822891 |
MOLDING, RR WHL OPG RR (INCLS 14) (GRAY) |
N153 (06) (B74) |
2007-2010 |
01 |
| 025 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (QTR OTR PNL) |
|
2007-2010 |
06 |
| 026 |
|
BRACKET, RR BPR IMP BAR EXTN (PART OF 21) |
|
2009-2010 |
|
| 027 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR BPR IMP BAR EXTN) |
|
2007-2010 |
04 |
| 028 |
11610068 |
BOLT, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (QTR OTR PNL EXTN) |
|
2007-2010 |
04 |
| 029 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 30) |
|
2007-2010 |
01 |
| 030 |
15853260 |
BRACKET, QTR OTR PNL EXTN (INCLS 29) |
N153 (06) |
2007-2010 |
01 |
| 031 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (QTR OTR PNL EXTN) (10.512) |
|
2007-2010 |
04 |
| 032 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (Q/PNL FLARE) (10.512) |
|
2007-2010 |
04 |
