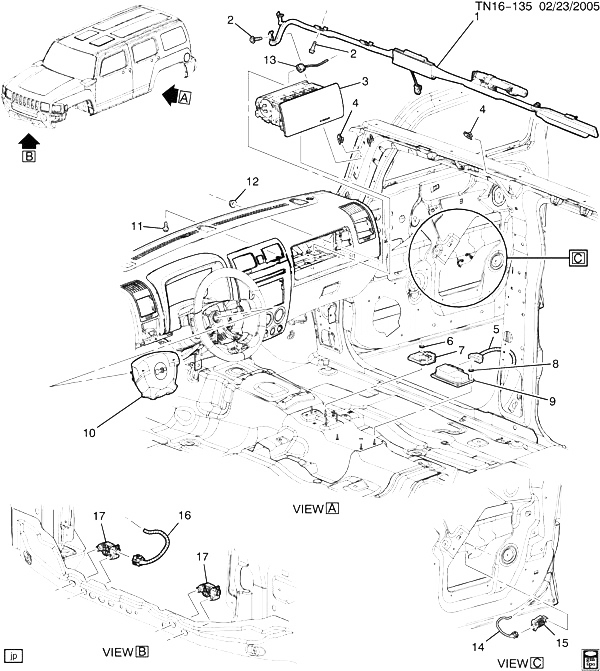

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20813269 |
AIRBAG, RF S/RL (INCLS 2) |
N153 (06) (ASF) |
2006-2010 |
01 |
| 001 |
20813268 |
AIRBAG, RF S/RL (INCLS 2) |
N153 (06) (ASF) |
2006-2010 |
01 |
| 002 |
11561388 |
BOLT, R/RL AIRBAG (PART OF 1) (M6X1X20, 11 THD, 17 OD) (8.900) |
N153 (06) |
2006-2010 |
06 |
| 003 |
25809845 |
AIRBAG, I/P (EBONY) |
N1 (19I, 27I) (EXC HH3, RHD) |
2008-2010 |
01 |
| 003 |
15850867 |
AIRBAG, I/P (EBONY) |
N1 (RHD, 19I) (EXC HH3) (EXPORT) |
2007-2010 |
01 |
| 003 |
15850867 |
AIRBAG, I/P (EBONY) |
N1 (RHD, 27I) (EXC HH3) (EXPORT) |
2008-2010 |
01 |
| 004 |
11519502 |
NUT, TYPE U, M6X1, 23.5X12.5, 13.5 C/E, 0.8-4.0 PNL, GM7111M (RF S/RL AIRBAG STRP) |
|
2006-2010 |
12 |
| 005 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) (2.525) |
|
2006-2010 |
|
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AIRBAG VEH ROLLOVER SEN) |
|
2006-2010 |
03 |
| 007 |
20842671 |
SENSOR, AIRBAG VEH ROLLOVER |
N1 (ASF) |
2010-2010 |
01 |
| 008 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (SEN ; DIAGN AIRBAG MDL) |
|
2006-2010 |
03 |
| 009 |
20864339 |
MODULE, AIRBAG SEN ; DIAGN |
N153 (06) (ASF) (EXC TUM) |
2010-2010 |
01 |
| 009 |
24301279 |
MODULE, AIRBAG SEN ; DIAGN |
N153 (06) (ASF, TUM) |
2010-2010 |
01 |
| 009 |
24301280 |
MODULE, AIRBAG SEN ; DIAGN |
N153 (06) (BRM) (EXC ASF) (EXPORT) |
2010-2010 |
01 |
| 010 |
25809839 |
AIRBAG, STRG WHL (EBONY) (INCLS HORN CONTACTS) (16.712) |
N1 (19I, 27I) (EXC Y92) |
2008-2010 |
01 |
| 010 |
25809839 |
AIRBAG, STRG WHL (EBONY) (INCLS HORN CONTACTS) |
N1 (19I, 27I) (EXC Y92) |
2008-2010 |
01 |
| 010 |
25809843 |
AIRBAG, STRG WHL (EBONY) (16.712) |
N1 (Y92, 19I, 27I) |
2008-2010 |
01 |
| 010 |
25809843 |
AIRBAG, STRG WHL (EBONY) |
N1 (Y92, 19I, 27I) |
2008-2010 |
01 |
| 011 |
11517484 |
BOLT, HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (I/P AIRBAG) |
|
2006-2010 |
02 |
| 012 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMN INTERFACE MDL) |
|
2006-2010 |
02 |
| 013 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS, INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 014 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 015 |
10383629 |
SENSOR, AIRBAG SI IMP |
N1 (ASF) |
2007-2010 |
02 |
| 016 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FWD LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 017 |
25836760 |
SENSOR, AIRBAG F/END DISCRM |
N153 (06) |
2008-2010 |
02 |
