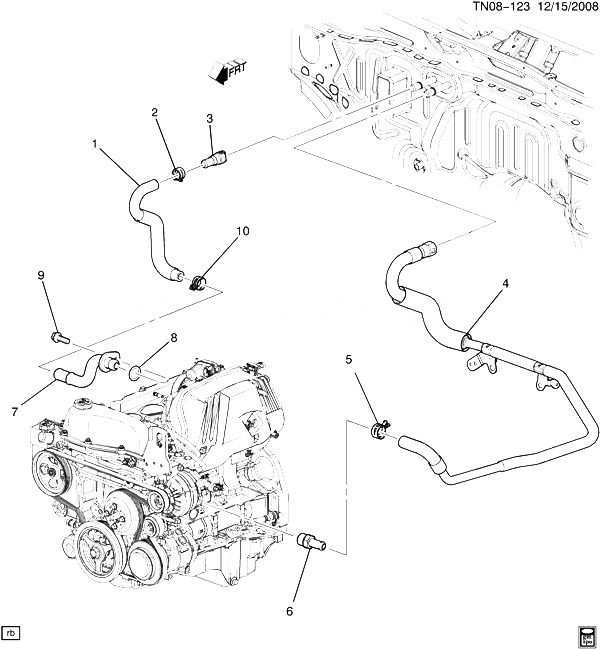

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25958072 |
HOSE, HTR OTLT |
N1 (LLR, JJA) (EXC RHD) |
2009-2010 |
01 |
| 002 |
11570616 |
CLAMP, SPRINGBAND, 27 NOMINAL DIA, 15 THK, STL, ROBO (HTR OTLT HOSE) |
|
2009-2010 |
01 |
| 003 |
15138452 |
CONNECTOR, HTR OTLT HOSE |
N1 (LLR) (EXC RHD) |
2009-2010 |
01 |
| 004 |
25958073 |
HOSE, HTR INL |
N1 (LLR) (EXC RHD) |
2009-2010 |
01 |
| 005 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE) |
|
2009-2010 |
01 |
| 006 |
12567908 |
FITTING, HTR OTLT HOSE |
N1 |
2009-2010 |
01 |
| 007 |
12619219 |
PIPE, HTR INL (INCLS 8) |
N1 (LLR) |
2009-2010 |
01 |
| 008 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 7) (ACDelco #12575032) |
N1 |
2009-2010 |
01 |
| 009 |
11589241 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (HTR INL PIPE) |
|
2009-2010 |
01 |
| 010 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR OTLT HOSE) (8.948) |
|
2009-2010 |
01 |
