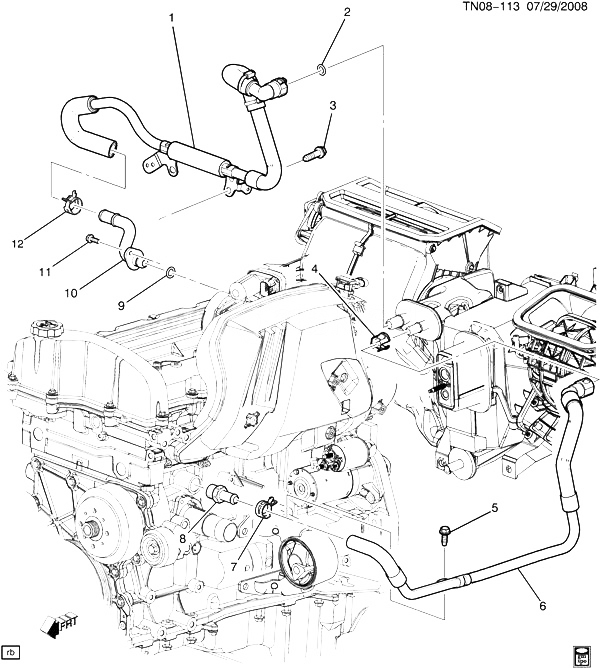

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24300502 |
HOSE, HTR OTLT |
N1 (LLR, RHD) (EXPORT) |
2009-2010 |
01 |
| 002 |
12575032 |
SEAL, HTR OTLT PIPE (O RING) (ACDelco #12575032) |
N1 (LLR, JJA, RHD) (EXPORT) |
2009-2010 |
01 |
| 003 |
11519894 |
BOLT, HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2009-2010 |
07 |
| 004 |
|
RETAINER, HTR INL PIPE CONN (PART OF 6) |
|
2009-2010 |
|
| 005 |
11588712 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (HTR INL HOSE) |
|
2009-2010 |
01 |
| 006 |
24301262 |
HOSE, HTR INL (INCLS 4, 7) |
N1 (LLR, RHD) (EXPORT) |
2009-2010 |
01 |
| 007 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 6) |
|
2009-2010 |
01 |
| 008 |
12567908 |
FITTING, HTR OTLT HOSE |
N1 |
2009-2010 |
01 |
| 009 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 10) (ACDelco #12575032) |
N1 |
2009-2010 |
01 |
| 010 |
12619219 |
PIPE, HTR INL (INCLS 9) |
N1 (LLR) |
2009-2010 |
01 |
| 011 |
11589241 |
BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (HTR INL PIPE) |
|
2009-2010 |
01 |
| 012 |
15012561 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR OTLT HOSE) (8.948) |
|
2009-2010 |
01 |
