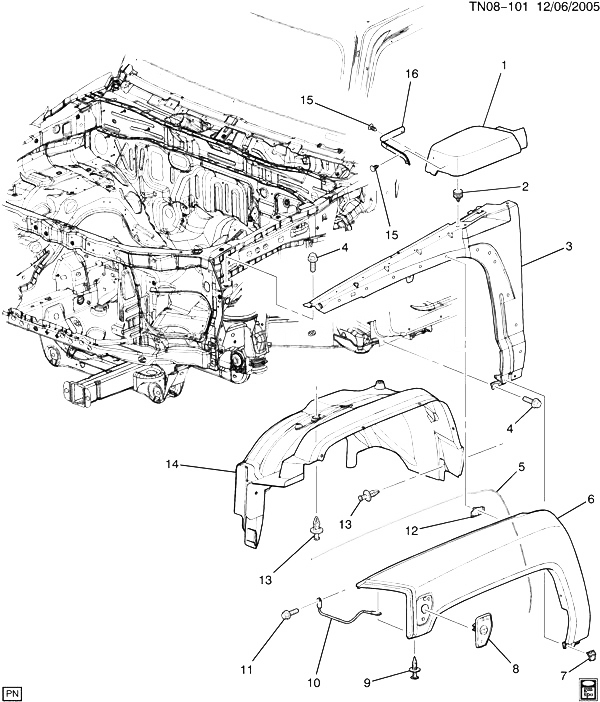

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19120871 |
COVER, FRT INT AIR DUCT HOLE (INCLS 2, 15, 16) (PAINT TO MATCH) |
N1 |
2006-2010 |
01 |
| 001 |
19120871 |
COVER, FRT INT AIR DUCT HOLE (INCLS 2, 15, 16) |
N1 |
2010-2010 |
01 |
| 001 |
19120872 |
COVER, FRT INT AIR DUCT HOLE (INCLS 2, 15, 16) |
N1 |
2010-2010 |
01 |
| 002 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 1) |
|
2006-2010 |
08 |
| 003 |
25971231 |
FENDER, FRT (BUILT W/220MM HOOD BUMPER) |
N1 |
2006-2010 |
01 |
| 003 |
25971232 |
FENDER, FRT |
N1 |
2006-2010 |
01 |
| 004 |
11517518 |
BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (F/FDR) (ACDelco #11517518) |
|
2006-2010 |
14 |
| 005 |
15814597 |
SEAL, F/FDR FLARE (CUT TO LENGTH) |
N1 |
2006-2010 |
02 |
| 006 |
15852185 |
FLARE, F/FDR (INCLS 7, 12) (W/O SEAL) (PAINT TO MATCH) |
N1 (EXC B74) |
2010-2010 |
01 |
| 006 |
15852184 |
FLARE, F/FDR (INCLS 7, 12) (W/O SEAL) (PAINT TO MATCH) |
N1 (EXC B74) |
2010-2010 |
01 |
| 007 |
11518988 |
CLIP, 20X19.8X2.5, ACETAL COPOLYMER (PART OF 6) (8.950) |
|
2006-2010 |
02 |
| 008 |
|
LAMP, FRT SI MKR (SEE GROUP 02.000 LAMPS/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 009 |
11518017 |
RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (F/FDR FLARE RET (PUSH ON)) |
|
2006-2010 |
02 |
| 010 |
15839279 |
BRACE, F/FDR LWR FRT MLDG REINF |
N1 |
2006-2010 |
01 |
| 010 |
15839280 |
BRACE, F/FDR LWR FRT MLDG REINF |
N1 |
2006-2010 |
01 |
| 011 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (F/FDR SI LWR FRT MLDG) |
|
2006-2010 |
02 |
| 012 |
11562147 |
RETAINER, F/FDR FLARE (PART OF 6) (NATURAL) (7MM THK SEAL) |
N1 |
2006-2010 |
11 |
| 013 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT W/H LNR) |
|
2006-2010 |
22 |
| 014 |
25931996 |
LINER, FRT W/H |
N1 (LH9, LLR) |
2010-2010 |
01 |
| 014 |
25931997 |
LINER, FRT W/H |
N1 (LH9, LLR) |
2010-2010 |
01 |
| 015 |
21121668 |
RETAINER, INT AIR BFL (PUSH IN) (FRT INT AIR DUCT-HOLE) (PART OF 1) (12.804) |
N153 (06) (BRM) |
2010-2010 |
05 |
| 016 |
15884125 |
SEAL, A/CL (LEFT SIDE/COVER, FRT INT AIR DUCT) (PART OF 1) |
N1 |
2006-2010 |
01 |
| 016 |
15884126 |
SEAL, A/CL (RIGHT SIDE/COVER, FRT INT AIR DUCT) (PART OF 1) |
N1 |
2006-2010 |
01 |
