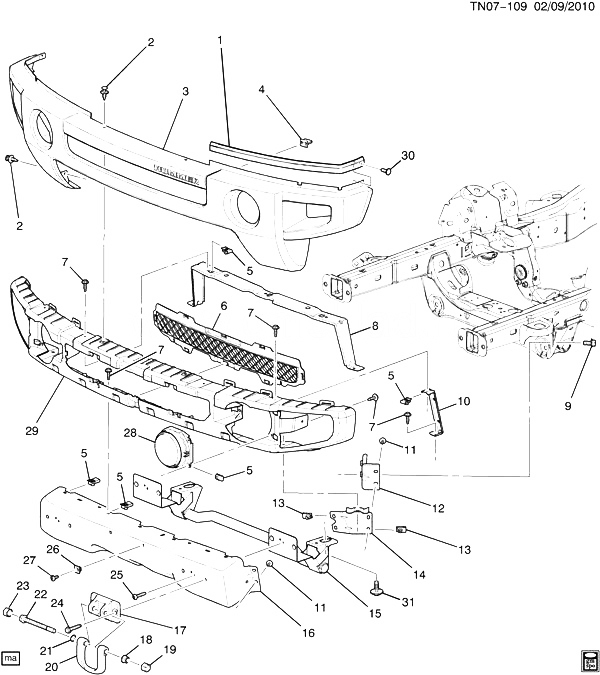

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25926745 |
SEAL, FRT BPR FASCIA |
N1 |
2008-2010 |
01 |
| 001 |
25926746 |
SEAL, FRT BPR FASCIA |
N1 |
2008-2010 |
01 |
| 002 |
21030249 |
RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA) (8.950) (PUSH IN) |
|
2008-2010 |
06 |
| 003 |
15264942 |
FASCIA, FRT BPR UPR |
N1 (T96) (EXC BRM) |
2008-2010 |
01 |
| 003 |
15823890 |
FASCIA, FRT BPR |
N1 (BRM, T96) (EXPORT) |
2008-2010 |
01 |
| 004 |
25606274 |
RETAINER, FRT BPR FASCIA (GRAY) (15.5X17.5X3.5) (SAE 1050) (2.596) |
N1 |
2008-2010 |
06 |
| 005 |
11570097 |
NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. |
|
2008-2010 |
18 |
| 006 |
25821170 |
GRILLE, FRT LWR (W/ FOG LAMPS) |
N1 (T96) |
2008-2010 |
01 |
| 007 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FRT BPR IMP BAR BRKT) |
|
2008-2010 |
18 |
| 008 |
15264948 |
BRACKET, FRT BPR VAL PNL CTR |
N1 (T96) |
2008-2010 |
01 |
| 009 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (FRT BPR IMP BAR) |
|
2008-2010 |
04 |
| 010 |
15264947 |
BRACKET, FRT BPR VAL PNL OTR |
N1 (T96) |
2008-2010 |
02 |
| 011 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FRT BPR IMP BAR BRKT) (ACDelco #11570082) |
|
2008-2010 |
08 |
| 012 |
15195208 |
BRACE, FRT BPR IMP BAR |
N1 (T96) |
2008-2010 |
01 |
| 012 |
15195209 |
BRACE, FRT BPR IMP BAR |
N1 (T96) |
2008-2010 |
01 |
| 013 |
11516149 |
NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (FRT BPR IMP BAR BRKT) |
|
2008-2010 |
08 |
| 014 |
15264940 |
SUPPORT, FRT BPR FASCIA UPR |
N1 (T96) |
2008-2010 |
01 |
| 014 |
15264941 |
SUPPORT, FRT BPR FASCIA UPR |
N1 (T96) |
2008-2010 |
01 |
| 015 |
15840018 |
ABSORBER, FRT BPR FASCIA ENGY LWR |
N1 (T96) |
2008-2010 |
01 |
| 016 |
25979016 |
BAR, FRT BPR IMP (GRAY) |
N1 |
2010-2010 |
01 |
| 017 |
15826713 |
BRACKET, FRT TOW HOOK |
N1 |
2008-2010 |
02 |
| 018 |
11610463 |
NUT, HFH, M16X2, 18.2 THK, 30.5 OD, 10 STL, FNSH GMW14100+WATER SLBLE W (RR TOW HOOK) |
|
2008-2010 |
02 |
| 019 |
15835929 |
CAP, RR TOW HOOK NUT |
N1 |
2008-2010 |
01 |
| 020 |
15817909 |
HOOK, FRT TOW |
N1 |
2008-2010 |
02 |
| 021 |
15204555 |
WASHER, FRT TOW HOOK |
N1 |
2008-2010 |
02 |
| 022 |
11561379 |
BOLT- HFH, M16X2X165, 35 THD, 30.5 OD, 10.9, GM6046M (BLACK), HDR PT. (FRT TOW HOOK) |
|
2008-2010 |
02 |
| 023 |
15835929 |
CAP, RR TOW HOOK BOLT/SCREW |
N1 |
2008-2010 |
01 |
| 024 |
11561764 |
BOLT, HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (FRT TOW HOOK BRKT) |
|
2008-2010 |
04 |
| 025 |
11518580 |
SCREW, PAN, M6X1X30, 28.5 THD, 12 OD, 10.9, 6138M, TORX, MACH (FRT BPR IMP BAR) |
|
2008-2010 |
02 |
| 026 |
03907444 |
NUT, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (RR LIC PLT) |
|
2008-2010 |
02 |
| 027 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (LIC PLT BRKT) |
|
2008-2010 |
06 |
| 028 |
15807157 |
LAMP, FRT FOG (SEE GROUP 02.000 LAMPS/FRONT FOR DETAILED ILLUSTRTATED VIEW) |
N1 (T96) (EXC BRM) |
2008-2010 |
01 |
| 028 |
15807158 |
LAMP, FRT FOG (SEE GROUP 02.000 LAMPS/FRONT FOR DETAILED ILLUSTRTATED VIEW) |
N1 (T96) (EXC BRM) |
2008-2010 |
01 |
| 028 |
15901835 |
LAMP, FRT FOG (SEE GROUP 02.000 LAMPS/FRONT FOR DETAILED ILLUSTRTATED VIEW) |
N1 (BRM, T96) (EXPORT) |
2008-2010 |
01 |
| 028 |
15901836 |
LAMP, FRT FOG (SEE GROUP 02.000 LAMPS/FRONT FOR DETAILED ILLUSTRTATED VIEW) |
N1 (BRM, T96) (EXPORT) |
2008-2010 |
01 |
| 029 |
15264944 |
FILLER, FRT BPR INTER |
N1 (T96) |
2008-2010 |
01 |
| 030 |
01644290 |
RETAINER, FRT BPR IMP BAR SEAL (5MM, 17.8 LONG) (4.720) |
N1 (T96) (EXC BRM) |
2008-2010 |
02 |
| 031 |
11610001 |
BOLT, FRT BPR ENGY ABS BRKT (M6X1X25, 13.82THD) (8.900) |
N1 |
2008-2010 |
02 |
