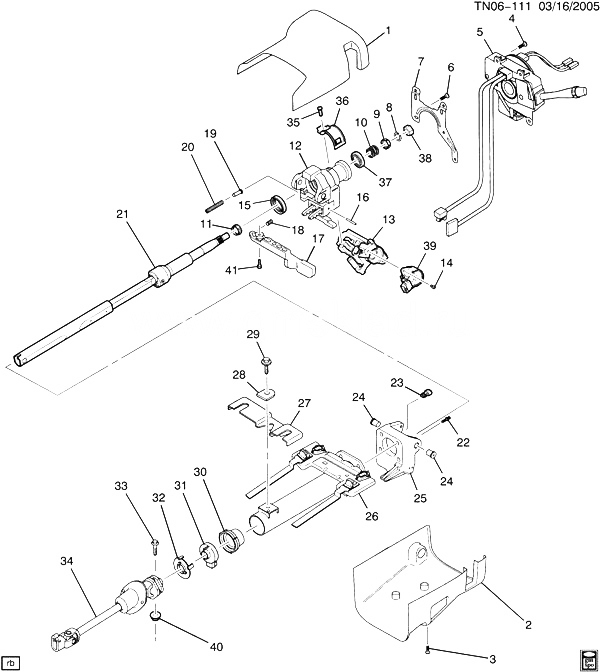

(TN06-111) 2006-2010 N1 РУЛЕВАЯ КОЛОНКА (MANUAL TRANSMISSION MA5) HUMMER - H3 SUV 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10376748 SHROUD, STRG COL (INCLS 2) (PEWTER) N1 (EXC BAE) 2008-2010 01
001 15879446 SHROUD, STRG COL (INCLS 2) N1 (BAE) 2008-2010 01
002 SHROUD, STRG COL (PART OF 1) 2006-2010
003 26104379 SCREW, FLAT HEAD W/SHLDR, M5X0.8X12, 7 THD, 9.3 OD, GM6171M STL, TAP (STRG COL HSG CVR) 2006-2010 03
004 26014529 BOLT, HDLP DIMR ; T/SIG SW (M5X.8X11.5) (TO LOCK MODULE) (6.522) N1 2006-2010 03
004 26014529 BOLT, HDLP DIMR ; T/SIG SW (M5X.8X11.5) (TO LOCK MODULE) (6.522) N1 2006-2010 03
005 25867279 SWITCH, T/SIG (ACDelco #D6236E) N1 (MA5, BAE, NP7, N33) (EXC RHD) 2008-2010 01
005 15906127 SWITCH, T/SIG (INCLS AIRBAG COIL) (ACDelco #D2120E) N1 (MA5, NP7, N33) (EXC BAE, RHD) 2008-2010 01
005 25867282 SWITCH, T/SIG (ACDelco #D6237E) N1 (MA5, BAE, NP7, RHD) (EXPORT) 2008-2010 01
006 93742610 BOLT, T/SIG SW BRKT (2.188) N1 2006-2010 02
007 15216927 BRACKET, T/SIG SW N1 2006-2010 01
008 05694191 RING, STRG SHF LK PLT RET (*KIT2) (6.524) N1 2006-2010 01
009 26025648 RETAINER, STRG COL TILT SPR (*KIT2) N1 2006-2010 01
010 07815185 SPRING, STRG SHF UPR BRG (*KIT2) N1 2006-2010 01
011 RACE, STRG SHF UPR BRG (*KIT1, KIT2) 2006-2010
012 26086229 HOUSING, STRG COL (PART NO LONGER AVAILABLE FROM GM, NOW SERVICED BY COMPONENTS. FIELD INVENTORY MAY EXIST.) (INCLS 15-18, 37, 41) (*KIT2) N1 2006-2010 01
013 15795321 HOUSING, IGN ; START SW (HAS SHAFT LOCK, INCLS PASSLOCK SENSOR, SWITCH) (INCLS 14, 39) (MUST ORDER T/W SHEER BOLT) (ACDelco #D1462G) N1 (MA5, NP7, N33) (EXC BAE, RHD) 2009-2010 01
013 25814802 HOUSING, IGN ; START SW (INCLS 14, 39) N1 (MA5, BAE) (EXPORT) 2008-2010 01
014 93742610 BOLT, IGN SW (PART OF 13) N1 2006-2010 02
015 BEARING, STRG SHF UPR (PART OF 12) (*KIT1, KIT2) 2006-2010
016 PIN, STRG COL TILT LK SHOE (PART OF 12) (*KIT2) 2006-2010
017 26102151 KNOB, STRG COL TILT WHL REL LVR (PART OF 12) (*KIT2) N1 2006-2010 01
018 SPRING, STRG COL TILT LK REL LVR (PART OF 12) (*KIT2) 2006-2010
019 26034561 GUIDE, STRG COL TILT (*KIT2) (6.514) N1 2006-2010 01
020 26078240 SPRING, STRG COL TILT (*KIT2) N1 2006-2010 01
021 SHAFT, STRG (*KIT2) 2006-2010
022 BOLT, STRG COL HSG SUPT (*KIT2) 2006-2010
023 BUMPER, STRG COL HSG (*KIT2) 2006-2010
024 26036521 PIN, STRG COL PIV (*KIT2) N1 2006-2010 02
025 SUPPORT, STRG COL HSG (*KIT2) 2006-2010
026 JACKET, STRG COL (*KIT2) 2006-2010
027 BRACKET, STRG COL UPR SUPT (*KIT2) 2006-2010
028 REINFORCEMENT, STRG COL UPR SUPT BRKT (*KIT2) 2006-2010
029 BOLT, STRG COL UPR SUPT BRKT (*KIT2) 2006-2010
030 10391400 BEARING, STRG SHF LWR (*KIT2) N1 2006-2010 01
031 26104070 SENSOR, STRG WHL POSN N1 2006-2010 01
032 19180263 CLIP, STRG ANGLE SEN RET (6.521) N1 2006-2010 01
033 26058124 BOLT, INTER STRG SHF (M10X1.5X35, 33.5THD) (W/RETAINER) (UPR TO STRG COL) N1 2006-2010 01
034 19256702 SHAFT, S/GR CPLG N1 (N33) 2006-2010 01
034 19256702 SHAFT, S/GR CPLG (6.524) N1 (N33) 2006-2010 01
034 19256702 SHAFT, S/GR CPLG N1 (NP7) (EXC RHD) 2006-2010 01
034 19256702 SHAFT, S/GR CPLG (6.524) N1 (NP7) (EXC RHD) 2006-2010 01
034 15816600 SHAFT, S/GR CPLG N1 (NP7, RHD) (EXPORT) 2007-2010 01
034 15816600 SHAFT, S/GR CPLG (6.524) N1 (NP7, RHD) (EXPORT) 2007-2010 01
035 26028106 BOLT, IGN ; START SW (26028106 IS NOT INCLUDED IN 15795322 HOUSING PKG) (SHEAR BOLT) (W/ WASHER) (2.195) N1 2006-2010 01
036 15251763 BRACKET, IGN START SW N1 2006-2010 01
037 15216904 BEARING, STRG SHF UPR (PART OF 12) (*KIT2) N1 2006-2010 01
038 11609587 NUT, STRG WHL (M12X1.25X12.1, 21 OD) (INCLS WASHER) (8.917) N1 2006-2010 01
039 SWITCH, IGN ; START (PART OF 13) 2006-2010
040 11514597 NUT, S/GR CPLG (M10X1.5 6H, 21.8OD) (2.383) N1 2006-2010 01
041 26036317 PIN, STRG COL TILT LK REL LVR PIV (PART OF 12) (M5X0.8) (T-25 TORX) (*KIT2) N1 2006-2010 01
K01 26001827 BEARING KIT, STRG SHF UPR (INCLS 11, 15) (STRG COL INR W/RACE) N1 2006-2010 01
K02 10391402 COLUMN, STRG (INCLS 8-12, 15-30, 37, 41) (R;P) N1 2006-2010 01
