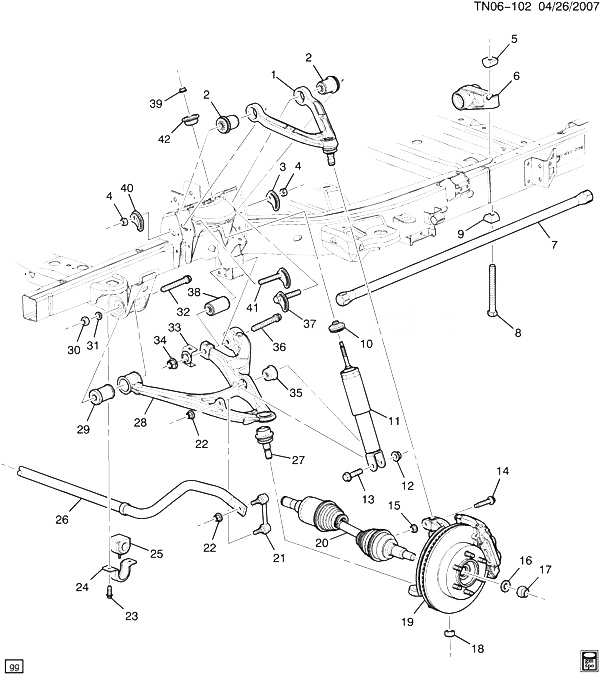

(TN06-102) 2006-2010 N1 ПОДВЕСКА ПЕРЕДНЯЯ HUMMER - H3 SUV 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15082974 ARM, FRT UPR CONT (INCLS 2) N1 2006-2010 01
001 15082975 ARM, FRT UPR CONT (INCLS 2) N1 2006-2010 01
002 BUSHING, FRT UPR CONT ARM (PART OF 1) 2006-2010
003 15171792 CAM, FRT UPR CONT ARM ADJ (USED ON LH FRT AND RH RR LOWER CONTROL ARM) NT1 2006-2010 02
004 11516074 NUT, FRT UPR CONT ARM (HEX M14X2X13) (8.917) N1 2006-2010 04
005 11589217 NUT, TORS BAR ADJ N1 2006-2010 02
006 15116293 ARM, TORS BAR ADJ N1 2006-2010 01
006 15116294 ARM, TORS BAR ADJ N1 2006-2010 01
007 15082981 BAR, FRT TORS N153 (06) (LLR) 2009-2010 01
007 15082982 BAR, FRT TORS N153 (06) (LLR) 2009-2010 01
007 93357119 BAR, FRT TORS N155 (43) (LLR) 2009-2010 01
007 93357120 BAR, FRT TORS N155 (43) (LLR) 2009-2010 01
007 15906133 BAR, FRT TORS N153 (06) (LH9) 2010-2010 01
007 15906134 BAR, FRT TORS N153 (06) (LH9) 2010-2010 01
007 93357121 BAR, FRT TORS N155 (43) (LH9) 2010-2010 01
007 93357122 BAR, FRT TORS N155 (43) (LH9) 2010-2010 01
008 11588306 BOLT, HEX HD, M18X2.5X175, 115 THD, 8.8, 7114M (TORS BAR ADJ) 2006-2010 02
009 11589189 SEAT, TORS BAR ADJ BOLT N1 2006-2010 02
010 15834275 INSULATOR, FRT S/ABS (PART OF 11) (50.0MM DIA X 44.5MM) N1 2006-2010 02
011 15834280 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-200) N153 (06) (LLR, ZM6) (EXC FG2) 2008-2010 02
011 25790261 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-294) N153 (06) (LLR, HH3, Z85) 2008-2010 02
011 15834280 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-200) N1 (LH9, ZM6) (EXC FG2) 2010-2010 02
011 24300083 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-425) N153 (06) (LH9, LLR, FG2, Z85) 2010-2010 02
011 24300083 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-425) N153 (06) (LH9, LLR, FG2, ZM6) 2010-2010 02
011 94730243 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) N155 (43) (LH9, FG9, Z85) 2010-2010 02
011 94731815 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) N155 (43) (LH9, ZM6) 2010-2010 01
011 94738719 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #94738719) N155 (43) (LLR, ZM6, Z85) 2009-2010 02
011 19209380 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-199) N153 (06) (LH9, Z85) (EXC FG2) 2010-2010 02
011 19209380 ABSORBER KIT, FRT SHK (INCLS 10, 39, 42) (ACDelco #540-199) N1 (LLR, Z85) (EXC FG2) 2010-2010 02
012 11516382 NUT, HFH LK M14X2X15, 28 OD 10 7111M (FRT S/ABS) 2006-2010 02
013 11516871 BOLT, HFH, M14X2X65, 34 THD, 30.5 OD, 10.9, 7114M, MACH, HDR-PT (FRT S/ABS) 2006-2010 02
014 11588542 BOLT, HFH, M12X1.75X75, 23 THD, 26.6 OD, 10.9, GM7114M, HEX - PT (S/KNU) 2006-2010 02
015 11516078 NUT, S/KNU (M12X1.75X14THK, 25 OD) (8.917) N1 2008-2010 02
016 15522089 WASHER, FRT WHL DRV SHF (24 DIA, 5.4 THK) (6.063) N1 (06-43) 2009-2010 02
017 11609826 NUT, FRT WHL DRV SHF (M24X2X22) N1 (06-43) 2009-2010 02
018 15994586 NUT, FRT LWR CONT ARM BALL STUD (PART OF 27, 28) (GRADE 10) (PREVAILING TORQUE, M18X2.5 THD, 16.3 THK, 45 DEG CHAMFER) (7.242) N1 (06-43) 2009-2010 02
019 KNUCKLE, STRG (W/HUB) (SEE GROUP 04.000 BRAKE CALIPER MOUNTING/FRONT ; KNUCKLE FOR DETAILED ILLUSTRATED VIEW) 2006-2010
020 SHAFT, FRT WHL DRV (SEE GROUP 06.000 DRIVE SHAFT/FRONT WHEEL FOR DETAILED ILLUSTRATED VIEW) 2006-2010
021 19168014 LINK KIT, FRT STAB SHF (INCLS 22) N1 2006-2010 02
022 11516078 NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (PART OF 21) 2006-2010 04
023 11518294 BOLT, HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (FRT STAB SHF) 2006-2010 04
024 10399727 CLAMP, FRT STAB SHF INSL N155 (43) 2009-2010 02
024 10399727 CLAMP, FRT STAB SHF INSL N153 (06) (LH9, LLR) 2010-2010 02
025 10399726 INSULATOR, FRT STAB SHF N1 2006-2010 02
026 94729731 SHAFT, FRT STAB N155 (43) 2009-2010 01
026 15854375 SHAFT, FRT STAB N153 (06) (LH9, LLR) 2010-2010 01
027 15245579 STUD KIT, FRT LWR CONT ARM BALL (INCLS 18) (PART OF 28) N1 2006-2010 02
028 15082976 ARM, FRT LWR CONT (INCLS 18, 27, 29, 33-35) N1 2006-2010 01
028 15082977 ARM, FRT LWR CONT (INCLS 18, 27, 29, 33-35) N1 2006-2010 01
029 15088365 BUSHING, FRT LWR CONT ARM (PART OF 28) N1 2006-2010 02
030 11516133 NUT, FRT LWR CONT ARM FRT (M16X2X15) (NUT ONLY) (8.917) N1 2006-2010 02
031 15567836 WASHER, FRT LWR CONT ARM (16.38IDX23.87ODX3.27) (6.168) N1 2006-2010 02
032 15733533 BOLT, FRT LWR CONT ARM FRT (M16X2.0X118, 60 THD) (6.172) N1 2006-2010 02
033 11562450 ATTACHMENT PKG, FRT LWR CONT ARM (PART OF 28) N1 2006-2010 02
034 11516383 NUT, HFH LK 16X2X18.9 34.2 OD 10 7111M PREV TORQ (PART OF 28) 2006-2010 02
035 15102550 INSULATOR, FRT S/ABS LWR (PART OF 28) N1 2006-2010 02
036 11588300 BOLT, FRT LWR CONT ARM RR (M16X2X155, 47.5 THD) (8.900) N1 2006-2010 02
037 11588463 BOLT, FRT UPR CONT ARM ADJ (W/CAM) (8.900) NT1 2006-2010 02
038 15088366 BUSHING, FRT LWR CONT ARM (POA THE FRAME) N1 2006-2010 02
039 11514597 NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (PART OF 11) (2.383) 2006-2010 02
040 15171793 CAM, FRT UPR CONT ARM ADJ (USED ON RH FRT AND LH RR LOWER CONTROL ARM) NT1 2006-2010 02
041 11588462 BOLT, FRT UPR CONT ARM ADJ (W/CAM) (8.900) NT1 2006-2010 02
042 15042048 INSULATOR, FRT S/ABS (PART OF 11) (58.0MM DIA X 30.0MM) N1 2006-2010 02
