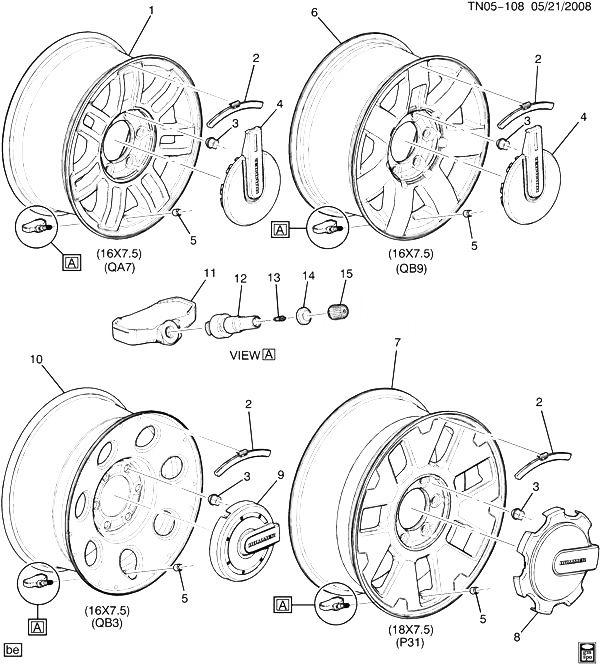

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
94731751 |
WHEEL, 16X7.5 SPA (STEEL) |
N155 (43) (QA7) |
2009-2010 |
01 |
| 001 |
09598062 |
WHEEL, 16X7.5 (SPARKLE SLVR) |
N1 (QA7) (EXC BRM) |
2009-2010 |
04 |
| 001 |
09598062 |
WHEEL, 16X7.5 SPA (SPARKLE SLVR) |
N1 (QA7) (EXC BRM) |
2009-2010 |
01 |
| 001 |
24300148 |
WHEEL, 16X7.5 |
N1 (QA7, BRM) (EXPORT) |
2009-2010 |
05 |
| 002 |
19209740 |
WEIGHT, WHL BAL (CLIP-ON REPLACEMENT) (TRIM AS REQUIRED) (WHL BAL) |
|
2009-2010 |
AR |
| 003 |
09594681 |
NUT, WHL (M12X1.5) |
N153 (06) (P31, QA7, QB9) |
2010-2010 |
24 |
| 003 |
09594683 |
NUT, WHL (M12X1.5) (STEEL) (EXTERNAL THREADS) |
N155 (43) (QA7, QB3, QB9) |
2010-2010 |
24 |
| 004 |
09597233 |
CAP, HUB (SPARKLE SILVER) (MAY REQUIRE TO REPLACE IN SETS TO MATCH APPEARANCE) |
N1 (QA7) |
2009-2010 |
04 |
| 004 |
09597265 |
CAP, HUB |
N1 (QB9) |
2009-2010 |
04 |
| 004 |
09598609 |
CAP, SPA WHL HUB |
N1 (QB9) (EXC P17) |
2009-2010 |
01 |
| 004 |
09597265 |
CAP, SPA WHL HUB |
N1 (P17, QB9) |
2009-2010 |
01 |
| 005 |
15122619 |
NUT, TIRE PRESS IND SEN |
N1 (EXC JK1) |
2009-2010 |
04 |
| 006 |
09595907 |
WHEEL, 16X7.5 (CHROME) |
N1 (QB9) |
2009-2010 |
04 |
| 006 |
94731751 |
WHEEL, 16X7.5 SPA (STEEL) |
N155 (43) (QB9) |
2009-2010 |
01 |
| 006 |
09595907 |
WHEEL, 16X7.5 SPA (CHROME) |
N1 (QB9) |
2009-2010 |
01 |
| 007 |
09598475 |
WHEEL, 18X7.5 |
N1 (P31) |
2009-2010 |
04 |
| 007 |
09598475 |
WHEEL, 18X7.5 SPA |
N1 (P31) |
2009-2010 |
01 |
| 008 |
09596474 |
CAP, HUB |
N153 (06) (HH3, P17) |
2009-2010 |
04 |
| 009 |
93357070 |
CAP, HUB |
N155 (43) (QB3) |
2009-2010 |
04 |
| 010 |
94731751 |
WHEEL, 16X7.5 (STEEL) |
N155 (43) (QB3) |
2009-2010 |
04 |
| 010 |
94731751 |
WHEEL, 16X7.5 SPA (STEEL) |
N155 (43) (QB3) |
2009-2010 |
01 |
| 010 |
09598240 |
WHEEL, 16X7.5 SPA |
N1 |
2009-2010 |
01 |
| 011 |
15122618 |
SENSOR, TIRE PRESS IND (INCLS 12-15) (ACDelco #15122618) |
N1 (EXC JK1) |
2009-2010 |
04 |
| 012 |
|
STEM, TIRE VLV (PART OF 11) |
|
2009-2010 |
|
| 013 |
25715244 |
VALVE, TIRE (PART OF 11) |
N1 (EXC JK1) |
2009-2010 |
04 |
| 014 |
25754190 |
GROMMET, TIRE VLV STEM (PART OF 11) |
N1 (EXC JK1) |
2009-2010 |
04 |
| 015 |
15122620 |
CAP, TIRE PRESS IND SEN (PART OF 11) |
N1 (EXC JK1) |
2009-2010 |
04 |
