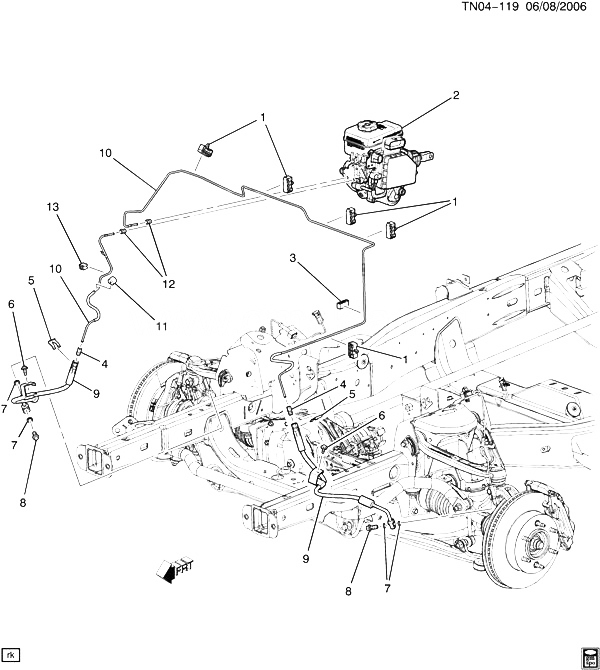

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15163617 |
CLIP, BRK PIPE (BLACK) (HOLDS (3)5.2 DIA LINES, FITS 9.1 HOLE IN 0.8 THK PNL, NYLON) |
N1 |
2007-2010 |
05 |
| 002 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1156) |
N153 (06) |
2008-2010 |
01 |
| 003 |
15103327 |
CLIP, BRK PIPE (HOLDS (3) BRAKE LINES) |
N1 |
2007-2010 |
01 |
| 004 |
15787533 |
NUT, FRT BRK PIPE (M10X1.0, 25.5) (FOR 3/16 NYGAL TUBING) |
N1 |
2007-2010 |
02 |
| 005 |
97162347 |
CLIP, BRK HOSE (28X27.5) (BRK FLEX HOSE CLIP) |
N1 |
2007-2010 |
02 |
| 006 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BRK HOSE BRKT) |
|
2007-2010 |
02 |
| 007 |
21012386 |
WASHER, FRT BRK HOSE (PART OF 9) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) |
N1 |
2007-2010 |
02 |
| 008 |
11569669 |
BOLT, FRT BRK HOSE (PART OF 9) (M10X1.5X23, 13THD) (BANJO) |
N1 |
2007-2010 |
02 |
| 009 |
22824124 |
HOSE, FRT BRK (INCLS 7, 8) (ACDelco #176-1746) |
N1 |
2007-2010 |
01 |
| 009 |
22824123 |
HOSE, FRT BRK (INCLS 7, 8) (ACDelco #176-1745) |
N1 |
2007-2010 |
01 |
| 010 |
88983905 |
PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) |
N1 |
2007-2010 |
AR |
| 011 |
25553759 |
INSULATOR, FRT BRK PIPE (20MM DIA, 15MM LONG) |
N1 |
2007-2010 |
01 |
| 012 |
15170399 |
NUT, FRT BRK PIPE (M10X1.0X16.3) |
N1 |
2007-2010 |
02 |
| 013 |
15163616 |
CLIP, BRK PIPE (HOLDS (1)5.1-5.28 LINE, PRONG FITS 7.1 HOLE IN .8 THK PNL) |
N1 |
2007-2010 |
01 |
