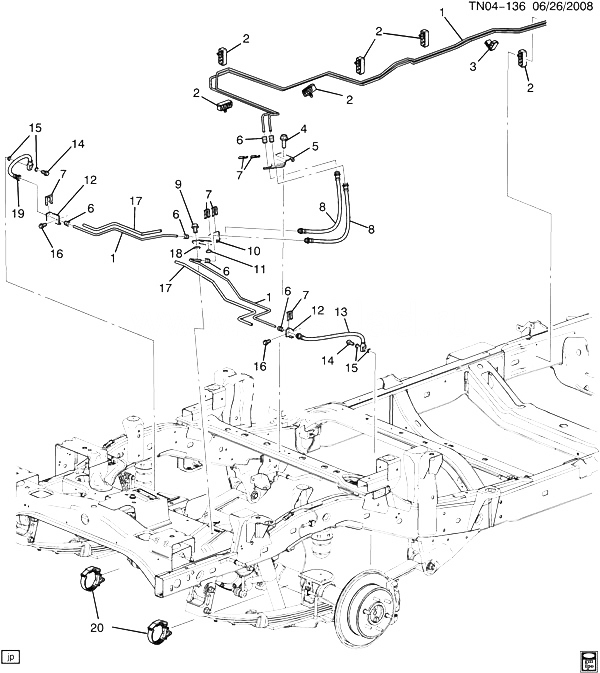

(TN04-136) 2009-2010 N1(43) ТОРМОЗНЫЕ МАГИСТРАЛИ/REAR PART 2 HUMMER - H3 SUV 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) N1 2009-2010 AR
002 15163622 CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK ; FUEL PIPE) 2009-2010 06
003 15170398 CLIP, BRK ; FUEL PIPE (HOLDS (2)9.5 ; (2)5.19 LINES) N1 2009-2010 01
003 15170398 CLIP, BRK ; FUEL PIPE (HOLDS (2)9.5 ; (2)5.19 LINES) (4.686) N1 2009-2010 01
004 11570082 BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082) 2009-2010 01
005 BRACKET, RR BRK INTER HOSE (PART OF 8) 2009-2010
006 15170399 NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0X16.3) N1 2009-2010 AR
007 11569742 RETAINER, RR BRK HOSE (PART OF 8) (28X25X4.7) (1 SIDED RETAINER) N155 (43) 2009-2010 02
008 94715839 HOSE, RR BRK (INCLS 5, 7, 9-11, 18) (AXLE JOUNCE INCLS RH ; LH HOSES, BRKTS, ; CLIPS) (ACDelco #176-1710) N155 (43) 2009-2010 01
009 BOLT, RR BRK HOSE BRKT (PART OF 8) 2009-2010
010 BRACKET, RR BRK INTER HOSE (PART OF 8) 2009-2010
011 BUMPER, RR BRK INTER HOSE BRKT (PART OF 8) 2009-2010
012 BRACKET, RR BRK HOSE (PART OF 13) 2009-2010
013 15869087 HOSE, RR BRK (INCLS 12, 14, 15) (@ CALIPER) (ACDelco #176-1468) N1 2009-2010 01
014 11569669 BOLT, RR BRK HOSE (PART OF 13, 19) (M10X1.5X23, 13THD) (BANJO) N1 2009-2010 02
015 21012386 WASHER, RR BRK HOSE (PART OF 13, 19) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) N1 2009-2010 02
016 11515928 BOLT, WEX W/CON WA (6X1X35) (PZOR 9.8) (RR BRK HOSE) 2009-2010 02
017 88964150 PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) N1 2009-2010 AR
018 GROMMET, BRK PIPE (PART OF 8) 2009-2010
019 15869088 HOSE, RR BRK (392MM LG) (INCLS 14, 15) (@ CALIPER) (ACDelco #176-1469) N155 (43) 2009-2010 01
019 88877854 HOSE, RR BRK (INCLS 14, 15) (DURASTOP) N155 (43) (LH9, LLR) 2010-2010 01
020 15234822 STRAP, RR BRK PIPE N1 2009-2010 02
